Description

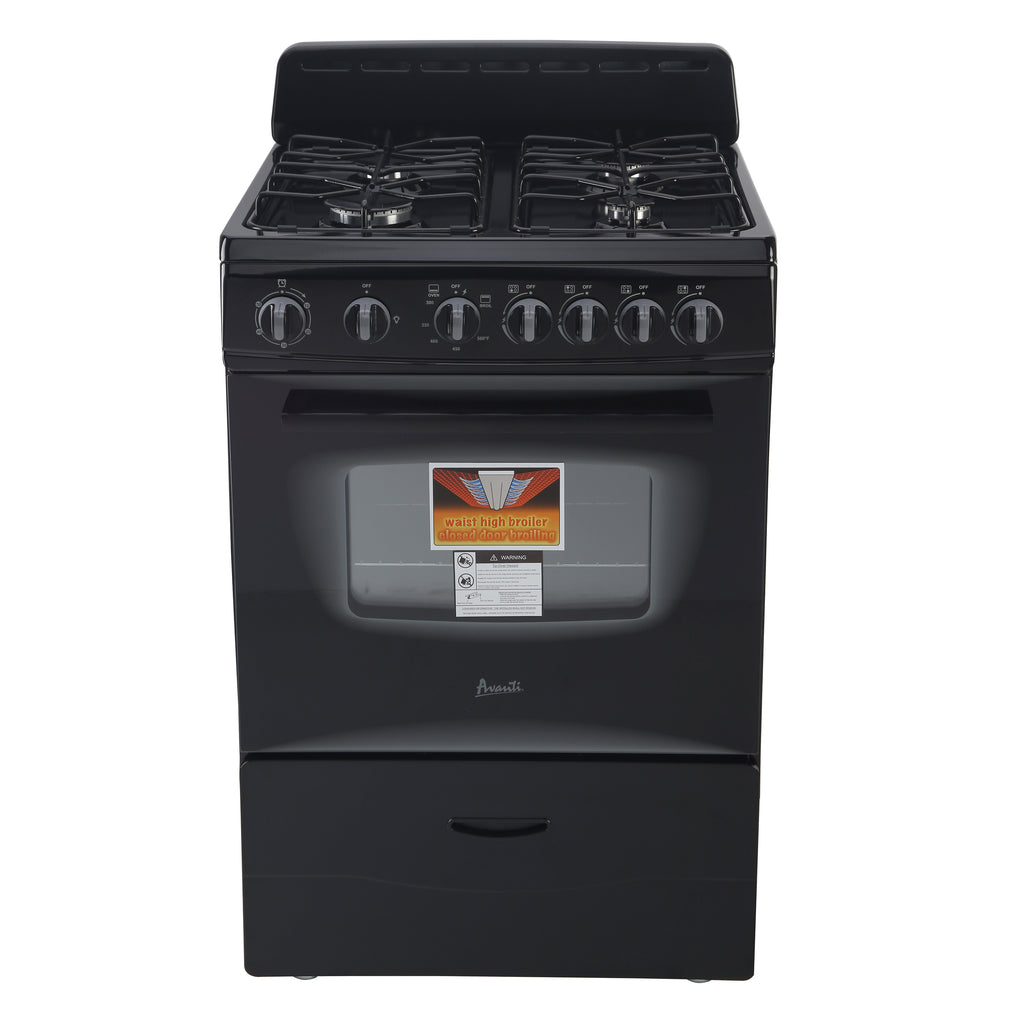

Save kitchen space with this compact range from Avanti. The perfect compact gas range for the office, studio apartment, RV, tiny home, condo, vacation home, or anywhere you need to save space in a small kitchen.
This 24-inch wide range features 4 sealed burners (1 rapid, 2 semi-rapid, and 1 simmer). The oven has a storage drawer at the bottom and a broiler that comes with a broiling pan.
Features
- 2.6 cu. ft. capacity
- 24 inch freestanding gas range
- 4 sealed burners (1 rapid, 2 semi rapid and 1 simmer)
- Automatic electronic ignition
- 2 oven racks and storage drawer
- Glass oven door
- Full range temperature control
- Oven light with ON/OFF switch
- 60-minute timer
- Backsplash with integrated oven vents for proper air circulation
- LP conversion kit
- ADA compliant
- Covered by Avanti's 1-Year Manufacturer Limited Warranty
- Designed for free-standing installation only
Spec Sheet
Specifications
- Amperage: 15A
- Assembled Dimensions (LxWxH): 25" x 23.50" x 40.75"
- Assembled Weight (lb): 104.0
- Assembly Required: No
- Batteries Required: No
- BTU Output: 8000
- Capacity: 2.6 cu. ft.
- Cleaning Feature: Manual
- Color: Black
- Control Type: Mechanical
- Convection Cooking: No
- Cooking Surface Area: Grate
- Cooking Surface Material: Cast Iron
- Cord Length: 72"
- Cutout Depth - Front to Back: 23.75
- Cutout Height - Top to Bottom: 36
- Cutout Width - Side to Side: 24
- Depth - Door Open 90°: 48.50"
- Door Color/Finish: Clear
- Door Material: Glass
- Door Swing Orientation: Drop-Down
- Electric: Yes
- Gas Type: Natural Gas
- Ignition Type: Electrical
- Included Components: Propane (LP) Conversion Kit
- Installation Type: Built-In
- Integrated Lock: No
- Interior Depth: 17.75
- Interior Width: 18.25
- Interior Height: 14.12
- Material: Metal, Glass
- Number of Burners: 4.0
- Number of Doors: 1.0
- Number of Drawers: 1.0
- Number of Racks: 2.0
- Plug Type: B
- Size: 24"
- Temperature Options: Bake, Broil
- Temperature Range: 300°-500°
- Timer: Yes
- Voltage: 120V
- Warming Center: No
- Warranty: 1 Year Limited Warranty
- Wattage: 1650W
- Case Pack Dimensions: 26" x 25.50" x 39.75"
- Case Pack Weight: 117.0
- Case Quantity: 1.0
- Master Carton Weight: 117.0
- Pallet Dimensions: 48" x 40" x 39.75"
- Pallet Ti/Hi: 1
- Pallet Quantity: 1.0
- Country of Origin: CHINA
- Freight Class: 175.0
- Usually Ships In: 7-10 Days
- Number of Boxes: 1.0
- Packaging Type: BROWN BOX
- Ship Type: LTL
- Shipped Assembled?: Yes
- Tariff Code (HTS): 7321.11.3010
- ADA Compliant: Yes
- Certifications: ADA Compliant
- ETL Listed: Yes
