Description

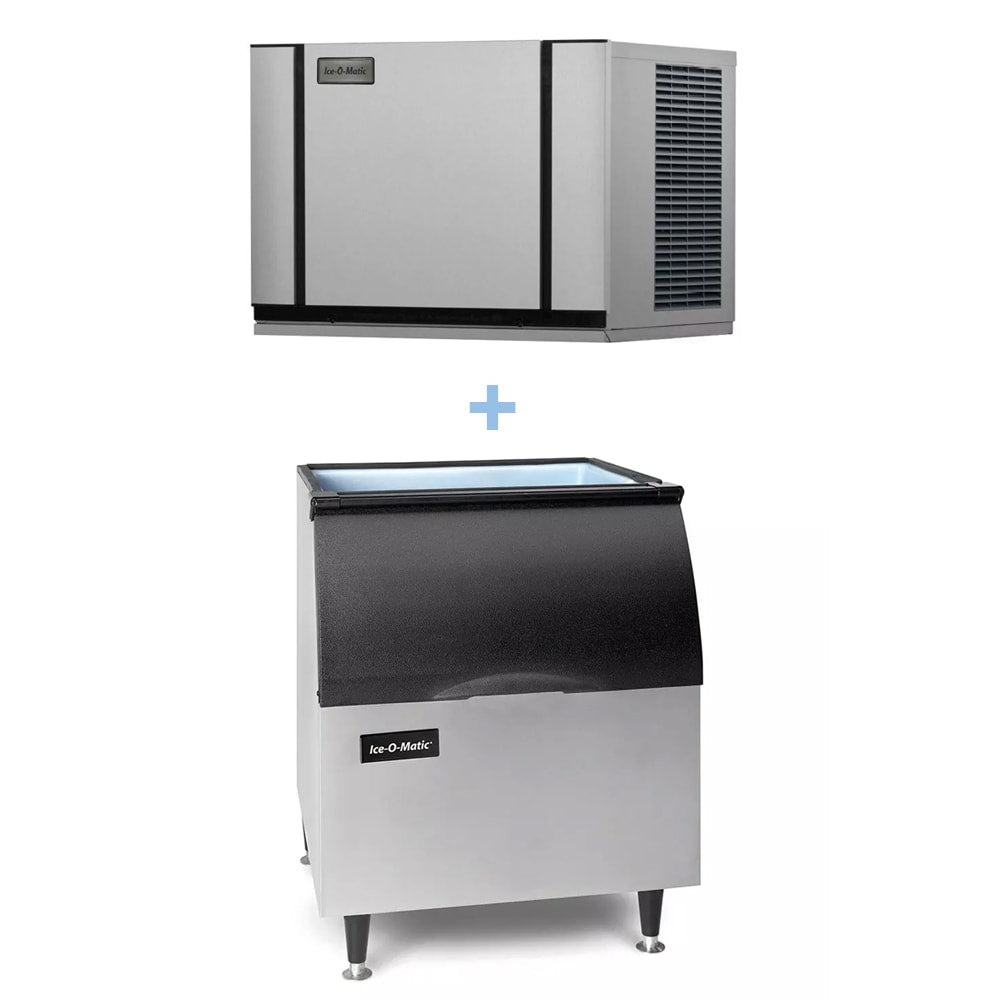

Ice-O-Matic CIM0430HA/B40PS Description
For use when needed, the Ice-O-Matic CIM0430HA/B40PS half-cube ice maker with bin accommodates 344 pounds of stored ice, and makes from 320 to 435 pounds of ice per day. Preventing ice from melting, it's insulated with foam, and to prevent corrosion, the bin has a polyethylene liner. The exterior is made of durable and rust-resistant aluminum, and it's positioned on 6-inch legs that can be adjusted for stabilization on uneven floors.
The Ice-O-Matic CIM0430HA/B40PS ice maker with bin self-sanitizes and descales with the push of a button, and to inhibit the growth of bacteria, it includes PURE ICE® antimicrobial protection. Made of plastic, the food zone streamlines cleaning, and its components can be removed and washed in a dishmachine. Easing installation, the condenser is air cooled and self-contained.
Ice Maker Details
- Part of the Elevation Series™
- 435-lb. daily ice production
- 320-lb. AHRI daily ice production at 70-90 degrees F
- Makes half-size cubes
- Half-size cube size: 3⁄8 in. W x 7⁄8 in. D x 7⁄8 in. H
- Self-contained, air-cooled condenser
- 1-touch sanitizing and descaling
- PURE ICE® antimicrobial protection
- LED display provides status updates
- Food zone constructed of plastic
- Removable food zone parts are dishwasher safe
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 5,100-BTU heat transfer capacity
Ice Bin Details
- 344-lb. application capacity
- Top-hinged front door is sloped to ease access
- Polyethylene interior liner resists corrosion
- Durable aluminum exterior
- Foam insulation slows melting
- Adjustable 6-in. legs
Dimensions & Utilities
- Ice maker dimensions: 30.25 in. W x 24.25 in. D x 21.25 in. H
- Ice bin dimensions: 30 in. W x 31 in. D x 37.5 in. H
- 11 A, 5.43 kW
- 115 V/60 Hz/1 ph
