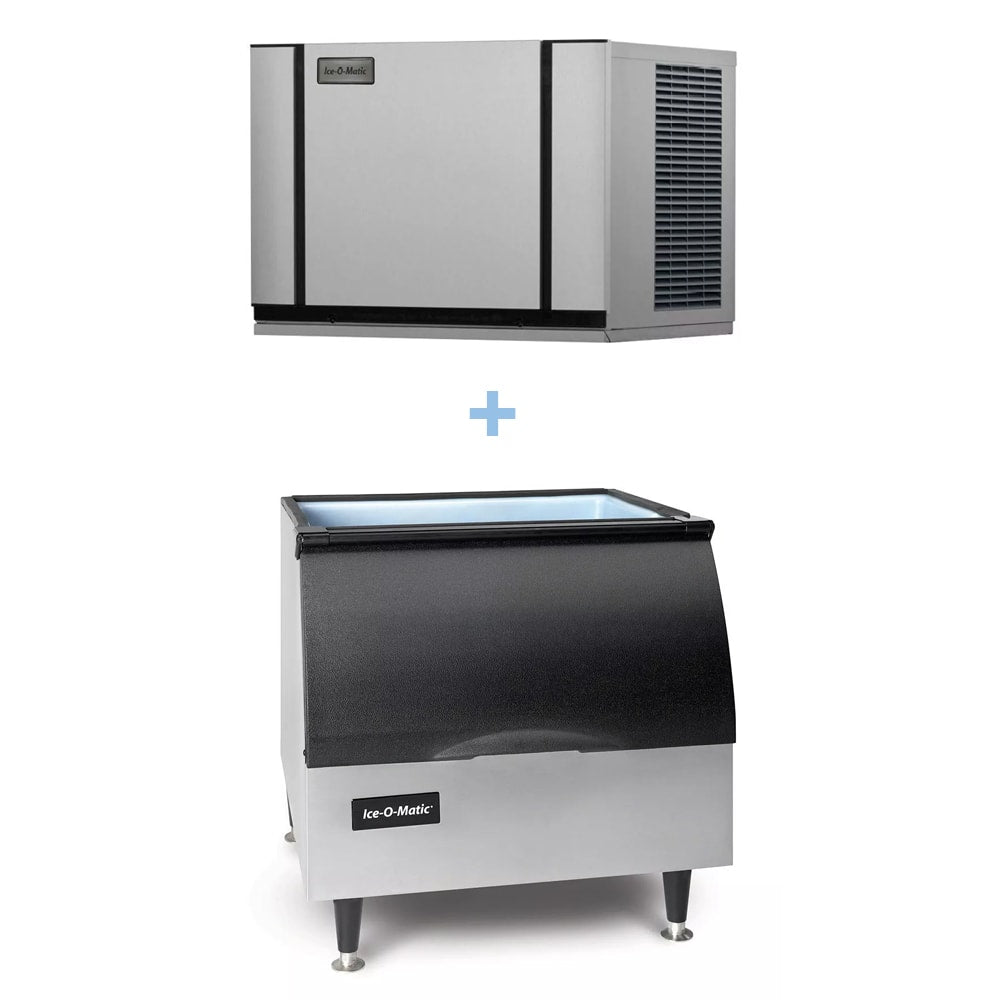

Ice-O-Matic - CIM0530HA/B25PP Commercial 561 lb Half Cube Ice Maker w/ Bin - 242 lb Storage, Air Cooled, 115v

Standing on 6-inch legs, the Ice-O-Matic CIM0530HA/B25PP ice maker's storage bin can be adjusted to ensure the unit remains level as it operates. The bin holds as much as 242 pounds of prepared ice at a time, and the ice maker head can produce 520 pounds of ice each day in ideal conditions. Useful in locations that serve high volumes of beverages, the half-cube ice produced by this unit is good for chilling drinks and blending into smoothies or frozen drinks such as margaritas.

The Ice-O-Matic CIM0530HA/B25PP ice machine head with bin is designed to reduce employee labor during operation. Its LED display makes it possible for employees to monitor the machine at a glance; its LED smart light notifies users when cleaning is required. During routine maintenance, users can remove the snap-in interior components and run them through a commercial dishmachine for cleaning. To promote sanitary use and prevent the spread of germs, the ice machine head is treated with antimicrobial protection.

Ice Maker Details

• Part of the Elevation Series™
• 520-lb. maximum daily ice production
• 390-lb. AHRI-certified ice production
• Half-size ice cubes
• Cube dimensions: ³⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Air cooled
• Self-contained condenser streamlines installation and operation
• Hot air is exhausted from top and side for improved efficiency
• Plastic foodzone has no small cracks to trap microbes
• BPA-free, removable components are warewasher safe for simple cleaning
• Enhanced with PURE ICE® antimicrobial protection to reduce bacterial growth
• 1-touch, operable sanitizing and descaling processes
• Smart LED light communicates cleaning status
• LED display enhances visibility
• Universal control board with Smart Harness™ to configure multiple machines quickly
• Includes recyclable parts
• Ideal ambient temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal water pressure: 20-80 PSIG
• 6,252-BTU heat transfer capacity

Ice Bin Details

• 242-lb. capacity
• Rotocast aluminum exterior is lightweight and corrosion resistant
• Polyethylene interior liner insulated with foam
• Top-hinged, slope front access door
• Rests on 6-inch adjustable legs
• Multiple bin top sizes are available and sold separately

Dimensions & Utilities

• Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
• Bin: 30 in. W x 31 in. D x 28 in. H
• 17.8 A, 5.87 kW
• 115 V/60 Hz/1 ph
• Ice maker potable water inlet: ³⁄₈-in. FPT
• Ice maker water outlet: ³⁄₄-in. FPT
• Electrical connection port: ⁷⁄₈-in. dia.
• Electrical connection junction box: ⁷⁄₈-in. dia.
