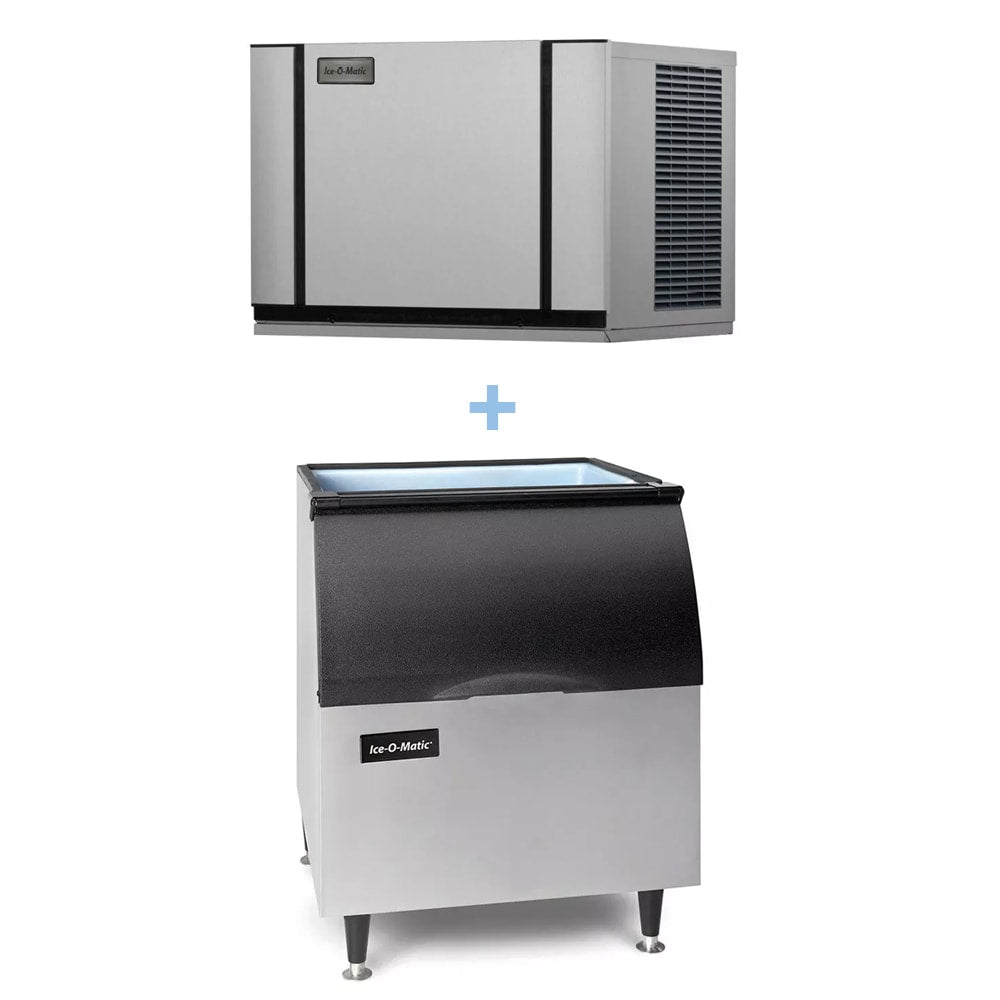

Ice-O-Matic - CIM0530HA/B40PS Commercial 561 lb Half Cube Ice Maker w/ Bin - 344 lb Storage, Air Cooled, 115v

The Ice-O-Matic CIM0530HA/B40PS ice machine and bin features an interior foodzone made of smooth plastic that doesn't harbor bacterial residue. For streamlined cleaning, users can remove interior components and wash them in a dishmachine, and one-touch controls activate the unit's descaling and sanitizing procedures. Resisting the spread of germs, an antimicrobial treatment is applied to the ice machine, preventing the growth of mold and mildew.

The Ice-O-Matic CIM0530HA/B40PS ice maker and bin set can produce 520 pounds of half-cube ice in a 24-hour period if ideal conditions are met. Half-cube ice has many applications, including chilling drinks, such as soda or tea, or blending into smoothies. Able to store 344 pounds of prepared ice, the bin is lined with foam-insulated polyethylene to prevent ice from melting before it's served.

Ice Maker Details

• Part of the Elevation Series™
• 520-lb. maximum daily ice production
• 390-lb. AHRI-certified ice production
• Half-size ice cubes
• Cube dimensions: ³⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Air cooled
• Condenser is self-contained for compact use
• Improved efficiency with dual exhaust system
• Plastic foodzone eliminates small spaces where bacteria can hide
• BPA-free components can be removed and washed in the dishmachine
• Treated with PURE ICE® antimicrobial enhancement to avoid cross contamination
• 1-touch sanitizing and descaling feature
• Users are alerted by smart LED light when cleaning is needed
• LED display
• Universal control board with Smart Harness™ simplifies configuration
• Some parts are recyclable
• Ideal ambient temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal water pressure: 20-80 PSIG
• 6,252-BTU heat transfer capacity

Ice Bin Details

• 344-lb. capacity
• Rotocast aluminum exterior for enhanced corrosion resistance
• Foam-insulated polyethylene interior liner keeps contents chilled
• Top-hinged, slope front access door
• Adjustable, 6-in. legs
• Multiple bin top sizes are available and sold separately

Dimensions & Utilities

• Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
• Bin: 30 in. W x 31 in. D x 37¹⁄₂ in. H
• 17.8 A, 5.87 kW
• 115 V/60 Hz/1 ph
• Ice maker potable water inlet: ³⁄₈-in. FPT
• Ice maker water outlet: ³⁄₄-in. FPT
• Electrical connection port: ⁷⁄₈-in. dia.
• Electrical connection junction box: ⁷⁄₈-in. dia.
