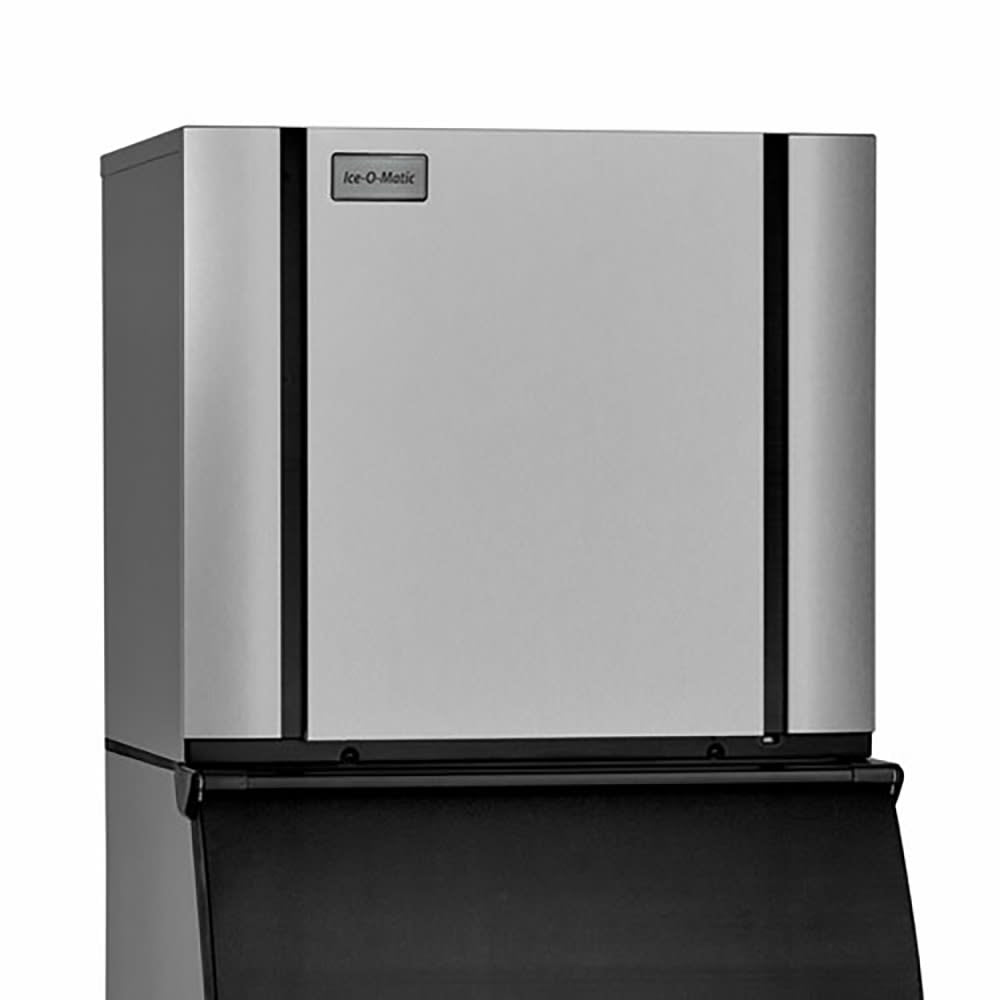

Ice-O-Matic CIM1136HW Description
Suitable for high-volume operations, the Ice-O-Matic CIM1136H half-cube ice maker can produce a maximum of 968 pounds of ice per day in ideal environmental conditions. It produces half-size cubes, a type that is ideal for chilling sodas, cocktails, iced tea, and lemonade. To inhibit the growth of unsanitary mold, mildew, and bacteria, it’s protected with antimicrobial PURE ICE®. Because this unit’s condenser is self-contained, it’s quick and simple to install.
The Ice-O-Matic CIM1136H ice machine head utilizes a dual-exhaust system to discharge air from the top and the side, enabling installation flexibility and reducing the risk of obstruction. One-touch controls for sanitizing and descaling simplify cleaning, and an LED display facilitates constant monitoring. This unit is water cooled and uses R404A refrigerant.
Product Details
- Part of the Elevation Series™
- 968-lb. maximum daily ice production
- 855-lb. AHRI daily ice production
- Makes half-size cubes
- Cube size: 3⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Water cooled
- Self-contained condenser
- PURE ICE protection inhibits microbial growth
- Dual-exhaust system discharges air from side and top to enable increased installation possibilities
- Unit descales and sanitizes with 1 touch
- LED status display
- Dishwasher-safe components in plastic food zone simplify cleaning
- Uses R404A refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 18,200-BTU heat transfer capacity
Dimensions & Utilities
- 30.25 in. W x 24.25 in. D x 26.90 in. H
- 11.8 A, 4.1 kW
- 208-230 V/60 Hz/1 ph
