Description

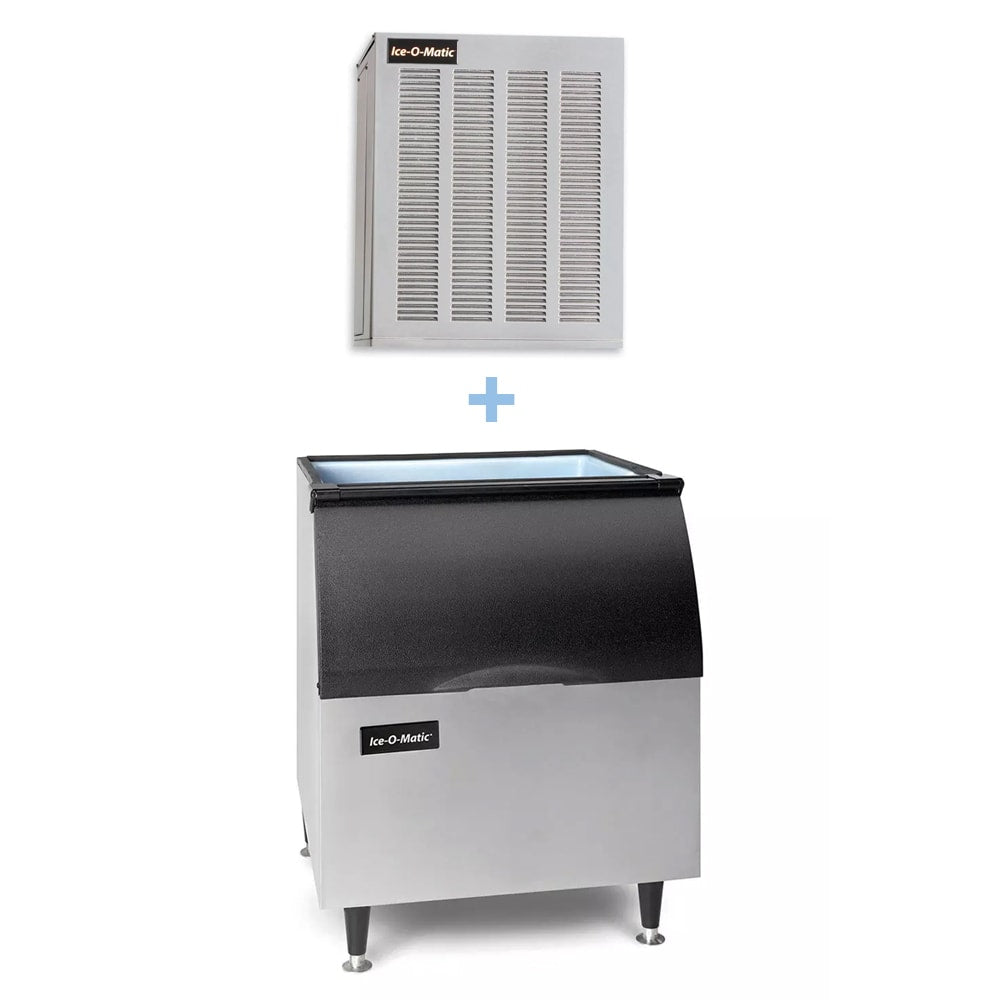

Ice-O-Matic MFI0500A/B40PS Description
An air-cooled unit, the Ice-O-Matic MFI0500A/B40PS ice maker/bin combo features a self-contained condenser to expedite installation. Its auger and evaporator are both made of stainless steel to provide durability and corrosion resistance. A sensor monitors water levels and prevents damage caused by operation with insufficient amounts. This unit produces fast-melting flake ice—a good choice for blending into smoothies or serving to patients in care facilities.
The interior of the Ice-O-Matic MFI0500A/B40PS ice machine’s accompanying bin is lined with polyethylene, which won’t harbor bacteria or debris, ensuring ice remains fresh and free of dust. It has a capacity of 344 pounds and is supported with 6-inch legs. The exterior is made of corrosion-resistant aluminum and fitted with a top-hinged, sloped front door.
Ice Maker Details
- 540-lb. maximum daily ice production
- Makes flake-style ice
- Status of gearbox monitored with SystemSafe
- Stainless steel exterior finish
- Air-cooled, self-contained condenser
- Industrial-grade roller bearings and heavy-duty gearbox support heavy use
- Water sensor prevents damage due to insufficient water levels
- Auger and evaporator made of long-lasting stainless steel
- Uses R404A refrigerant
- Ideal incoming water pressure: 20-120 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 5,600-BTU heat transfer capacity
Ice Bin Details
- 344-lb. application capacity
- Foam insulation slows melting ice
- Sloped, top-hinged front door
- Corrosion-resistant aluminum exterior
- Interior lined with sanitary polyethylene
- 6-in. legs
Dimensions & Utilities
- Ice maker: 21 in. W x 24 in. D x 27 in. H
- Ice bin: 30 in. W x 31 in. D x 37.5 in. H
- 16 A, 4.5 kW
- 115 V/60 Hz/1 ph
