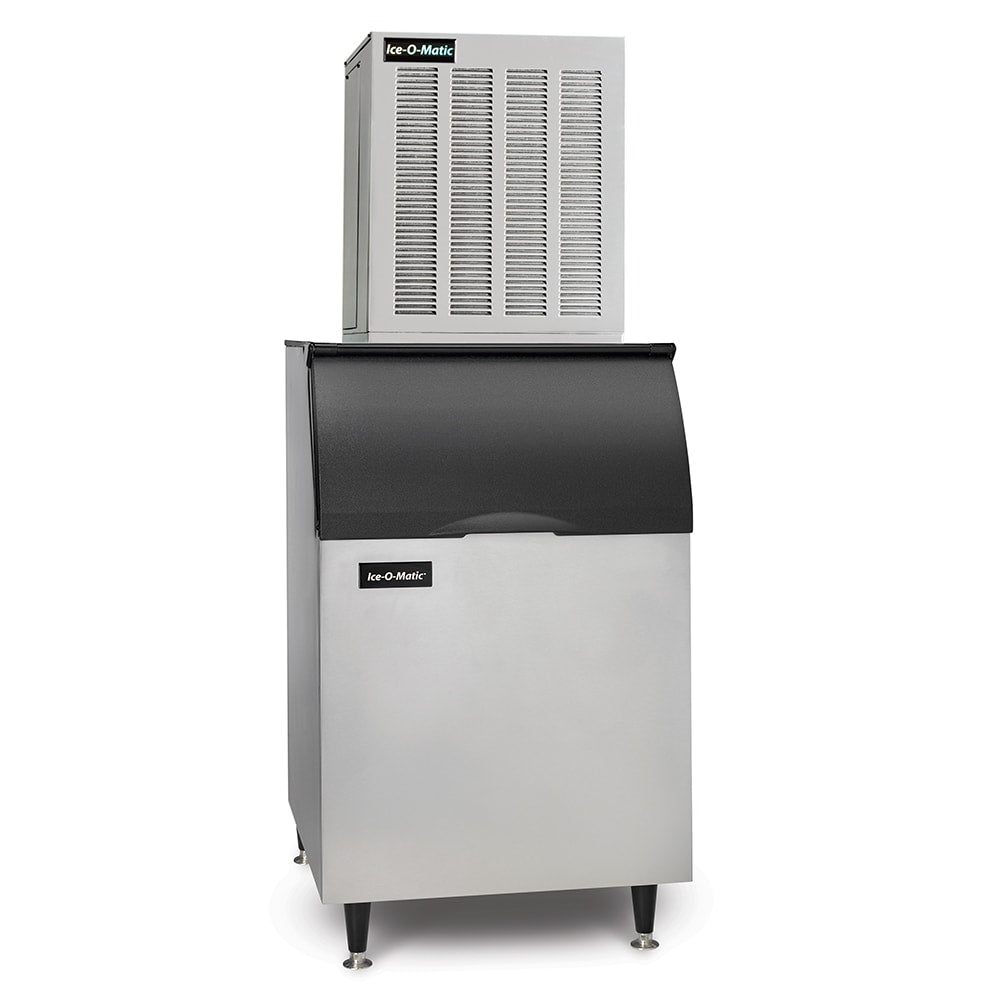

Ice-O-Matic MFI0500A/B55PS Description
The Ice-O-Matic MFI0500A/B55PS ice maker with bin features a heavy-duty gearbox with industrial-grade roller bearings that can withstand years of recurrent use. Its water sensor and SystemSafe monitoring reduce the risk of damage that could lead to costly repairs, and its condenser is self-contained to streamline the installation process. With a maximum rate of 540 pound per day, this unit produces flake-style ice that’s ideal for blending into smoothies or frozen cocktails.
The Ice-O-Matic MFI0500A/B55PS ice machine’s accompanying bin can accommodate as much as 510 pounds of ice, which users can access through a top-hinged, sloped front door. Its interior is lined with sanitary polyethylene, and its aluminum exterior provides excellent resistance against corrosion. This unit is supported on sturdy 6-inch legs.
Ice Maker Details
- 540-lb. maximum daily ice production
- Makes flake ice
- SystemSafe preemptively shuts down system before problem occurs
- Stainless steel exterior finish
- Stainless steel auger and evaporator
- Air cooled
- Heavy-duty gearbox and industrial-grade roller bearings withstand repeated use
- Water sensor reduces risk of damage from low water
- Self-contained condenser
- Cools with R404A refrigerant
- Ideal incoming water pressure: 20-120 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 5,600-BTU heat transfer capacity
Ice Bin Details
- 510-lb. application capacity
- Sloped, top-hinged front door
- Sturdy aluminum exterior
- Insulated with foam to preserve ice
- Interior lined with easy-to-clean polyethylene
- 6-in. legs
Dimensions & Utilities
- Ice maker: 21 in. W x 24 in. D x 27 in. H
- Ice bin: 30 in. W x 31 in. D x 50 in. H
- 16 A, 4.5 kW
- 115 V/60 Hz/1 ph
