Description

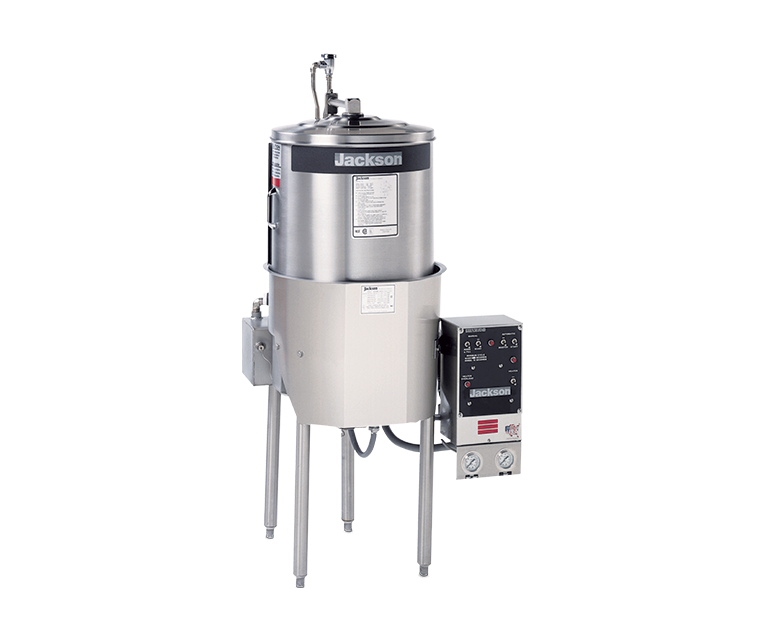

Model 10 Round Door-Type
Jackson has been manufacturing the Model 10 for over 80 years. Counter-rotating wash arms and round design provide superior wash action. Standard features are an external vacuum breaker, electric wash tank heat and an incoming water pressure regulator.
Model 10AB
All the standard features as the Model 10A, plus a 6.5kW built-in booster heater that raises incoming water 40° F (4° C) and is thermostatically controlled.
Model 10APRB
All the standard features as the Model 10AB, plus a ½ HP pump to ensure proper flow pressure. The Model APRB’s designed for areas with low and/or fluctuating water pressure; recommended for facilities on well-water systems and anywhere flow pressure is below 15 psi.
WIDTH
35.5"
DEPTH
24.25"
HEIGHT
58.25"
WEIGHT
200 LB
CLEARANCE
17.25"
- Low cost for complete installation - unit and tables
- Exclusive counter-rotating wash arms and round design provide superior wash action
- Cleans up to 45 racks per hour
- Fully automatic
- Table-height loading
- Electric wash tank heat with low water protection
- External vacuum breaker
- Built-in pressure regulator comes standard
- Model 10AB: All the same standard features as the Model 10A, plus a 6.5kW built-in booster heater.
- Booster heater raises incoming water 40° F (60° C) and is thermostatically controlled to maintain proper sanitizing temperature
- Model 10APRB: All the standard features as the Model 10AB, plus a ½ HP pump to ensure proper flow pressure during the rinse cycle. The Model APRB is designed for areas with low and/or fluctuating water pressure and is highly recommended for facilities on well-water systems and anywhere flow pressure is below 15 psi.
