Description

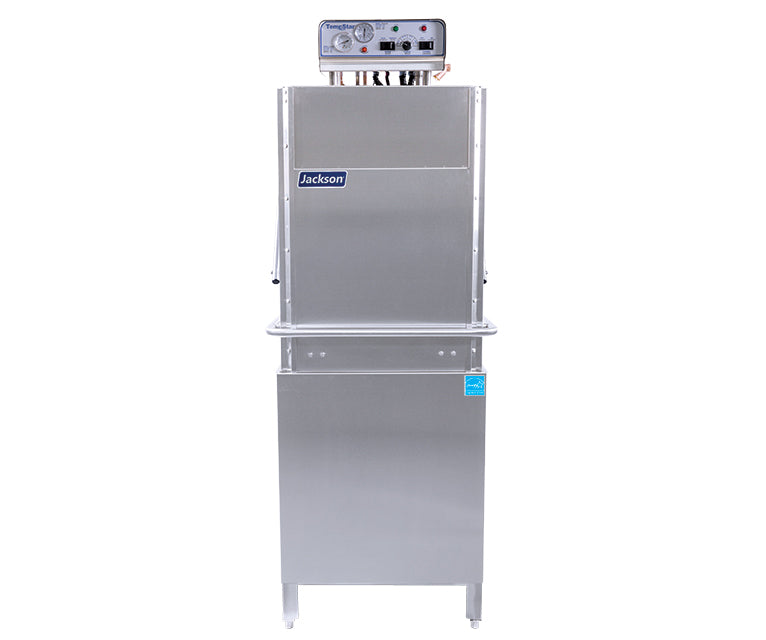

TempStar® HH-E
The versatile TempStar® HH-E high hood dishmachine has the dual functionality of a dishwasher and a pot & pan washer. Exclusive Sani-Sure™ final rinse system ensures proper sanitation is achieved in every fully automatic 60-second cycle. Its 27” clearance easily accommodates large sheet pans and 60-quart bowls. Plus, a built-in 70 °F -rise booster heater is standard!
- High temp, electric tank heat
- Dual rated as a dishwasher and a pot, pan & utensil washer to NAS/ANSI3 standards
- Cleans 60 racks per hour
- Only 0.72 gallons of water per rack
- ENERGY STAR® certified
WIDTH
28.625"
DEPTH
34.38"
HEIGHT
76.38"
WEIGHT
393 LB
CLEARANCE
27"
- High temperature sanitizing door-type dishmachine
- Higher hood, single rack with dual functionality - serves as
a dishwasher and a pot & pan washer - Cleans 60 (55)* racks per hour, using only 0.72 gallons of water per rack
- Built-in booster with Sani-Sure™ final rinse system ensures
proper sanitation is achieved every cycle - Built-in 70 °F (21 °C) rise booster heater is standard; 40 °F (4 °C) rise
booster heater is available but must be specified at time of order - Fully automatic 60-second cycle
- Four selectable time cycles for warewashing flexibility and performance
- 27" clearance accommodates large sheet pans and 60 qt mixing bowls
- Exclusive dual counter-rotating lower wash arms
- Auto-fill/auto-start
- Specially designed stainless steel nozzles provide superior cleaning action
- Telescoping doors stay open for ease of loading and unloading machine
- Self-draining stainless steel pump (no cast iron or plastics) ensures no
detergent carryover between wash and rinse cycles - Low watt density electric wash tank heater
- Hi-limit thermostat and low water protection
- Large scrap tray
- Uses standard 20" x 20" (508 mm x 508 mm) racks
- Door switch
- Delime/manual wash switch
- Exhaust vent fan control
- Field convertible for straight-through to corner and vice versa (kit required)
- Front stainless steel dress panel
- Efficient 2 HP wash pump motor
- Durable stainless steel construction
- Adjustable bullet feet
- 1-year parts and labor warranty
