Description

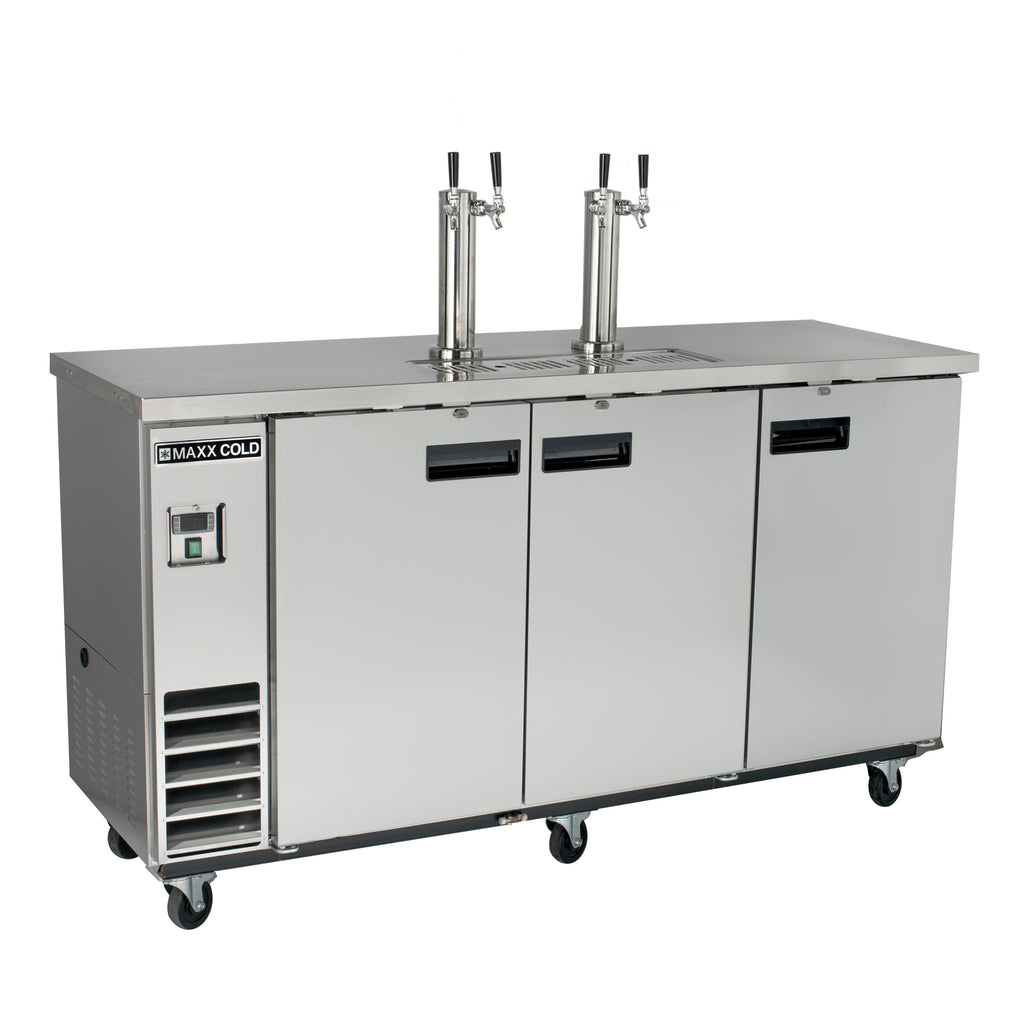

This 73-inch-wide Maxx Cold X-Series Beer Tower Dispenser is engineered for durable usage, efficient performance, and easy cleaning. It accommodates 3 barrel/keg, providing up to 17.3 cubic feet (490L) of storage capacity. This beer tower is equipped with two 3” (77mm) diameter stainless steel insulated beer tower dispensers which can accommodate for two different liquids. This tower beer dispenser is ideal for pubs, bars, breweries, catering services, banquet halls or special events and parties requiring a draft brew. The exterior of the unit is constructed of durable and easy to clean stainless-steel, while the interior of the cabinet is crafted in sanitary white coated steel paired with a stainless floorplate. This unit is fully insulated with 2” (50 mm) CFC-free polyurethane on both walls and doors. The standard 3-inch (77 mm) polished stainless-steel draft tower dispensers, which are mounted to the top center counter, are cooled by continuous cold air circulation to maintain tap temperature that reduces foam when dispensing and can easily fill pint beer glasses, frosted beer mugs and pitchers. Premium features on this model include a self-contained forced air refrigeration system which cools the base cabinet and tower to optimize temperature throughout your commercial operations. The solid-state digital control system is designed with LED temperature display. This beer tower dispenser is engineered to facilitate maintenance and maneuvering by the operator, with an easy to clean slide-out condensing unit, recessed drawer handles (with locks) and four (4) swivel casters (two of which come with brakes). The dispenser is equipped with integrated condensate evaporator, meaning no drain line connection is needed. Operation requires CO2 tank and regulator (not included).
Features
- Accommodates 3 barrels/kegs with storage capacity of 17.3 cubic feet (490L)
- Two 3” (77mm) diameter polished stainless steel insulated beer tower dispenses four different liquids
- Interior is constructed of sanitary white coated steel with a stainless floorplate
- Exterior and top is constructed of stainless steel to prevent damage
- 2” (50mm) CFC-free polyurethane insulated walls and doors
- Self-contained forced air refrigeration system cools the base cabinet and tower
- Slide out condensing unit for easy maintenance
- Epoxy coated evaporator coils to resist corrosion
- Easy to grip recessed drawer handles with locks
- Adjustable heavy duty wire shelves (2 per section/door)
- Six 4” casters included, two (2) with brakes (Smaller casters available for ADA Compliance)
- Holding temperature of 34°F and 41°F (1⁰C to 5⁰C)
- Environmentally friendly R134A refrigerant
- Available in 120V/60Hz/1pH and International voltage options
Spec Sheet
Specifications
- Adjustable Shelves: No
- Adjustable Temperature Control: Yes
- Amperage: 3A
- Assembled Dimensions (LxWxH): 24.40" x 73.07" x 55.98"
- Assembled Weight (lb): 351.0
- Assembly Required: Yes
- Batteries Required: No
- Capacity: 3 Kegs
- Caster Size: 4"
- Casters: Yes
- Color: Stainless Steel
- Control Type: Digital
- Cooling System: Compressor
- Cord Length: 72"
- Cordless: No
- Defrost System Type: Automatic / Frost Free
- Depth - Door Open 90°: 43"
- Depth - Excluding Door: 29.90"
- Depth - Excluding Handles: 29.90"
- Dishwasher Safe Components: Yes
- Door Color/Finish: Stainless Steel
- Door Material: Stainless Steel
- Door Swing Orientation: French-Door
- Electric: Yes
- Features: Maxx Cold X-Series Keg Cooler with Dual Towers & Dual Faucets, three-section, self-contained side mounted compressor, 73"W, 17.3 cu. ft., (3) keg capacity, solid-state controls, 33° to 41°F temperature range, LED display, integrated condensate evaporator, (3) solid hinged locking doors, stainless steel top, (2) 3" dia. stainless steel draft towers, each with (2) faucets, stainless steel exterior, white powder coated steel interior with stainless steel floor plate, R290a Hydrocarbon refrigerant, cETLus, ETL-Sanitation
- First Zone Maximum Temperature: 41°
- First Zone Minimum Temperature: 33°
- Freezer Type: No Freezer
- Ice Maker Included: No
- Included Components: Refrigerator, Instruction Manual, Casters
- Installation Type: Freestanding
- Integrated Lock: Yes
- Material: Stainless Steel
- Number of Doors: 3.0
- Number of Items: 1.0
- Outdoor Use: No
- Plug Type: NEMA 5-15P
- Portable: No
- Refrigerant Type: R-290a
- Size: 73"
- Temperature Range: 33° - 41°
- Temperature Zones: 1.0
- Undercounter: No
- Use and Care Instructions: Clean using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. When cleaning the exterior, always rub with the "grain" of the stainless steel to avoid marring the finish.
- Voltage: 120V
- Volume Capacity: 490L
- Warranty: 1 Year Parts & Labor + 5 Year Compressor (Part Only)
- Water Dispenser: No
- Wattage: 360W
- Case Pack Dimensions: 84" x 40" x 31"
- Case Pack Weight: 373.0
- Case Quantity: 1.0
- Country of Origin: China
- Freight Class: 150.0
- Usually Ships In: 7-10 Days
- Number of Boxes: 1.0
- Packaging Type: BROWN BOX
- Ship Type: LTL
- Shipped Assembled?: No
- Tariff Code (HTS): 8418.69.0130
- ADA Compliant: No
- BPA Free: No
- cETL Listed: Yes
- CSA Certified: No
- cUL Listed: No
- Energy Star: No
- ETL Listed: Yes
