Description

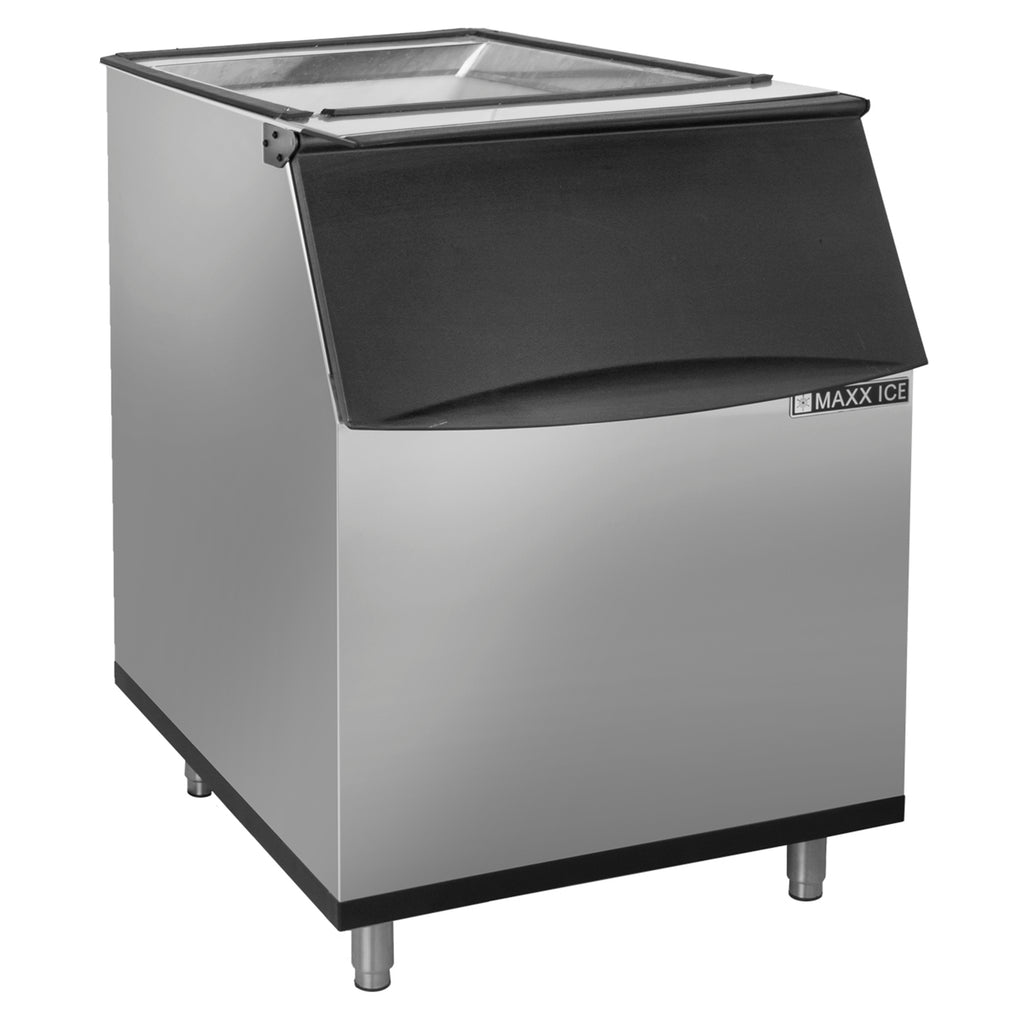

Maxx Ice MIB580N stainless steel exterior with black trim door is corrosion resistant and easy to clean. When access door is open the bin interior is illuminated by an LED light powered by the ice machine head. The interior polyethylene bin liner improves sanitation and enhances the clarity of the ice. Maxx Ice Ice Storage Bin is constructed of non-CFC polyurethane foamed in-place insulation that retains cold air, keeping the ice from melting quickly, and reduces condensation from developing. The stainless steel door is easy to grip and open to scoop and extract ice. The ice scoop and holder are above the ice line for easy access and improved sanitation. The Maxx Ice MIB580N has storage capacity from 400 lbs (181 kg) to 580 lbs (263 kg) of ice and a ¾ inch gravity drain is required when installing. Overall measurements are 30 in. W x 34 in. D x 50 in. H with 6 inch legs. The storage bin will accommodate most 30 inch wide ice machines and is NSF approved.
Features
- Ice storage capacity from 400 lbs (181 kg) to 580 lbs (263 kg) of ice
- Exterior is constructed of durable stainless steel and is easy to clean and corrosion resistant
- When opening the black trim door the bin interior is illuminated by an LED light powered by the ice machine head
- Polyethylene bin liner provides sanitary storage
- Constructed of non-CFC polyurethane foamed in-place insulation retains cold air, keeping ice from melting quickly and reduces condensation from developing
- Four 6" inch (152 mm) adjustable stainless steel legs
- 3/4" gravity drain is required when installing
- All stainless steel door is easy to grip and open to scoop and extract ice from bin
- Compatible with Maxx Ice modular ice machines and most 30" wide ice machines
- Adapter plates available
- NSF approved
Spec Sheet
Specifications
- Adjustable Shelves: No
- Adjustable Temperature Control: No
- Anti-Vibration Technology: No
- Assembled Dimensions (LxWxH): 34" x 30" x 50"
- Assembled Weight (lb): 134.0
- Assembly Required: No
- Batteries Required: No
- Capacity: 580 lbs
- Casters: No
- Color: Stainless Steel/Black
- Cord Length: 80"
- Cordless: No
- Defrost System Type: No Defrost
- Depth - Door Open 90°: 34"
- Depth - Excluding Door: 34"
- Depth - Excluding Handles: 34"
- Dishwasher Safe Components: Yes
- Door Color/Finish: Black
- Door Material: Plastic
- Door Swing Orientation: Lift Up/Slide
- Electric: No
- Features: Maxx Ice Ice Storage Bin, 580 lbs. ice storage capacity, for top-mounted ice maker, sloped front, top hinged access door, interior LED lighting, polyurethane foam insulation, black plastic lid, stainless steel exterior, 6" legs, NSF
- Filter Included: No
- Height - Excluding Top Hinge: 44"
- Ice Maker Included: No
- Included Components: Ice Scoop, connecting bracket, manual
- Installation Type: Freestanding
- Integrated Lock: No
- Material: Stainless Steel
- Number of Doors: 1.0
- Number of Items: 1.0
- Outdoor Use: No
- Plug Type: NEMA 5-15P
- Portable: No
- Size: 30"
- Undercounter: No
- Volume Capacity: 580 lb
- Warranty: 1 Year Limited Warranty
- Water Dispenser: No
- Case Pack Dimensions: 48" x 40" x 42"
- Case Pack Weight: 164.0
- Case Quantity: 1.0
- Master Carton Quantity: 1.0
- Country of Origin: China
- Freight Class: 250.0
- Usually Ships In: 7-10 Days
- Number of Boxes: 1.0
- Packaging Type: BROWN BOX
- Ship Type: LTL
- Shipped Assembled?: Yes
- Tariff Code (HTS): 8418.91.0000
- ADA Compliant: No
- BPA Free: No
- Certifications: Prop 65 Compliant
- cETL Listed: No
- CSA Certified: No
- cUL Listed: No
- Energy Star: No
- ETL Listed: No
