Description
rue Refrigeration G4SM-23PT-HC~TSL01 Description

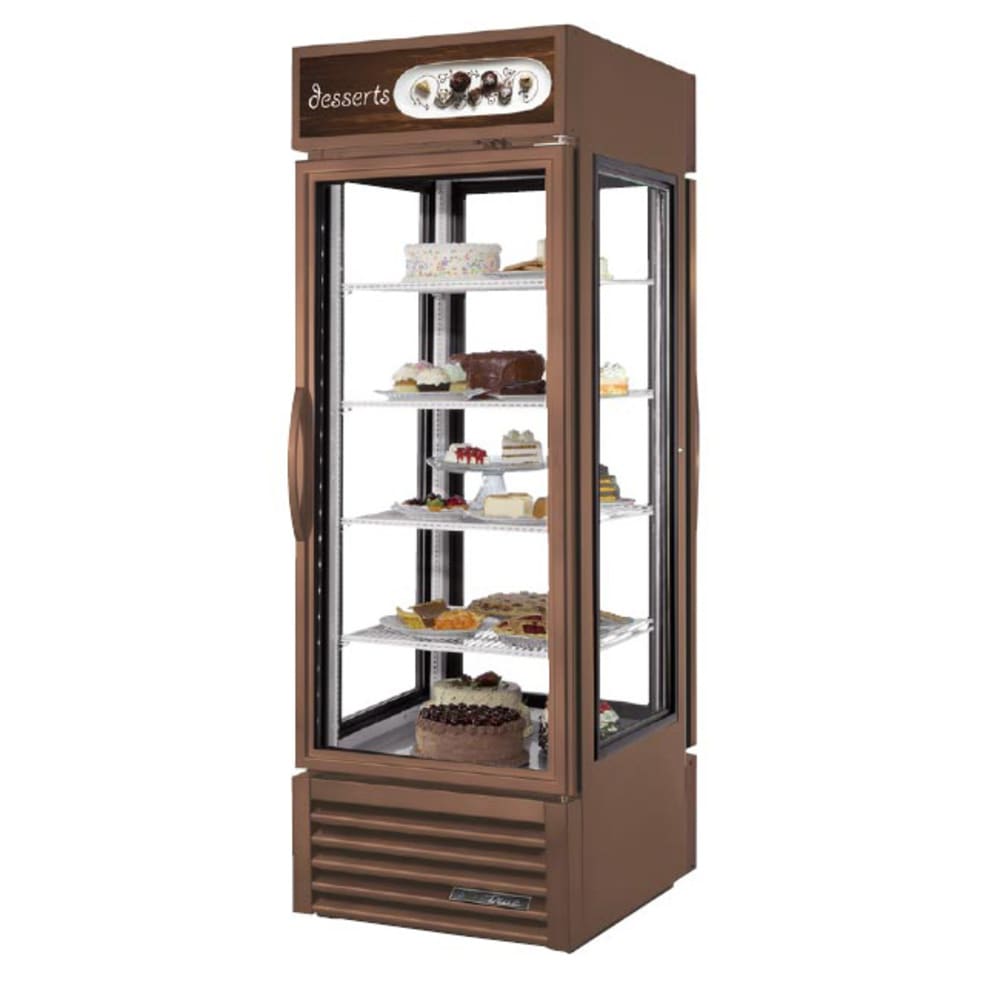

The True G4SM-23PT-HC~TSL01 full-service bakery case features an attractive copper powder-coat finish that adds an upscale appearance to the piece. All four sides of the case are glass for optimized visibility, and the front and back of the case have glass doors to enable pass-thru usage. Made of low-E double-pane glass, the doors and sides of the case are insulated and retain cold temperatures for reduced energy use. Mounted on the bottom, the compressor is self-contained for streamlined installation, and it's factory balanced to maintain temperatures between 33 and 38 degrees Fahrenheit.
Drawing customer attention and promoting sales, the True G4SM-23PT-HC~TSL01 refrigerated bakery case has safety-shielded interior LED lighting to cast an attractive glow over the contents. Its four shelves are made of heavy-duty wire and can be adjusted up or down along the pilasters in 1⁄2-inch increments for a customizable setup. Illuminated sign panels are placed on the front and back of the unit, advertising available products to customers. To keep the case's contents secure overnight, both doors can be locked.
Product Details
- Copper powder-coated exterior with white interior
- 1 section
- 2 swinging glass doors with pass-thru accessibility
- Aluminum interior liner with stainless steel floor
- Double-pane, insulated glass doors and sides
- Self-closing, locking doors with 1-piece magnetic gaskets
- Each door has a 12-in. extruded handle to provide a firm grip
- LED interior lighting is safety shielded to prevent breakage
- Cabinet insulation is foamed-in-place polyurethane with 0 ozone depletion
- 4 heavy-duty wire shelves with pilasters adjust in 1⁄2-in. increments
- Shelves are coated with white PVC for corrosion resistance
- Illuminated exterior front and rear sign panels advertise case contents
- Heavy-duty, welded steel frame rail is fitted with leg levelers
Refrigeration System
- Self-contained capillary tube system
- Bottom-mounted compressor streamlines maintenance
- Cooled with R290 hydrocarbon refrigerant
- Factory balanced to maintain temperatures between 33-38 degrees F
- ECM evaporator and condenser fan motors are energy efficient
Dimensions & Utilities
- Shelves: 227⁄8 in. W x 21 3⁄4 in. D
- Overall: 271⁄2 in. W x 337⁄8 in. D x 785⁄8 in. H
- 5.4 A, 1⁄3 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
True Refrigeration G4SM-23PT-HC~TSL01 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Access | Full Service |
| Color | Copper |
| Compressor Location | Bottom |
| Cubic Feet | 23 |
| Depth (in) | 32.75 |
| Design | Straight |
| Door Type | Hinged |
| Height (in) | 78.63 |
| Hertz | 60 |
| Number of Levels | 5 |
| Refrigeration Type | Refrigerated |
| Sections | 1 |
| Shelving Type | Wire |
| Thermometer Type | Digital |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 7-year Compressor |
| Width (in) | 27.5 |
| Series | G Series |
| Phase | 1 |
| Product | Bakery Display Cases |
| Made in USA | Yes |
| Product Type | Commercial Refrigeration |
| Weight | 375.00 |
