Description

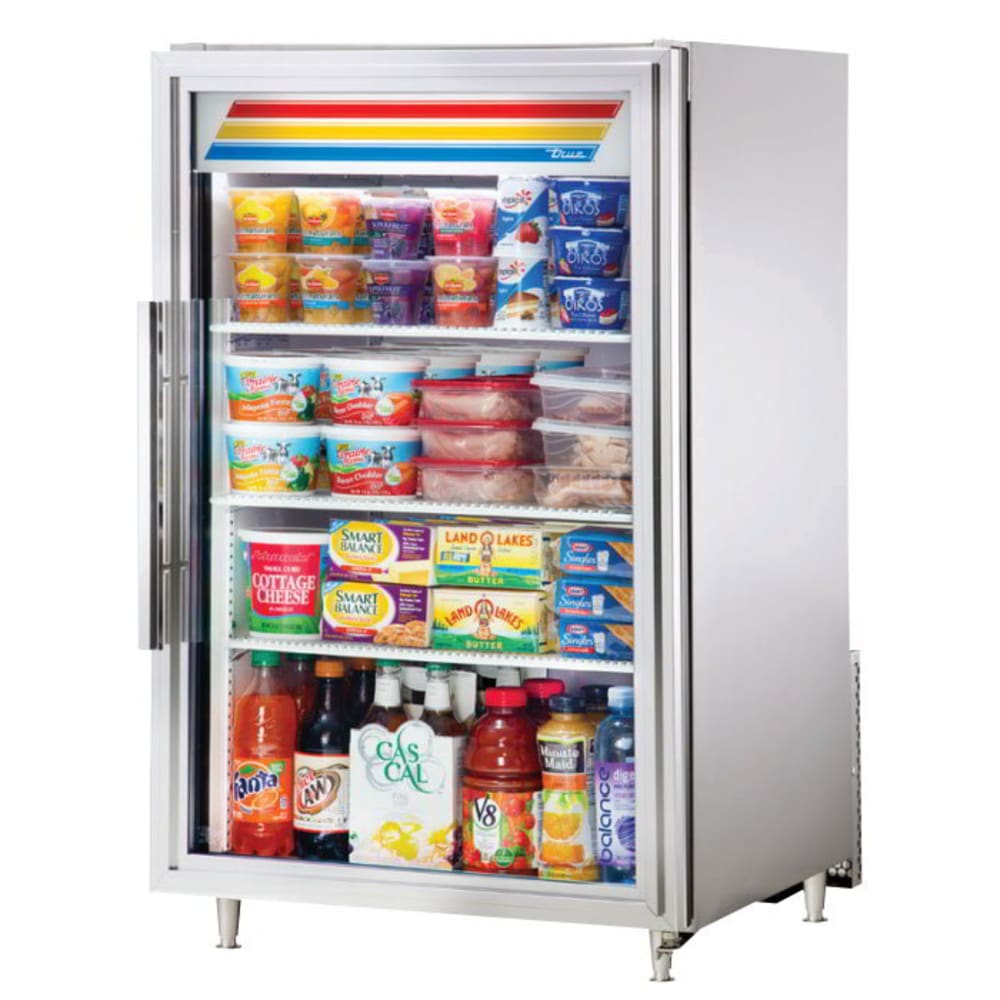

True Refrigeration GDM-07-S-HC~TSL01 Description
For convenient access and fast service with an attractive display, the True GDM-07-S-HC~TSL01 glass door merchandiser uses a self-contained refrigeration system to help maintain even temperatures. A temperature range of 33 to 38 degrees Fahrenheit is used to preserve deli meats and other packaged products, while the system uses R290 hydrocarbon refrigerant, which is more environmentally friendly than traditional options.
Removing dust and debris from the condensing coil, the condensing fan motor reverses for 20 seconds upon start up. Keeping the coil clean ensures a lengthened unit life, reduced energy consumption, and better maintained product temperatures. Although this feature is self-cleaning, users should still perform preventative maintenance routinely.
The entire cabinet is insulated with high-density polyurethane that is foamed in place, keeping cold air inside the cabinet and increasing structural strength. With a glass window, the door shows off stored items, and it is thermally insulated to retain cold air. LED cabinet lighting shines on displayed items to improve visibility and product presentation. Adjustable shelves ensure the True GDM-07-S-HC~TSL01 glass door merchandiser can hold a variety of products.
Product Details
- 3 adjustable wire shelves are coated in PVC for corrosion resistance
- Shelves are adjustable in 1⁄2-in. increments
- 4 chrome-plated shelf clips per shelf
- LED lighting brightens the interior
- Double-pane, thermal-insulated glass door keeps cold air inside
- Self-closing door retains cold temperatures
- Door has 12-in. extruded handle
- Magnetic gasket keeps cold air from escaping and removes without tools for cleaning
- Door sign decal helps attract customers
- 21⁄2-in. legs
Refrigeration System
- Temperature range: 33-38 degrees F
- Self-contained capillary tube system uses eco-friendly R290 hydrocarbon refrigerant
- Electronically commutated condenser and evaporator fan motors efficiently and consistently move air in the cabinet
- Dirt and debris removed from the condensing coil with a reverse condensing fan motor
- Epoxy-coated evaporator is resistant to corrosion
Heavy-duty Construction
- Insulated with foamed-in-place, high-density polyurethane for strength and cold air retention
- Stainless steel exterior is durable for heavy use
- Corrosion-resistant, white aluminum interior liner is durable
- Stainless steel interior floor simplifies cleaning and resists rusting
Dimensions & Utilities
- 1 shelf: 1911⁄16 in. W x 161⁄2 in. D
- 2 shelves: 1911⁄16 in. W x 17 in. D
- Overall: 241⁄8 in. W x 263⁄4 in. D x 397⁄8 in. H
- 1.9 A, 1⁄6 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
True Refrigeration GDM-07-S-HC~TSL01 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Access | Front |
| Also Known As | GDM-7S, TRUE GDM-7S, TRUGDM7S, 890GDM7S, GDM7S |
| Color | Silver |
| Depth (in) | 26.75 |
| Door Design | Swing |
| Door Type | Glass |
| Height (in) | 39.88 |
| Hertz | 60 |
| Sections | 1 |
| Special Features | LED Lighting |
| Supports | Legs |
| Voltage | 115 |
| Warranty | 3 year parts & labor; 7 year compressor |
| Width (in) | 24.13 |
| Series | GDM Series |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Product | Countertop Refrigerators |
| Product Type | Commercial Refrigeration |
| Hinge Configuration | Right |
| Weight | 195.00 |
