Description

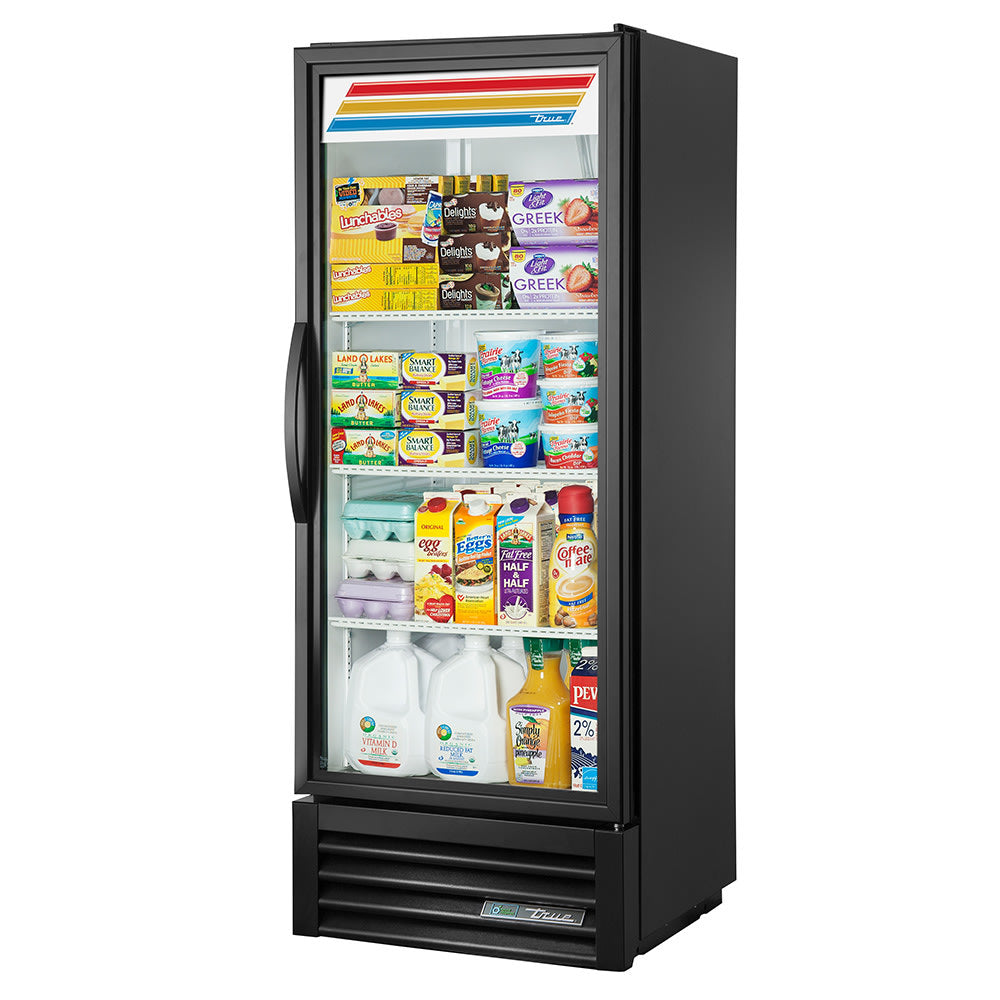

rue Refrigeration GDM-12-HC~TSL01 Description
The True GDM-12-HC~TSL01 one-section glass door merchandiser has a white aluminum interior that brightens the cabinet. The stainless steel floor has a built-in drain that facilitates cleaning the interior. Foamed-in-place polyurethane insulation in the cabinet helps cold air stay inside and gives structure. The black powder-coated, heavy-duty steel frame rail is corrosion resistant and has leg levelers for uneven floor installation. A black powder-coated exterior hides dents and scratches well and resists peeling and chipping.
Since the evaporator is coated with epoxy, it resists corrosion, and the bottom-mounted condenser placement provides convenient cleaning and maintenance access. The electronically commutated evaporator and condenser fan motors produce a consistent volume of air, so it produces little heat and helps save energy. Removing dust, debris, and dirt from the condensing coil, the fan motor blows in reverse for 20 seconds after the compressor is started. This ensures the coil is kept clean, improving product temperatures and reducing the amount of energy used. To further extend the unit's lifespan, employees should perform routine preventative maintenance.
The refrigeration system keeps temperatures between 33 and 38 degrees Fahrenheit, and the self-contained capillary tube system uses environmentally friendly R290 hydrocarbon refrigerant. The True GDM-12-HC~TSL01 one-section glass door merchandiser works great in convenience stores, gas stations, and other stop-and-shop establishments.
Product Details
- No-stoop shelf created by the condensing unit raises products so they are visible and accessible
- 3 heavy-duty, PVC-coated wire shelves are adjustable on 1⁄2-in. increments to accommodate products’ various heights
- Each shelf comes with 4 chrome-plated clips
- Shelf support pilasters are made of aluminum
- LED interior lighting provides product visibility
- Door sign decal helps with marketing to customers
- Right-hinged, self-closing door helps keep cold air inside the cabinet
- 12-in. integrated handle
- Cleaning and replacing the magnetic door gasket are simple since it removable without tools
Reliable Refrigeration System
- Temperature range: 33-38 degrees F
- Evaporator is corrosion resistant since it is coated in epoxy
- Environmentally friendly R290 hydrocarbon refrigerant
- High-capacity, balanced refrigeration system maintains even temperatures
- Electronically commutated condenser and evaporator fan motors produce less heat, keep the motor reliable, and reduce the amount of energy consumed by moving a consistent volume of air
- Condensing coil kept clean using a reverse condensing fan motor
- Bottom-mounted condensing unit is easy to maintain and clean
Durable Construction
- Black powder-coated exterior hides scratches and dents, avoids peeling and chipping, and is durable and permanent
- White aluminum interior brightens the cabinet
- Stainless steel floor has a built-in drain that simplifies cleaning
- High-density polyurethane insulation gives the cabinet structure since it is foamed in place
- Heavy-duty steel frame rail is black powder-coated to resist corrosion and has leg levelers for uneven flooring
- Double-pane, thermal-insulated glass door has a mitered plastic channel frame for stability
Dimensions & Utilities
- Shelves: 205⁄8 in. W x 171⁄2 in. D
- Overall: 247⁄8 in. W x 253⁄4 in. D x 623⁄8 in. H
- 2.0 A, 1⁄6 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
True Refrigeration GDM-12-HC~TSL01 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Also Known As | GDM-12 |
| Color | Black |
| Compressor Location | Bottom |
| Cubic Feet | 12 |
| Depth (in) | 25.75 |
| Door Design | Swing |
| Height (in) | 62.38 |
| Hertz | 60 |
| Sections | 1 |
| Shelving Type | Wire |
| Special Features | LED Lighting |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 7-year Compressor |
| Width (in) | 24.88 |
| Series | GDM Series |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Rating | Better |
| Product | Display Refrigerators |
| Product Type | Commercial Refrigeration |
| Hinge Configuration | Right |
| Weight | 195.00 |
