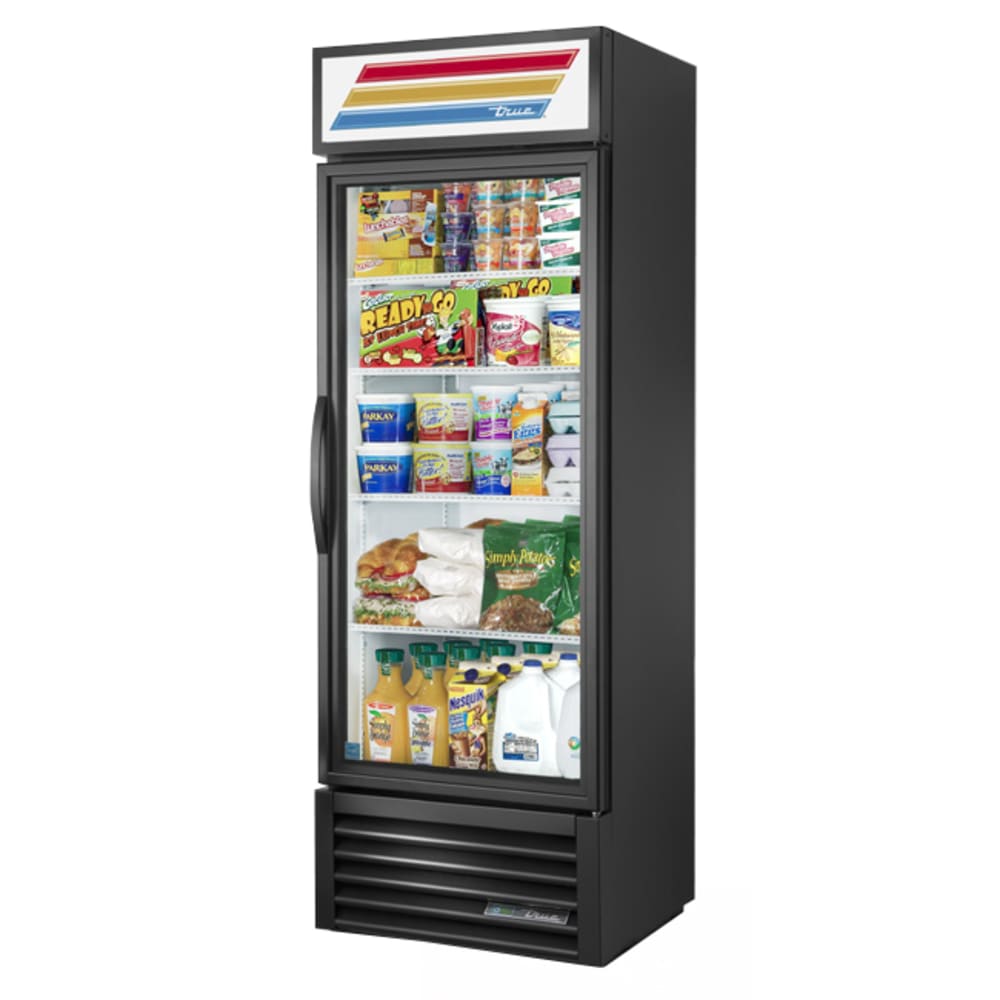

True GDM-19T-HC~TSL01 27" One Section Glass Door Merchandiser, (1) Right Hinge Door, 115v

Designed using quality materials and perfected technology, the True GDM-19T-HC~TSL01 one-section glass door merchandiser is perfect for holding packaged and bottled products. The double-pane, thermal-insulated glass door is surrounded by a sturdy aluminum frame with an easy-grip handle and a self-closing feature to ensure that products are sealed up tight. A magnetic door gasket keeps cold air from escaping and removes for cleaning and servicing. Four heavy-duty, PVC-coated wire shelves are adjustable on ¹⁄₂-inch increments, so they can accommodate different heights of products.

The reverse condensing fan motor runs for 20 seconds after the compressor is started to blow dust and debris off the condensing coil. This feature as well as routine preventative maintenance ensures the condensing coil remains clean. When it's kept clean, the unit operates using less energy and maintains proper product temperatures.

Since the condensing unit is mounted on the bottom of the cabinet, a no-stoop lower shelf raises products so they are visible. Energy consumption is reduced and less heat is produced since the evaporator and condenser fan motors move a consistent volume of air. Environmentally friendly R290 refrigerant is used by the self-contained capillary tube system to keep temperatures cold. The high-capacity, balanced refrigeration system maintains a temperature range of 33 to 38 degrees Fahrenheit. The True GDM-19T-HC~TSL01 one-section glass door merchandiser has an epoxy-coated evaporator that resists corrosion.

Product Details

• 4 heavy-duty, PVC-coated wire shelves are adjustable on ¹⁄₂-in. increments
• Each shelf has 4 chrome-plated shelf clips
• LED interior lights enhance product visibility
• Double-pane, thermal-insulated glass door has an extruded aluminum frame for durability
• Self-closing door has a 12-in. extruded handle that makes opening the door easy
• Magnetic door gasket keeps cold air from escaping the cabinet
• Gasket removes for cleaning or replacing
• Exterior sign panel is illuminated to capture customers’ attention
• Drain built into the cabinet floor simplifies cleaning

Refrigeration System

• Temperature range: 33-38 degrees F
• Self-contained capillary tube system uses R290 hydrocarbon refrigerant
• High-capacity, balanced refrigeration system maintains even temperatures
• Evaporator and condenser fan motors move a consistent volume of air, producing less heat and reducing energy consumption
• Fan motor reverses upon compressor start up to rid the condensing coil of dirt and debris
• Bottom-mounted condensing unit is within reach and creates a no-stoop shelf so products are visible
• Evaporator is coated in epoxy to resist corrosion

Reliable Construction

• Black powder-coated steel exterior will not chip or peel and is durable and permanent
• White aluminum liner brightens the cabinet interior
• Stainless steel floor is durable and simple to clean
• High-density polyurethane insulation keeps cold air inside the cabinet and gives it structure since it is foamed in place
• Black powder-coated steel frame rail resists corrosion
• Levels on uneven flooring with the leg levelers on the steel frame

Dimensions & Utilities

• Shelves: 22⁹⁄₁₆ in. W x 18¹⁄₄ in. D
• Overall: 27 in. W x 26¹⁄₂ in. D x 78⁵⁄₈ in. H
• 5.4 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 9-ft. cord NEMA 5-15P plug

True Refrigeration GDM-19T-HC~TSL01 Specifications

Spec Attribute	Spec Value
Manufacturer	True Refrigeration
Also Known As	GDM-19T-HC-LD, GDM-19T
Color	Black
Compressor Location	Bottom
Cubic Feet	19
Depth (in)	26.5
Door Design	Swing
Height (in)	78.63
Hertz	60
Sections	1
Shelving Type	Wire
Special Features	LED Lighting
Voltage	115
Warranty	3 year parts & labor; 7 year compressor
Width (in)	27
Series	GDM Series
Refrigerant	R290 (Hydrocarbon)
Phase	1
Rating	Better
Product	Display Refrigerators
Product Type	Commercial Refrigeration
Hinge Configuration	Right
Weight	275.00
