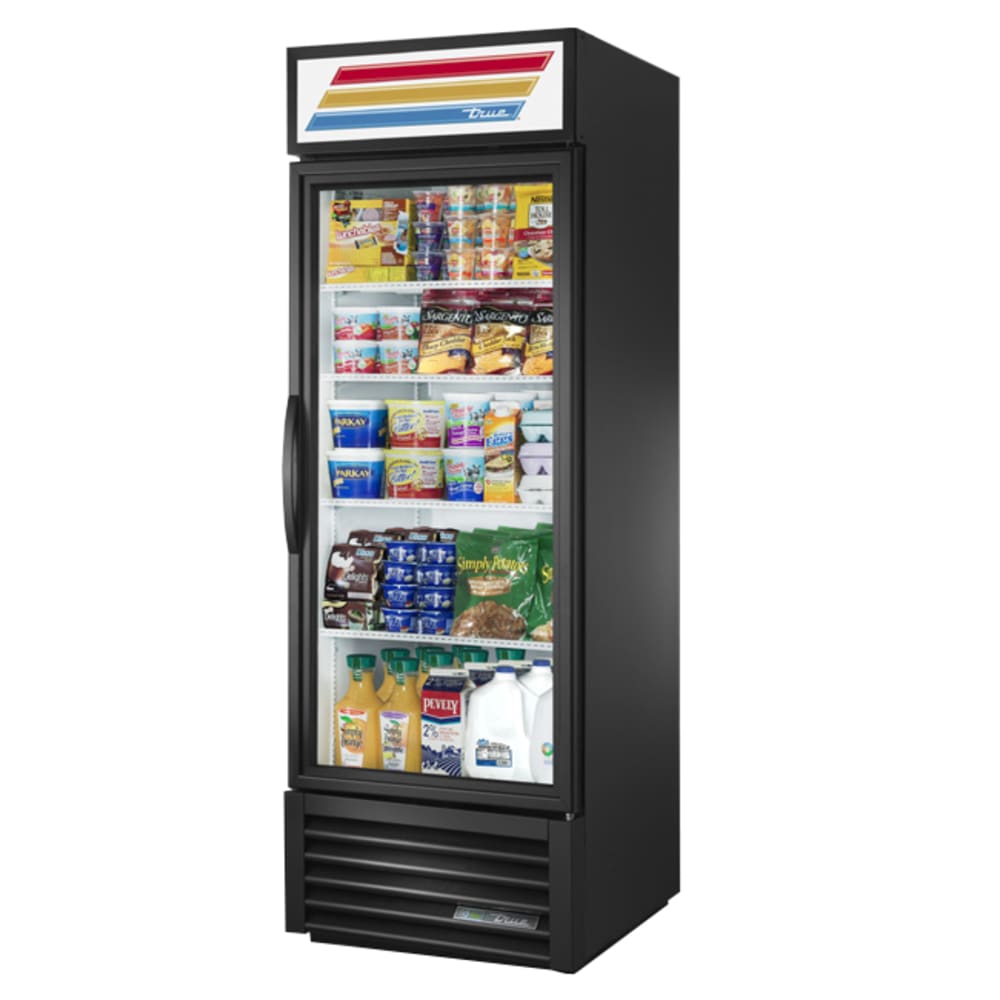

True Refrigeration GDM-23-HC~TSL01 Description
The True GDM-23-HC~TSL01 one-section glass door merchandiser has a double-pane, thermal-insulated glass door with an aluminum frame for durability. A 12-inch extruded handle on the door makes it easy to open, especially when users are loading it with product. Since the door self-closes, cold air is retained in the cabinet. The magnetic door gasket also keeps cold air from escaping and removes for cleaning and replacing.
The cabinet features a chip-resistant, durable black powder-coated exterior that hides scratches and dents well. The white aluminum interior liner brightens the cabinet, and the stainless steel floor and clean-out drain make cleaning the interior simple. In the cabinet, the four PVC-coated wire shelves are adjustable on 1⁄2-inch increments to accommodate various products. LED lighting brightens the interior and enhances product visibility.
The True GDM-23-HC~TSL01 one-section glass door merchandiser comes equipped with a self-contained capillary tube system that uses R290 hydrocarbon refrigerant to keep temperatures cold. A high-capacity, balanced refrigeration system maintains temperatures from 33 to 38 degrees Fahrenheit for the best food preservation. Electronically commutated evaporator and condenser fan motors move a consistent volume of air, producing little heat and reducing the consumption of energy. Extending the unit's lifespan and reducing the amount of energy used, the reverse condensing fan motor keeps the condensing coil clean. Upon start up of the compressor, the fan blows in reverse for 20 seconds to remove dust and debris from the coil. To properly maintain product temperature, routine preventative maintenance should still be performed. The bottom-mounted condensing unit is within reach for maintenance and creates a no-stoop lower shelf that raises products slightly so they are more visible.
Product Details
- 4 heavy-duty, PVC-coated wire shelves are adjustable on 1⁄2-in. increments
- Each shelf comes with 4 chrome-plated shelf clips
- LED lighting illuminates the interior and makes products more visible
- Double-pane, thermal-insulated glass door has an extruded aluminum frame for durability
- Self-closing door helps keep cold air inside
- Magnetic door gasket keeps cold air from escaping the cabinet and removes for cleaning or replacing
- 12-in. extruded handle facilitates opening the door for loading
- Exterior sign panel illuminates to grab the attention of customers
- Drain built into the stainless steel floor simplifies cleaning the interior
Cabinet Construction
- Black powder-coated steel exterior hides scratches and dents and will not peel or chip since it is permanent and durable
- White aluminum interior liner brightens the cabinet
- Stainless steel floor is durable
- Entire cabinet is foamed-in-place with polyurethane insulation that keeps cold air inside and gives it structure
- Heavy-duty steel frame rail is black powder coated to resist corrosion
Refrigeration System
- Temperature range: 33-38 degrees F
- Self-contained, capillary tube system uses R290 hydrocarbon refrigerant
- Balanced, high-capacity refrigeration system maintains even temperatures
- Electronically commutated evaporator and condenser fan motors move a consistent volume of air, producing less heat and reducing energy consumption
- Dirt and debris removed from condensing coil with a reverse condensing fan motor
- Epoxy-coated evaporator is corrosion resistant
- Bottom-mounted condensing unit offers easy maintenance access and creates a no-stoop shelf that makes products more visible
Dimensions & Utilities
- Shelves: 229⁄16 in. W x 231⁄4 in. D
- Overall: 27 in. W x 311⁄2 in. D x 785⁄8 in. H
- 5.4 A, 1⁄3 HP
- 115 V/60 Hz/1 ph, 9-ft. cord NEMA 5-15P plug
True Refrigeration GDM-23-HC~TSL01 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Also Known As | GDM-23BK, TRUGDM23BK, TRUE GDM-23BK, 890GDM23BK, GDM23BK, 675-008, GDM-23-HC-LD, GDM-23-HC |
| Color | Black |
| Compressor Location | Bottom |
| Cubic Feet | 23 |
| Depth (in) | 31.5 |
| Door Design | Swing |
| Height (in) | 78.63 |
| Hertz | 60 |
| Sections | 1 |
| Shelving Type | Wire |
| Special Features | LED Lighting |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 7-year Compressor |
| Width (in) | 27 |
| Series | GDM Series |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Rating | Better |
| Product | Display Refrigerators |
| Product Type | Commercial Refrigeration |
| Hinge Configuration | Right |
| Weight | 355.00 |
