Description

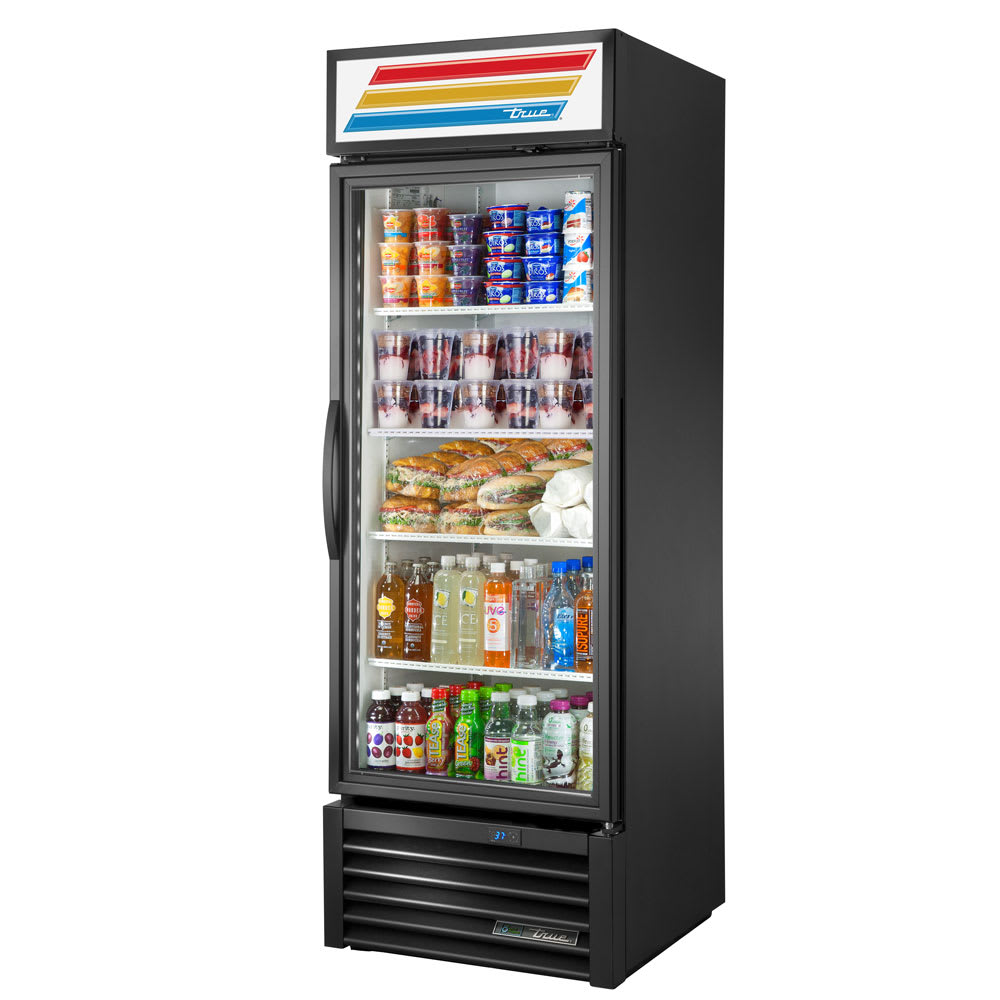

True Refrigeration GDM-23-HST-HC~TSL01 Description
Since this True GDM-23-HST-HC~TSL01 one-section merchandiser has a bottom-mounted condenser, it is accessible for maintenance and prevents users from stooping to grab products. Its condenser and evaporator fan motors are electronically commutated, so they move air consistently. The evaporator coils are epoxy coated to resist corrosion, and the capillary tube system holds and controls the flow of R290 hydrocarbon refrigerant. Temperatures are held between 33 and 38 degrees Fahrenheit.
This True GDM-23-HST-HC~TSL01 refrigerated display case has a cold-rolled steel exterior that is powder coated black to resist chipping and peeling. Its interior is lined with white aluminum, and its floor is made of stainless steel to resist corrosion and dents. To retain temperatures, the cabinet is insulated with polyurethane foam. Since the cabinet's thermal-insulated door is left-hinged, it opens on the right. This door is made of double-pane, low-e glass and self-closes to save energy. For an airtight seal, a magnetic gasket snaps into the door frame, and a 12-inch-long handle ensures a sturdy grip.
This refrigerated merchandiser has an exterior sign panel that lights up to attract customers. To clearly display product of all sizes, the four PVC-coated wire shelves can be adjusted in 1⁄2-inch increments. LED lights brighten the interior, and a drain is integrated into the floor to facilitate cleanup. If internal temperatures exceed 41 degrees Fahrenheit for 30 consecutive minutes, a health safety timer locks the door and sounds an alarm to notify staff.
Product Details
- Cold-rolled steel exterior is powder coated black to resist peels and chips
- White aluminum lined interior and stainless steel floor resist corrosion and dents
- Insulated with polyurethane foam to retain temperatures
- Exterior sign panel lights up to draw in customers
- Low-e, double-pane glass door closes if left open and is thermal insulated
- Left-hinged door opens on the right
- Door gasket is magnetic and can be removed without tools
- 12-in.-long handle is sturdy and comfortable
- 4 PVC-coated wire shelves can be adjusted in 1⁄2-in. increments to hold product
- LED lighting illuminates the interior
- Drain built into the cabinet floor facilitates cleaning
- Health safety timer locks the door when 41 degrees F is exceeded for 30 min.
- Alarm sounds when the door is locked to notify staff
Refrigeration System
- Temperature range: 33-38 degrees F
- Uses R290 hydrocarbon refrigerant
- Capillary tube system is self-contained for straightforward maintenance
- Electronically commutated condenser and evaporator fan motors efficiently move air
- Bottom-mounted condenser eliminates the need to stoop for product access
- Epoxy-coated evaporator reduces potential corrosion
Dimensions & Utilities
- Shelves: 229⁄16 in. L x 231⁄4 in. D
- Overall: 27 in. W x 311⁄2 in. D x 785⁄8 in. H
- 5.4 A, 1⁄3 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
True Refrigeration GDM-23-HST-HC~TSL01 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Color | Black |
| Compressor Location | Bottom |
| Cubic Feet | 23 |
| Depth (in) | 31.5 |
| Door Design | Swing |
| Height (in) | 78.63 |
| Hertz | 60 |
| Sections | 1 |
| Shelving Type | Wire |
| Special Features | LED Lighting |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 7-year Compressor |
| Width (in) | 27 |
| Series | GDM Series |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Rating | Better |
| Product | Display Refrigerators |
| Product Type | Commercial Refrigeration |
| Hinge Configuration | Right |
| Weight | 315.00 |
