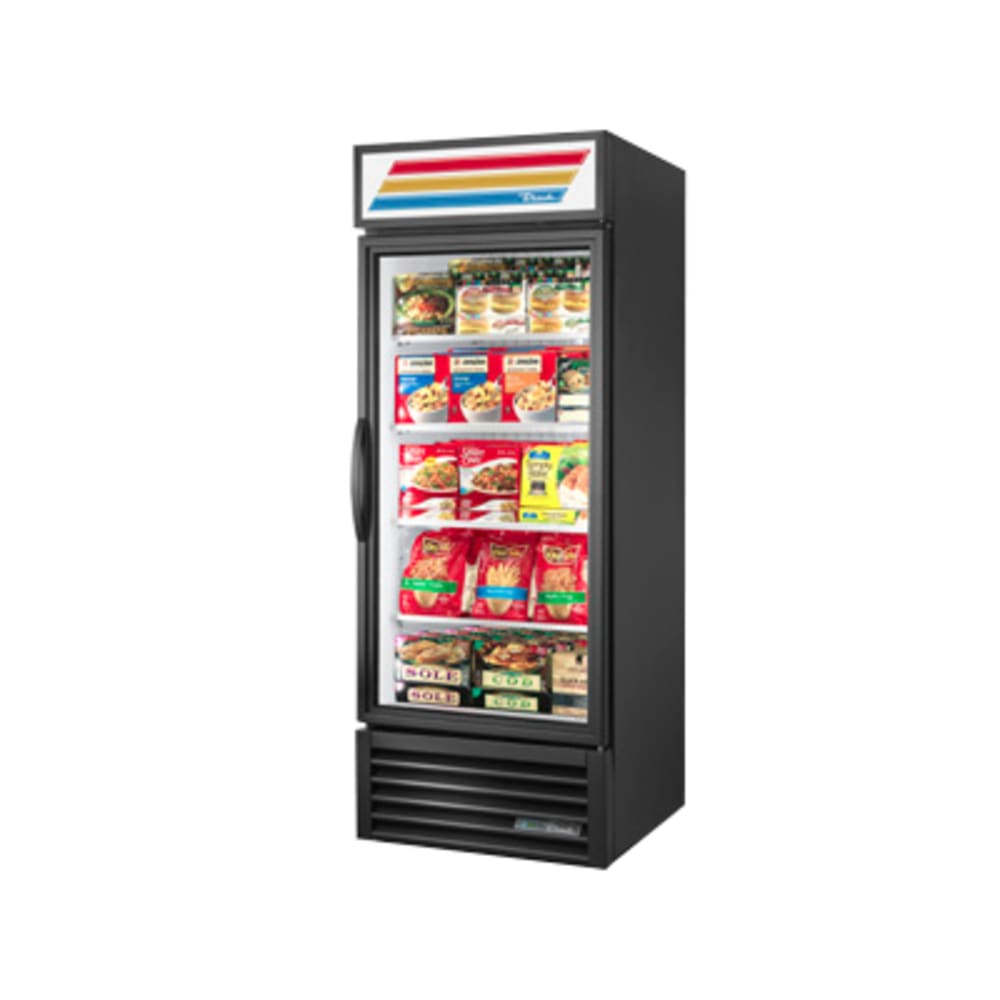

True Refrigeration GDM-26F-HC~TSL01 BLK/LH Description
Measuring just 30 inches in width, the True GDM-26F-HC~TSL01 one-section display freezer gives users ample vertical space to store frozen product without wasting valuable floor space. It contains four heavy-duty wire shelves that are coated with PVC to streamline cleaning and prevent corrosion. Each shelf is adjustable in 1⁄2-inch increments to accommodate many types of products. Because the unit's refrigeration system is bottom mounted, it raises the lower shelf to a comfortable height and reduces the need to stoop.
This unit has a condensing fan motor that goes into reverse mode upon start up for 20 seconds. This is designed to blow debris, dust, and dirt off the condenser coil. When this component is subjected to automatic and regular cleanings, the system operates without using a lot of energy. It also maintains consistent product temperatures and prolongs the system's lifespan. Despite this cleaning feature improving operation efficiency, it doesn’t replace routine preventative cleaning and maintenance.
Made of powder-coated steel outside and aluminum and stainless steel inside, the True GDM-26F-HC~TSL01 single-section freezer merchandiser is sturdy and durable, enabling it to withstand intensive use for an extended period of time. Its triple-paned glass door self-closes when not in use to conserve energy and has a one-piece magnetic gasket that can be removed for cleaning purposes. Safety shielding protects the unit's interior LED lighting, providing enhanced visibility and protection from cracks and breakage. Insulated with high-density polyurethane foam, the cabinet keeps contents chilled to prolong freshness.
Product Details
- Black powder-coated exterior with white interior
- Single section
- 1 swinging glass door with a left hinge
- Interior has powder-coated aluminum liner and stainless steel floor
- Triple-pane door self-closes and is thermal insulated
- Magnetic door gasket with 1-piece construction for streamlined cleaning
- Extruded door handle is 12-in. long
- LED interior lighting is safety shielded for long-term performance
- High-density, foamed-in-place polyurethane insulates cabinet
- Heavy-duty steel frame rail is powder coated and welded for durability
- 4 heavy-duty wire shelves with pilasters adjust in 1⁄2-in. increments
- PVC coating on shelves protects against corrosion
- Exterior sign panel is illuminated
Refrigeration System
- Self-contained capillary tube system
- Bottom-mounted compressor raises lower shelf to reduce bending
- Environmentally friendly R290 hydrocarbon refrigerant
- Factory balanced to maintain temperature of -10 degrees F
- Energy-efficient ECM condenser and evaporator fan motors
- Reversing fan motor design for condenser coil cleaning
Dimensions & Utilities
- Shelves: 2511⁄16 in. W x 211⁄4 in. D
- Overall: 30 in. W x 311⁄2 in. D x 785⁄8 in. H
- 9.5 A, 1 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
True Refrigeration GDM-26F-HC~TSL01 BLK/LH Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Color | Black |
| Compressor Location | Bottom |
| Cubic Feet | 26 |
| Depth (in) | 31.5 |
| Door Design | Swing |
| Height (in) | 78.63 |
| Hertz | 60 |
| Sections | 1 |
| Special Features | LED Lighting |
| Special Features | Lit Signage Area |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 7-year Compressor |
| Width (in) | 30 |
| Series | GDM Series |
| Air Intake | Front |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Rating | Better |
| Product | Display Freezers |
| Made in USA | Yes |
| Product Type | Commercial Refrigeration |
| Hinge Configuration | Left |
| Weight | 410.00 |
