True Refrigeration GDM-33-HC-LD Description

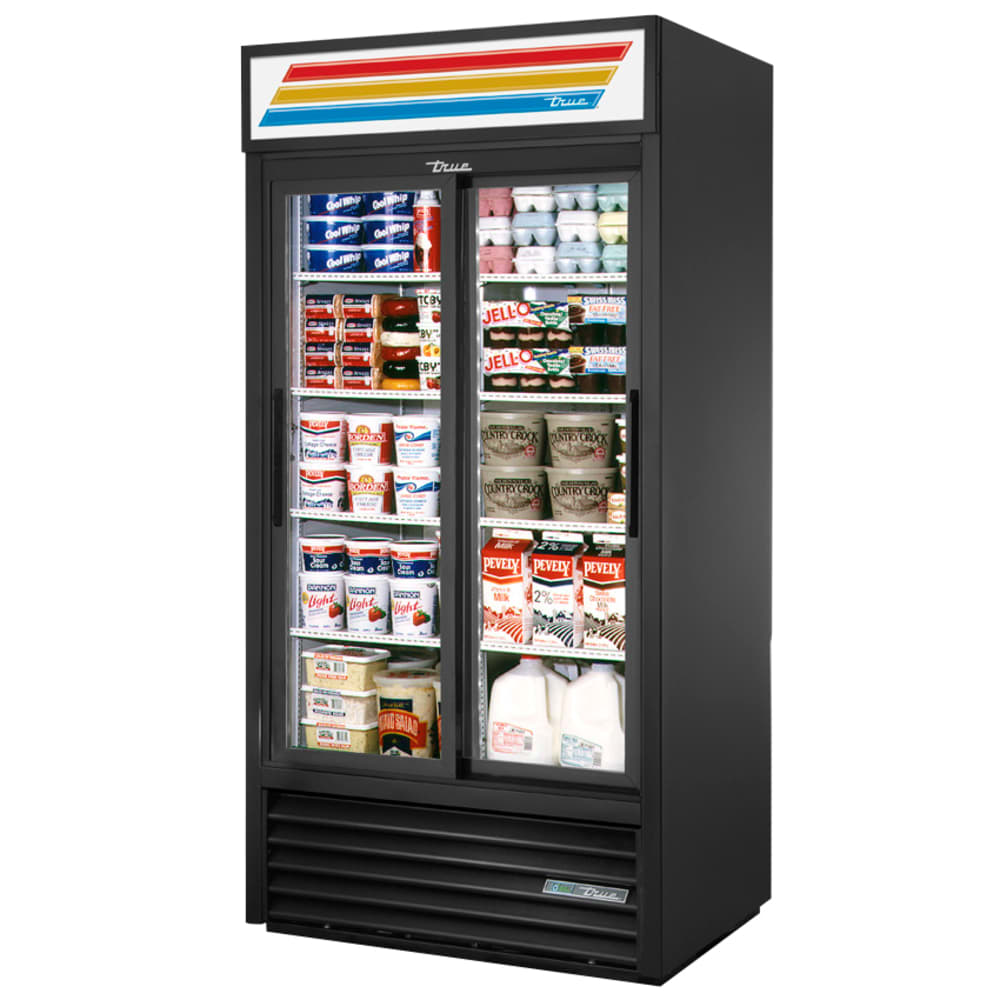

The True GDM-33-HC-LD two-section merchandiser features two sliding glass doors, each equipped with double-paned and thermal-insulated glass for enhanced energy efficiency and a 12-inch handle for quick access. Each of the two doors self-close, and each section has four shelves that are adjustable in 1⁄2-inch increments to create a customized storage and display. For each shelf, four chrome-plated clips provide stability, while LED lights enhance visibility.
This unit includes a laminated black vinyl exterior that resists chipping and peeling, along with a white aluminum interior liner and stainless steel floor that are durable. Cold air is retained in the True GDM-33-HC-LD glass door merchandiser with foamed-in-place polyurethane insulation that also gives rigidity to the cabinet. Temperatures are kept between 33 and 38 degrees, with an oversized refrigeration system and capillary tubes that monitor refrigerant flow. This unit's evaporator and condenser fan motors push out a consistent volume of air, so it produces less heat and uses less energy than other options. Operating in reverse for 20 seconds upon compressor start up, this unit has a reverse condensing fan motor. This automatic feature removes dust, debris, and dirt from the condensing coil, extending the unit's lifespan in a high-volume kitchen. To ensure the condensing coil is kept clean, users should perform routine preventative maintenance.
Product Details
- Illuminated exterior sign grabs customer attention
- LED interior lighting ensures products are visible
- 8 PVC-coated wire shelves are adjustable in 1⁄2-in. increments
- Low-E glass doors are thermal insulated for energy efficiency
- Doors self-close with a counter-balanced weight system
- 12-in. door handle for quick access
- Drain in bottom of cabinet eases cleanup
Refrigeration System
- Self-contained capillary tube system controls R290 hydrocarbon refrigerant amounts
- Balanced refrigeration system maintains even temperatures
- Temperature range: 33-38 degrees F
- Condenser and evaporator fan motors push out consistent amounts of air to lower energy consumption and heat production
- Reverse condensing fan motor ensures proper product temperatures by cleaning the condensing coil
- Bottom-mounted condensing unit simplifies servicing
- Evaporator is coated in epoxy to resist corrosion
Durable Construction
- Sturdy black laminated vinyl exterior resists chipping and peeling
- White aluminum interior liner with stainless steel cabinet floor are durable and simplify cleaning
- Polyurethane insulation retains cold air and is foamed in place for sturdiness
- Heavy-duty, coated steel frame rail is corrosion resistant and has leg levelers for uneven flooring
Dimensions & Utilities
- Shelves: 171⁄4 in. W x 211⁄8 in. D
- Overall: 391⁄2 in. W x 30 in. D x 785⁄8 in. H
- 6.5 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, 10-ft. cord with a NEMA 5-15P plug
True Refrigeration GDM-33-HC-LD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Also Known As | GDM-33, GDM-33-BK, GDM-33-BLK, GDM-33-LD, GDM-33-LD-HC, GDM-33-HC |
| Color | Black |
| Compressor Location | Bottom |
| Cubic Feet | 33 |
| Depth (in) | 30 |
| Door Design | Sliding |
| Height (in) | 78.63 |
| Hertz | 60 |
| Sections | 2 |
| Shelving Type | Wire |
| Special Features | LED Lighting |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 7-year Compressor |
| Width (in) | 39.5 |
| Series | GDM Series |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Rating | Better |
| Product | Display Refrigerators |
| Product Type | Commercial Refrigeration |
| Weight | 370.00 |
