Description

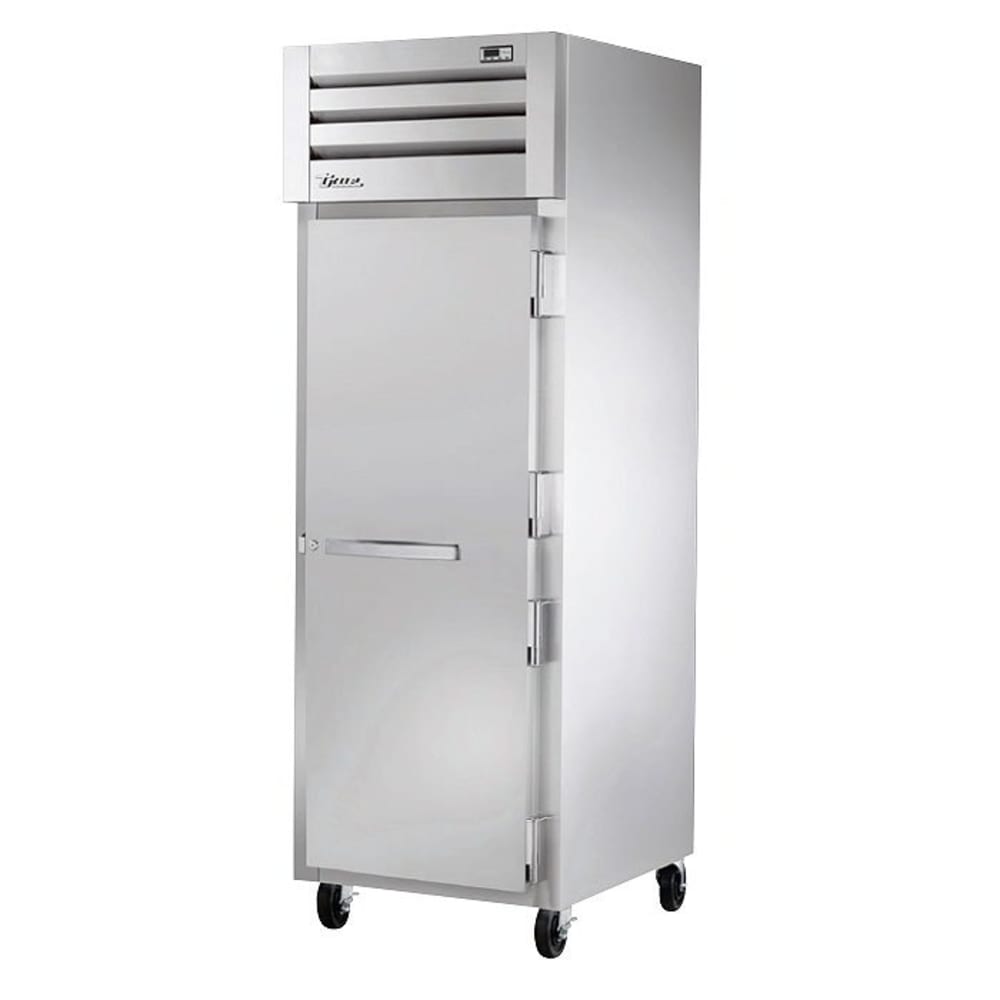

True Refrigeration STA1F-1S-HC Description
The True STA1F-1S one-section freezer is part of the Spec Series, True's line of premium refrigeration equipment. While the interior features a stainless steel floor and ceiling, the exterior is built with a stainless steel door, front, and sides. Products are held on three heavy-duty, chrome-plated wire shelves that offer superior corrosion resistance.
This True STA1F-1S reach-in freezer is built with a factory-balanced refrigeration system. Capillary tubes control refrigerant in the system to provide precise temperatures and quick recovery; this unit uses eco-friendly R290 hydrocarbon refrigerant. Evaporator and condenser fan motors are electronically commutated, a technology that distributes air evenly while requiring less electricity and producing less heat than traditional units. In addition to the recommended preventative maintenance procedures, the reversing condenser fan motor is engineered to prolong the life of the refrigeration system. Every time the fan motor starts up, it runs in its reverse mode for 20 seconds, knocking dust and debris off the condensing coil. Keeping this part clean ensures operation is efficient, reduces the system's energy consumption, and maintains consistent temperature levels in the cabinet.
Product Details
- 3 heavy-duty, chrome-plated wire shelves
- Bright, energy-efficient LED interior lighting
- Interior side walls and back are made of corrosion-resistant aluminum
- Interior floor and ceiling are stainless steel to simplify cleaning
- Exterior has a stainless steel door, front, and sides that resist rust and scratches
- Cabinet and door are insulated with eco-friendly, foamed-in-place polyurethane insulation
- Self-closing door stays open when opened past 120 degrees
- Bolt-style door lock protects stored items
- Durable, all-metal door handle
- 4 cam lift door hinges
- 1-piece magnetic door gasket is removable without tools
- Mounted on (4) 5-in. plate castors
Refrigeration System
- Operating temperature: -10 degrees F
- Exterior digital temperature display lets users verify internal temperatures
- Capillary tube refrigeration system responds quickly to changing temperatures
- Uses eco-friendly R290 hydrocarbon refrigerant
- Evaporator and condenser are equipped with electronically commutated fans, a type that moves a consistent volume of air while producing less heat and requiring less electricity than traditional fans
- Fan motor reverses for 20 seconds at start up to blow dust off condensing coil
- Evaporator is positioned outside of food zone to maximize cabinet storage space
- Epoxy-coated evaporator eliminates the chance of corrosion
- Time-initiated, temperature-terminated defrost system ensures the defrost cycle is as short as possible
Dimensions & Utilities
- 271⁄2 in. W x 351⁄4 in. D x 831⁄8 in. H
- 6 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
