Description
True Refrigeration STA1F-2HG-HC Description

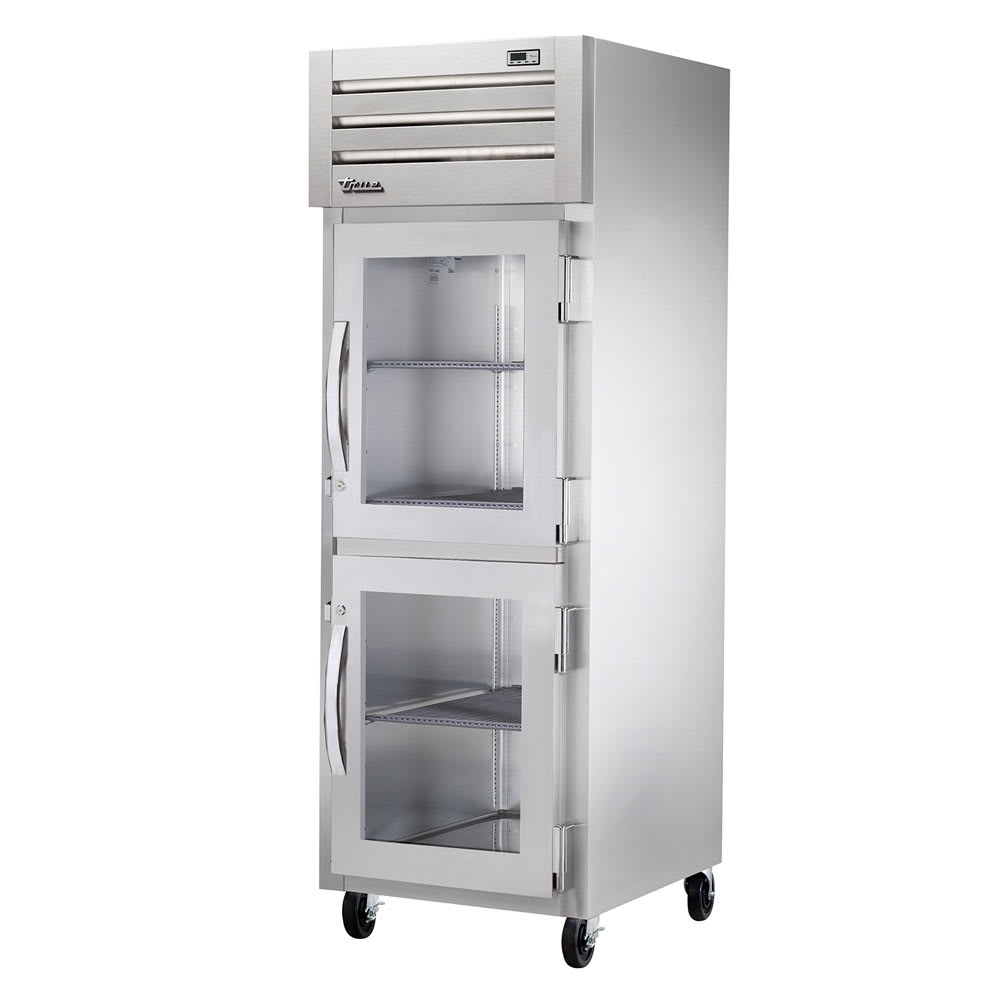

The True STA1F-2HG-HC reach-in freezer has three chrome-plated wire shelves that promote airflow to properly cool stored items. LED lighting increases product visibility, and the cabinet walls are made of corrosion-resistant aluminum. To simplify cleaning and add durability, it has a stainless steel floor and ceiling.
Since the freezer has half doors, employees can access the unit in smaller sections, reducing the amount of cold air that escapes when a door is opened. These doors have triple-pane glass, so users can find what they are looking for before opening a door. With a self-closing design, the doors shut on their own to retain cold air and stay open past 120 degrees, so users can load product into the cabinet. Each door has a lock that limits cabinet access to authorized users.
Operators can monitor temperatures, which should stay around -10 degrees Fahrenheit, in this True STA1F-2HG-HC one-section freezer on the external digital display. Using R290 hydrocarbon refrigerant, the capillary tube system responds quickly to changing temperatures, and the refrigeration system uses electronically commutated fan motors to efficiently move air, reducing energy consumption. Since the evaporator is located out of the food zone, it will not take up space in the cabinet. Defrosting in the cabinet removes ice buildup, and it is done with timer initiation and temperature termination.
Every time the condenser fan motor starts up, it runs in its reverse mode for 20 seconds, blowing debris and dirt off the condensing coil. With this regular coil cleaning, the refrigeration system operates efficiently, lowers energy use, and keeps the temperature inside consistent. When used alongside routine preventative maintenance procedures, this self-cleaning feature prolongs the lifespan of this unit.
Product Details
- 3 wire shelves are chrome plated for strength
- LED lighting brightens the cabinet for visibility
- Aluminum interior walls and back are resistant to corrosion
- Stainless steel floor and ceiling withstand heavy use and simplify cleanup
- Stainless steel exterior front, door, and sides resist rusting, denting, and scratching
- Foamed-in-place polyurethane insulation retains cold air and creates structure
- 2 half doors have triple-pane glass to retain cold air and provide visibility
- Self-closing doors stay open past 120 degrees when users are loading product
- Bolt-style door lock protects against tampering
- Strong, all-metal door handle
- 1-piece magnetic door gasket is removable without tools
- 4 cam lift door hinges
- 2 of the (4) 5-in. castors lock in place
Refrigeration System
- Operating temperature: -10 degrees F
- External digital temperature display
- Capillary tube refrigeration system uses R290 hydrocarbon refrigerant
- Condenser and evaporator fan motors are electronically commutated to efficiently move a consistent volume of air with less heat production and energy consumption
- Reversing fan motor for automatic condenser cleaning
- Evaporator is located out of the food zone to maximize storage space in the cabinet
- Corrosion-resistant, epoxy-coated evaporator
- Time-initiated, temperature-terminated, automatic defrost system
Dimensions & Utilities
- 271⁄2 in. W x 351⁄4 in. D x 831⁄8 in. H
- 8.9 A, 1 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
