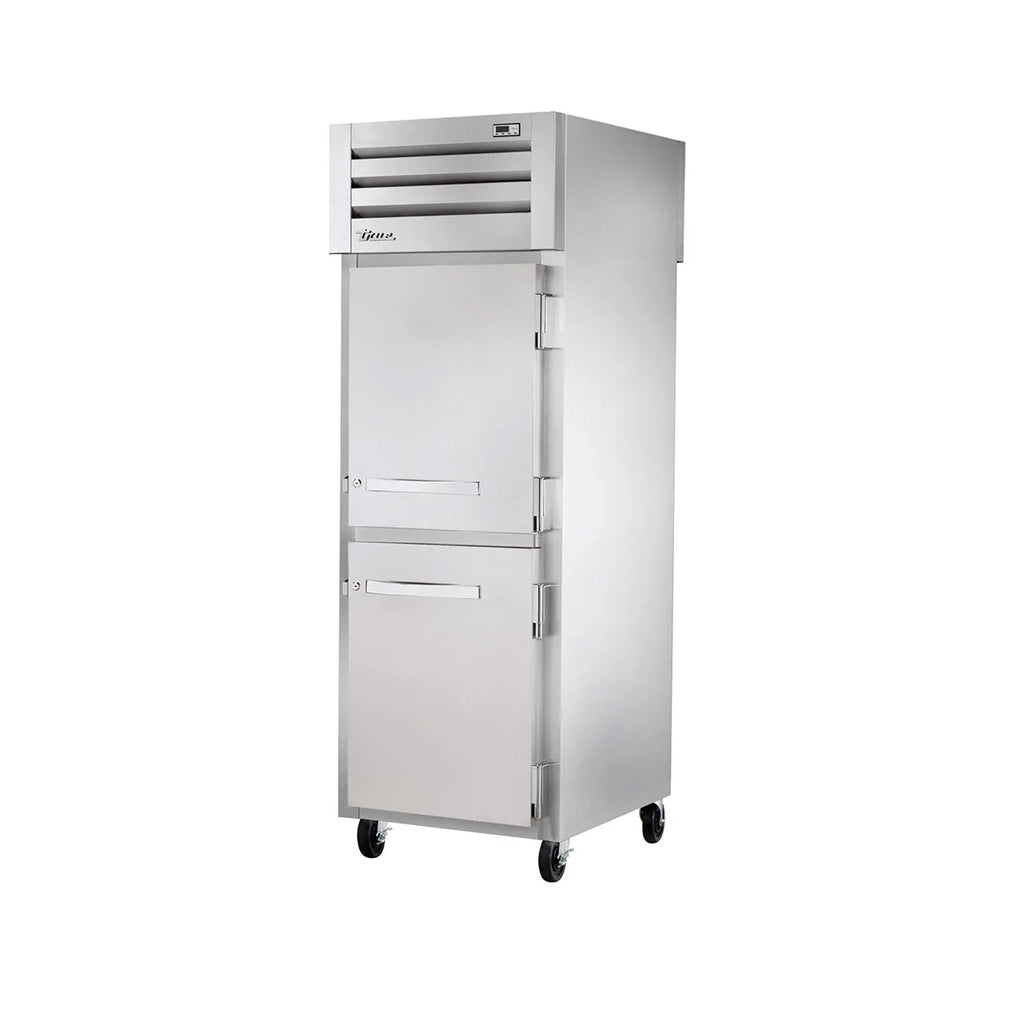

True STA1FPT-2HS-2HS, Commercial 27" Pass Thru Freezer Solid Door 1 Section

Since this True STA1FPT-2HS-2HS one-section pass-thru freezer has a top-mounted refrigeration system, it does not suck in dirt and debris from the floor. This system is also factory balanced to keep the cabinet at -10 degrees Fahrenheit. Keeping the unit cold, its self-contained capillary tube system holds and controls the flow of R404A refrigerant. To efficiently circulate air, the condenser and evaporator fan motors are electronically commutated, using less energy and creating less heat than traditional motors. This unit has an automatic defrost cycle that runs at a set time and stops when a specific temperature is reached. On the outside of the unit, the internal temperature is displayed in Fahrenheit or Celsius.

This True STA1FPT-2HS-2HS one-section pass-thru freezer's whole exterior—as well as its interior ceiling and floor—is made of stainless steel, which resists corrosion and cleans up quickly. The interior side walls and back are constructed of aluminum to resist scratches and dents, and all walls are insulated with Ecomate, which is a polyurethane foam. To provide the unit with movement, 5-inch-diameter castors are included. This unit has two half-doors that self-close and have magnetic gaskets to keep cold air inside. Doors are secured to the cabinet with four cam-lift hinges. To facilitate loading and unloading, these doors can stay open beyond 120 degrees. Metal handles help open the doors, while locks prevent theft.

Product Details

• Entire exterior, interior floor, and interior ceiling are made of stainless steel
• Interior side walls and the back are made of aluminum
• 3 chrome-plated wire shelves per section
• Insulated with a polyurethane foam called Ecomate
• 5-in.-diameter castors with a locking front set
• Interior is lit with LED lights
• Temperature is displayed externally in Fahrenheit or Celsius

Half-doors

• Magnetic gaskets snap into each door frame to seal cold air inside
• Close on their own
• Can stay open after 120 degrees for loading and unloading
• 4 external cam-lift hinges per section secure the door
• Locks protect the contents
• Metal handles create a comfortable grip when opening

Refrigeration System

• Evaporator fan motor stops during the defrost cycle
• Time-initiated, temperature-terminated defrost system runs automatically and uses little energy
• Top-mounted system minimizes the amount of dust sucked in
• Condenser and evaporator fan motors are electronically commutated, producing less heat and using less energy than other motors
• High-capacity, factory-balanced system maintains temperatures around -10 degrees F
• Self-contained capillary tube system regulates the flow of R404A refrigerant
• Epoxy-coated evaporator coil reduces corrosion buildup

Dimensions & Utilities

• 27¹⁄₂ in. W x 39¹⁄₈ in. D x 84¹⁄₈ in. H
• 8.7 A, ³⁄₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
