Description
True Refrigeration STA2F-4HS-HC Description

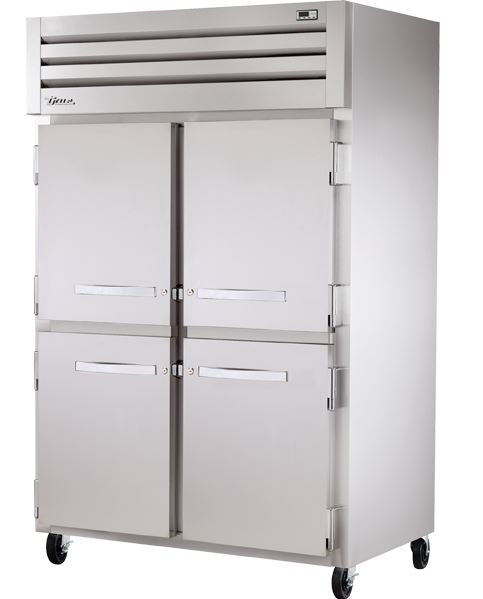

Providing two sections with reach-in access, the True STA2F-4HS-HC freezer is useful for storing a large volume of frozen food or ice cream at -10 degrees Fahrenheit. It's designed with Dutch doors, enabling users to access stored contents without releasing too much cold air from the freezer. Between its two sections, it features six shelves to provide support for product as it's kept cold. Made of wire, the shelves facilitate air circulation within the unit and are chrome plated for increased corrosion resistance. Circulating air with increased efficiency, this freezer features ECM style condenser and evaporator fans. Upon start up of the condensing fan motor, it runs in reverse for 20 seconds to blow dust and debris off the condenser coil. Because this coil is subjected to regular cleaning, the refrigeration system runs more efficiently and reduces energy consumption compared to those running with dirty components. This self-cleaning feature is designed to prolong the unit's lifespan, but it doesn't eliminate recommended maintenance procedures.
Its exterior is primarily made of stainless steel, lending the True STA2F-4HS-HC two section reach-in freezer durability and corrosion resistance in high-volume establishments. Facilitating setting adjustments, the unit's temperature control and exterior display panel are digital. Each self-closing door has a stay-open feature that activates when the door is opened beyond 120 degrees, while magnetic one-piece gaskets ensure air doesn't leak out when the doors are shut. For streamlined cleaning, the gaskets can be removed with no tools needed. This unit features LED interior lighting that's safety shielded to withstand wear and impact.
Product Details
- Part of the SPEC SERIES® line
- 2 section, reach-in unit
- Holding temperature: -10 degrees F
- 4 stainless steel Dutch doors
- Bolt-style door locks resist tampering
- Cam-lift hinges
- Heavy-duty door handles are all metal
- Digital temperature control with exterior display
- 6 heavy-duty, chrome-plated wire shelves
- Safety-shielded LED interior lighting
- Self-closing doors with positive seal and stay-open feature
- Doors, front, and sides are stainless steel
- Cabinet interior back and sides are aluminum
- Interior floor and ceiling are stainless steel
- Movement enabled with 5-in.-diameter plate casters (front casters lock)
- Removable magnetic door gaskets with 1-piece construction
- Solid doors and cabinet structure foamed in place with high-density polyurethane insulation
Refrigeration System
- Self-contained
- Top mounted to keep evaporator out of food zone
- Epoxy-coated evaporator
- Automatic defrost with timed initiation
- Evaporator fan automatically delays during defrost cycle
- Factory-balanced capillary tube system
- R290 hydrocarbon refrigerant
- Air circulates consistently with ECM style condenser and evaporator fan motors
- Reversing condenser fan motor keeps coil clean
Dimensions & Utilities
- 525⁄8 in. W x 333⁄4 in. D x 773⁄4 in. H
- 9.4 A, 11⁄4 HP
- 115 V/60 Hz/1-ph, 9-ft. cord with NEMA 5-15P plug
True Refrigeration STA2F-4HS-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Amps | 9.4 |
| Color | Silver |
| Compressor Location | Top |
| Depth (in) | 35.22 |
| Door Design | Half |
| Door Type | Solid |
| Exterior Construction | Stainless Steel |
| Height (in) | 84.13 |
| Hertz | 60 |
| Interior Construction | Aluminum |
| Sections | 2 |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Reach In |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor/7-year Compressor |
| Width (in) | 52.63 |
| Series | Spec Series® |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Rating | Spec |
| Product | Reach-In Freezers |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Hinge Configuration | Left/Right |
| Weight | 704.00 |
