True Refrigeration STA2H-2G Description

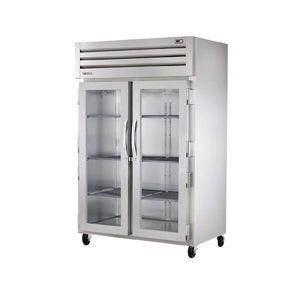

The True STA2H-2G Spec Series® reach-in mobile heated cabinet has a stainless steel and aluminum construction that resists corrosion, dents, and scratches. It holds cooked and baked food at a set temperature between 140 and 180 degrees Fahrenheit and cannot heat cold or ambient food. To supply movement, 5-inch-diameter castors are set in place, with the front set locking for stability. The walls are foamed with polyurethane insulation for temperature retention and structure.
This True STA2H-2G heated holding cabinet has a stainless steel heating element. Once the heat is consistently generated, low-velocity fans circulate hot air around the cabinet. A vent on top of the cabinet can be adjusted to control the humidity levels. Three chrome-plated wire shelves support product, and two low-e, double-pane glass doors provide insulation. Both doors are self-closing but can stay open past 120 degrees. To prevent theft, bolt-style locks are included.
Product Details
- Part of the Spec Series
- 6 chrome-plated wire shelves hold product
- 1 stainless steel heating element evenly produces heat
- Low-velocity fans consistently blow hot air around the cabinet
- Vent on top of the cabinet can be controlled manually to adjust humidity
- Doors are made of low-e, double-pane glass
- Bolt-style locks prevent theft and tampering
- Metal handles offer a sturdy grip
- Self-closing door design conserves energy and heat
- 120-degree stay-open doors aid in loading and unloading
- 1-piece magnetic gaskets can be removed without tools
- Digital display shows temperature in Fahrenheit or Celsius
- Temperature holding range: 140-180 degrees F
- Should have a dedicated sole-use circuit
- Comes with 3 feed wires for hardwiring at the installation site
Cabinet Construction
- Stainless steel exterior sides, front, and door
- Aluminum interior walls with stainless steel ceiling and floor
- Insulated with polyurethane foam to retain warm temperatures
- 5-in.-diameter castors with locking front set
- Intended to hold baked and cooked food, not to heat ambient or cold food
Dimensions & Utilities
- 525⁄8 in. W x 357⁄32 in. D x 841⁄8 in. H
- 3,000 W
- 208-240 V/60 Hz/1 ph
True Refrigeration STA2H-2G Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Application | Heat Only |
| Construction | Stainless/Aluminum |
| Controls | Digital |
| Depth (in) | 33.75 |
| Door Design | Full |
| Door Type | Glass |
| Heat | Electric |
| Height (in) | 77.75 |
| Hertz | 60 |
| kW | 3 |
| Pan Capacity | 6 |
| Sections | 2 |
| Size | Full Height |
| Slide Type | Universal |
| Type | Insulated |
| Voltage | 208/230 |
| Warranty | 3 years Parts & Labor |
| Width (in) | 52.63 |
| Series | SPEC SERIES® |
| Control Location | Top |
| Load Type | Reach In |
| No. of Doors | 2 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Weight | 605.00 |
