Description

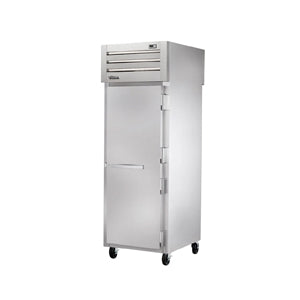

True Refrigeration STG1FPT-1S-1S Description
The True STG1FPT-1S-1S SPEC SERIES® pass-thru freezer has durable, stainless steel doors and a front with corrosion-resistant aluminum sides. For access from the front and back, the unit has a pass-thru design, while the interior consists of aluminum side walls and back with a stainless steel floor and ceiling. To retain cold air, the unit is insulated with environmentally friendly foamed-in-place polyurethane. Inside, three PVC-coated wire shelves provide storage space for products, and a digital display is located on the exterior for temperature monitoring.
Self-closing doors on the True STG1FPT-1S-1S pass-thru freezer stay open at a 120-degree angle to assist with loading product. Bolt-style door locks prevent theft, while the magnetic door gasket creates a seal around the doors. A top-mounted refrigeration system has a self-contained capillary tube system that uses R404A refrigerant to cool the unit, maintaining a temperature of -10 degrees Fahrenheit. Electronically commutated evaporator and condenser fan motors move a consistent air volume to produce less heat and conserve energy better than other motors.
Product Details
- Part of the SPEC SERIES
- Exterior constructed of stainless steel door and front with aluminum sides
- Interior constructed of aluminum side walls and back with stainless steel floor and ceiling
- 3 heavy-duty, PVC-coated wire shelves
- Environmentally friendly, foamed-in-place polyurethane insulation
- Self-closing doors stay open at 120 degrees
- Bolt-style door locks prevent theft
- Magnetic door gaskets are removable without tools
- 4 external, cam-lift door hinges
- Exterior digital display monitors temperature
- LED lighting illuminates the interior
- 5-in. plate castors have locks on the front set
Refrigeration System
- Self-contained capillary tube system
- Operating temperature: -10 degrees F
- Electronically commutated evaporator and condenser fan motors reduce energy consumption and offer more motor reliability
- Top-mounted to maximize interior capacity
- Time-initiated, temperature-terminated automatic defrost system
- Uses R404A refrigerant
Dimensions & Utilities
- 271⁄2 in. W x 391⁄8 in. D x 841⁄8 in. H
- 8.7 A, 3⁄4 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
True Refrigeration STG1FPT-1S-1S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Amps | 8.7 |
| Color | Silver |
| Compressor Location | Top |
| Depth (in) | 39.44 |
| Door Design | Full |
| Door Type | Solid |
| Exterior Construction | Stainless Steel |
| Height (in) | 84.13 |
| Hertz | 60 |
| Interior Construction | Aluminum |
| Sections | 1 |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Pass Thru |
| Voltage | 115 |
| Warranty | 3 years parts & labor/5 year compressor |
| Width (in) | 27.5 |
| Series | Spec Series® |
| Refrigerant | R404A |
| Phase | 1 |
| Rating | Spec |
| Product | Reach-In Freezers |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Hinge Configuration | Right |
| Weight | 410.00 |
