Description
True Refrigeration STG1FPT-2HS-2HS Description

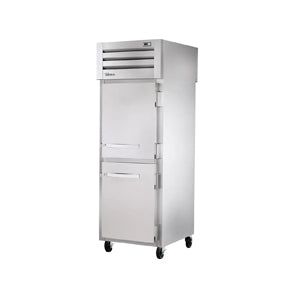

The True STG1FPT-2HS-2HS SPEC SERIES® pass-thru freezer has a top-mounted refrigeration unit with a capillary tube system, using R404A refrigerant to keep the cabinet cool at -10 degrees Fahrenheit. Electronically commutated evaporator and condenser fan motors move air throughout the unit for heat reduction. To provide the shortest defrost system possible, a time-initiated, temperature-terminated automatic defrost system eliminates frost. An external digital display enables users to monitor the temperature.
The True STG1FPT-2HS-2HS pass-thru freezer has an exterior constructed of a stainless steel front and doors with aluminum sides. Aluminum side walls and back in the interior provide corrosion resistant, while the stainless steel floor and ceiling are durable. Polyurethane insulation seals in cold air, and a magnetic door gasket forms a seal around the doors. Doors are self-closing and have a 120-degree, stay-open feature to prevent closing on users when loading product. Inside, three PVC-coated wire shelves maximize storage space, while LED lighting on the inside provides product visibility.
Product Details
- Part of the SPEC SERIES
- Stainless steel doors and front with aluminum sides on the exterior
- Interior aluminum side walls and back
- Stainless steel interior floor and ceiling
- Doors are self-closing with a 120-degree stay open feature for accessing products
- 4 external cam-lift door hinges per door
- Magnetic door gaskets can be removed for cleaning
- 3 PVC-coated wire shelves
- Polyurethane-insulated interior
- 5-in.-dia. castors have locks on the front set
- LED interior lighting
- Digital temperature display on the exterior
- Unit is pre-wired at factory
Refrigeration System
- Operating temperature: -10 degrees F
- Top-mounted refrigeration system with self-contained capillary tube system
- Uses R404A refrigerant
- Automatic defrost system is time initiated and temperature terminated
- Electronically commutated evaporator and condenser fan motors reduce heat production
Dimensions & Utilities
- 271⁄2 in. W x 391⁄8 in. D x 841⁄8 in. H
- 8.7 A, 3⁄4 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
True Refrigeration STG1FPT-2HS-2HS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Amps | 8.7 |
| Color | Silver |
| Compressor Location | Top |
| Depth (in) | 39.44 |
| Door Design | Half |
| Door Type | Solid |
| Exterior Construction | Stainless Steel |
| Height (in) | 84.13 |
| Hertz | 60 |
| Interior Construction | Aluminum |
| Sections | 1 |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Pass Thru |
| Voltage | 115 |
| Warranty | 3 years parts & labor/5 year compressor |
| Width (in) | 27.5 |
| Series | Spec Series® |
| Refrigerant | R404A |
| Phase | 1 |
| Rating | Spec |
| Product | Reach-In Freezers |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Hinge Configuration | Right |
