Description

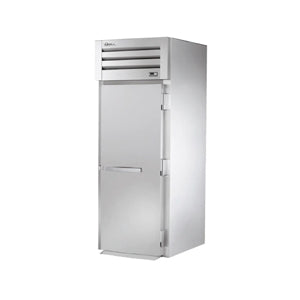

True Refrigeration STG1FRI-1S Description
The True STG1FRI-1S SPEC SERIES® roll-in freezer is equipped with a heavy-gauge, stainless steel ramp for loading tray racks containing product, while the durable stainless steel exterior has corrosion-resistant aluminum sides. Interior side walls and back are constructed of aluminum, while the floor and ceiling are constructed of stainless steel. Bumpers protect the interior from damage that may occur when rolling in racks, and the door and cabinet are insulated with foamed-in-place polyurethane to seal in cold air. To remain open at a 120-degree angle, the self-closing door has a stay-open feature
The True STG1FRI-1S roll-in freezer has a self-contained capillary tube system that uses environmentally friendly 404A refrigerant to ensure the unit maintains a temperature of -10 degrees Fahrenheit. Preventing an unauthorized user from tampering with the unit, the refrigeration system is top mounted. A time-initiated, temperature-terminated defrost system is automatic to prevent frost from gathering inside. For high-volume, low-velocity airflow throughout the unit, the sealed, cast iron evaporator fan motors are self-lubricated.
Product Details
- Part of the SPEC SERIES
- Stainless steel exterior has aluminum sides
- Interior side walls and back are constructed of aluminum with a stainless steel floor and ceiling
- Cabinet and door are insulated with foamed-in-place, high-density polyurethane
- Interior bumpers protect unit from dents and scratches
- Unit receives roll-in racks measuring 27 in. W x 29 in. D x 66 in. H
- 1 heavy-gauge, stainless steel ramp for rack loading
- Self-closing door with stay-open feature
- 3 cam-lift door hinges per door section
- 1-piece, magnetic door gasket seals the door and removes for cleaning
- Incandescent interior lighting is safety shielded
- Unit is pre-wired
Refrigeration System
- Self-contained, factory-engineered capillary tube system
- Top-mounted refrigeration system is out of reach of unauthorized users
- Operating temperature: -10 degrees F
- Extra-large evaporator coil, a high horsepower compressor, and large condenser keep the unit cool
- Sealed, cast iron evaporator fan motors are self-lubricating with large fan blades for faster temperature recovery
- Uses 404A refrigerant
- Time-initiated, temperature-terminated automatic defrost system
Dimensions & Utilities
- 35 in. W x 39 in. D x 84 in. H
- 12 A, 3⁄4 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
True Refrigeration STG1FRI-1S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Amps | 12 |
| Color | Silver |
| Compressor Location | Top |
| Depth (in) | 38.88 |
| Door Design | Full |
| Door Type | Solid |
| Exterior Construction | Stainless Steel |
| Height (in) | 84 |
| Hertz | 60 |
| Interior Construction | Aluminum |
| Sections | 1 |
| Supports | Frame |
| Thermometer Type | Digital |
| Type | Roll In |
| Voltage | 115 |
| Warranty | 3 years parts & labor/5 year compressor |
| Width (in) | 35 |
| Series | Spec Series® |
| Refrigerant | R404A |
| Phase | 1 |
| Rating | Spec |
| Product | Reach-In Freezers |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Hinge Configuration | Right |
| Weight | 470.00 |
