Description

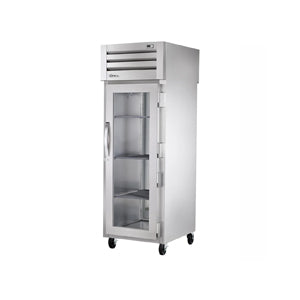

True Refrigeration STG1H-1G Description
The True STG1H-1G Spec Series® reach-in heated holding cabinet has one stainless steel element that efficiently generates heat, while low-velocity fans inside circulate air uniformly throughout the cabinet. This unit is intended to keep cooked and baked food warm. To control humidity levels, a vent on the top of the cabinet can be manually adjusted. With sides made of matching aluminum, the exterior door is made of stainless steel. Interior walls and back are aluminum while the floor and ceiling are constructed of stainless steel.
This True STG1H-1G heating holding cabinet's walls are foamed in place with polyurethane insulation, adding structure and ensuring temperatures remain at a set level between 140 and 180 degrees Fahrenheit. For product visibility and extra insulation, the unit has a low-e, double-pane glass door that has a metal handle and bolt lock to prevent theft. If left open at less than 120 degrees, the door closes on its own, while it can stay open past 120 degrees to help with loading and unloading. Product is held by three chrome-plate wire shelves, and the internal temperature is digitally displayed on the outside in Fahrenheit or Celsius.
Product Details
- Part of the Spec Series
- Stainless steel door and matching aluminum sides
- Aluminum interior walls and back with stainless steel ceiling and floor
- Foamed-in-place with polyurethane insulation, for structure
- 3 chrome-plated wire shelves support product
- 5-in.-diameter castors with locking front set
- Low-e, double-pane glass door with metal handle
- Bolt door lock prevents theft and tampering
- Door closes on its own and stays open past 120 degrees
- 1-piece magnetic gaskets create an airtight seal
- Temperature can be externally displayed in Fahrenheit or Celsius
- Requires a dedicated sole use circuit
Heater System
- For holding warm baked or cooked food, not for heating ambient or cold product
- Temperature holding range: 140-180 degrees F
- 1 stainless steel heating element evenly produces heat
- Low-velocity fans consistently circulate warm air throughout cabinet
- Top vent can be adjusted to control humidity levels
Dimensions & Utilities
- 271⁄2 in. W x 357⁄32 in. D x 841⁄8 in. H
- 1,500 W
- 208-230 V/60 Hz/1 ph, 9-ft. cord with a NEMA 6-15P plug
True Refrigeration STG1H-1G Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Application | Heat Only |
| Construction | Stainless/Aluminum |
| Controls | Digital |
| Depth (in) | 33.75 |
| Door Design | Full |
| Door Type | Glass |
| Heat | Electric |
| Height (in) | 77.75 |
| Hertz | 60 |
| kW | 1.5 |
| Pan Capacity | 3 |
| Sections | 1 |
| Size | Full Height |
| Slide Type | Universal |
| Type | Insulated |
| Voltage | 208/230 |
| Warranty | 3 years Parts & Labor |
| Width (in) | 27.5 |
| Series | SPEC SERIES® |
| Control Location | Top |
| Load Type | Reach In |
| No. of Doors | 1 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Weight | 350.00 |
