Description

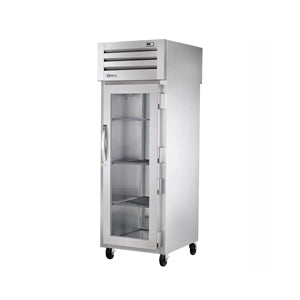

True Refrigeration STG1HPT-1G-1S Description
Full doors on the front and back of the True STG1HPT-1G-1S pass-thru heated cabinet enable staff to pass product through the unit. The front door is constructed of double-pane, thermal-insulated glass, while the rear door is constructed of solid stainless steel. To ensure loading product is convenient, the doors self-close before 120 degrees and stay open on their own past that point. The exterior has a stainless steel front with matching aluminum sides, while the interior has an aluminum back and side walls with a floor and ceiling constructed of stainless steel. Polyurethane insulation is foamed in place to provide structure and seal in heat.
The True STG1HPT-1G-1S heated cabinet is designed to hold warm, baked or cooked food and has a stainless steel heating element that is resistant to rust and uniformly generates electric heat. Temperatures range from 140 to 180 degrees Fahrenheit, and a manually controlled vent on top of the cabinet limits humidity. Featuring an external temperature display with readouts in Fahrenheit or Celsius, this unit has a heating system controlled by an exterior on/off switch and an electronic temperature control.
Product Details
- Stainless steel front with matching aluminum sides on the exterior
- Aluminum interior side walls and back with stainless steel floor and ceiling
- 3 wire shelves are chrome plated
- Double-pane, thermal-insulated glass front door
- Stainless steel rear door
- Doors self-close but remain open past 120 degrees
- 4 cam-lift hinges per door section
- Magnetic door gaskets ensure doors are sealed to the frame
- Bolt door locks reduce theft
- Metal handles on each door
- Designed to hold cooked or baked food that is already warm
- Insulated with polyurethane that is foamed in place
- 5-in.-diameter castors with locks on the front set
Heater System
- Stainless steel heating element resists rust
- Temperature range: 140-180 degrees F
- Manually controlled vent reduces humidity
- On/off switch with an electronic temperature control
- Exterior temperature display in Fahrenheit or Celsius
Dimensions & Utilities
- 271⁄2 in. W x 397⁄16 in. D x 841⁄8 in. H
- 1500 W
- 208-240 V/60 Hz/1 ph, 9-ft. cord with a NEMA 6-15P
True Refrigeration STG1HPT-1G-1S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Application | Heat Only |
| Construction | Stainless/Aluminum |
| Controls | Digital |
| Depth (in) | 36.13 |
| Door Design | Full |
| Door Type | Glass |
| Heat | Electric |
| Height (in) | 77.75 |
| Hertz | 60 |
| kW | 1.5 |
| Pan Capacity | 3 |
| Sections | 1 |
| Size | Full Height |
| Slide Type | Universal |
| Type | Insulated |
| Voltage | 208/230 |
| Warranty | 3 years Parts & Labor |
| Width (in) | 27.5 |
| Series | SPEC SERIES® |
| Control Location | Top |
| Load Type | Pass Thru |
| No. of Doors | 2 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Wa |
