Description
True Refrigeration STG1HPT-1S-1S Description

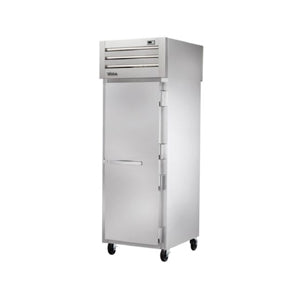

The True STG1HPT-1S-1S pass-thru heated cabinet has a heating system that is controlled by an on/off switch and an electronic temperature control. Its stainless steel heating element provides uniform electric heat, giving the unit a temperature range of 140 to 180 degrees Fahrenheit. Enabling users to reduce humidity, a vent is located on top of the cabinet, and foamed-in-place polyurethane insulation retains heat and adds structure.
A pass-thru design enables food to be loaded and unloaded on either side of this True STG1HPT-1S-1S heated cabinet. Solid front and rear doors constructed of durable stainless steel have bolt-style door locks and metal handles. These doors remain open past a 120-degree angle and self-close if opened less than 120 degrees. The exterior has a stainless steel front with aluminum sides, and the interior has aluminum side walls and back with a stainless steel ceiling and floor. In the cabinet, three chrome-plated wire shelves provide storage space for product.
Product Details
- Exterior has a stainless steel front with aluminum sides that match
- Interior has aluminum side walls and back for corrosion resistance
- Durable interior stainless steel floor and ceiling
- Stainless steel front and rear door with bolt-style door locks
- Each door is equipped with metal handles
- Doors self-close but stay open past 120 degrees
- 1-piece magnetic door gaskets are removable without tools
- Foamed-in-place polyurethane insulation prevents heat from escaping
- 3 chrome-plated wire shelves
- 5-in.-diameter castors with front locks provide mobility and stability
Heater System
- Vent is controlled manually to limit humidity
- Rust-resistant stainless steel heating element
- Temperature range: 140-180 degrees F
- Heat system is regulated by an exterior on/off switch and electronic temperature control
- Temperature display on the exterior shows in Fahrenheit or Celsius
Dimensions & Utilities
- 271⁄2 in. W x 397⁄16 in. D x 841⁄8 in. H
- 1500 W
- 208-240 V/60 Hz/1 ph, 9-ft. cord with a NEMA 6-15P plug
True Refrigeration STG1HPT-1S-1S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Application | Heat Only |
| Construction | Stainless/Aluminum |
| Controls | Digital |
| Depth (in) | 36.13 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 77.75 |
| Hertz | 60 |
| kW | 1.5 |
| Pan Capacity | 3 |
| Sections | 1 |
| Size | Full Height |
| Slide Type | Universal |
| Type | Insulated |
| Voltage | 208/230 |
| Warranty | 3 years Parts & Labor |
| Width (in) | 27.5 |
| Series | SPEC SERIES® |
| Control Location | Top |
| Load Type | Pass Thru |
| No. of Doors | 2 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Weight | 400.00 |
