Description
True Refrigeration STG1HRT89-1S-1S Description

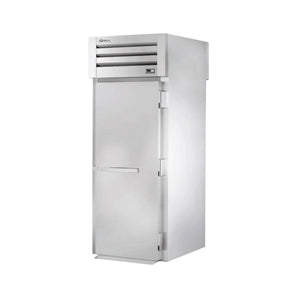

The True STG1HRT89-1S-1S Spec Series® roll-thru heated cabinet stays between 140 and 180 degrees Fahrenheit with two stainless steel heating elements and low-velocity fans. Its color-coded thermostat shows accurate temperature readings on the outside. Humidity levels can be controlled with a top vent and an included water pan. This unit is designed to hold warm cooked and baked food. It is constructed of stainless steel and aluminum and foamed with polyurethane insulation for structure.
The True STG1HRT89-1S-1S heated holding cabinet has a roll-thru design made possible with two stainless steel ramps. The internal walls are protected from cart and rack damage with bumpers. This unit has two doors with metal handles for comfort and bolt-style locks for protecting contents. There are six cam-lift hinges that enable the doors to close on their own and remain open past 120 degrees. Magnetic gaskets snap into the door frames to prevent warm air from escaping while incandescent lights brighten the interior.
Product Details
- Part of the Spec Series
- 2 stainless steel doors with metal handles
- Bolt-style locks prevent theft
- Cam-lift hinges enable doors to keep open past 120 degrees and close on their own under 120 degrees
- Magnetic gaskets snap into the door frames and are removable without tools
- Interior is brightened with incandescent lights
- 12-in. x 20-in. water pan included for additional humidity
- Requires a dedicated, sole-use circuit
Heater System
- Temperature range: 140-180 degrees F
- Designed for holding warm baked and cooked food
- 2 stainless steel heating elements provide electric heat
- Low-velocity fans disperse warm air around the cabinet
- Top vent can be controlled manually to adjust the humidity level
- Color-coded thermostat displays precise temperature
Cabinet Construction
- Exterior sides are aluminum with a matching stainless steel door
- Interior ceiling and floor are stainless steel with aluminum walls and back
- Filled with polyurethane insulation
- 2 heavy-gauge, stainless steel ramps
- Accepts racks measuring 27-in. W x 29-in. D x 72-in. H (sold separately)
- Bumpers line the interior walls and protect the unit against damage from carts and racks
Dimensions & Utilities
- 35 in. W x 453⁄8 in. D x 893⁄4 in. H
- 2,000 W
- 115, 208-240 V/60 Hz/1 ph, 9-ft. cord with a NEMA 14-20P plug
True Refrigeration STG1HRT89-1S-1S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Application | Heat Only |
| Construction | Stainless/Aluminum |
| Controls | Digital |
| Depth (in) | 37.5 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 88.75 |
| Hertz | 60 |
| kW | 2 |
| Pan Capacity | 1 Rack |
| Sections | 1 |
| Size | Full Height |
| Slide Type | Universal |
| Type | Insulated |
| Voltage | 208/230 |
| Warranty | 3 years Parts & Labor |
| Width (in) | 35 |
| Series | SPEC SERIES® |
| Control Location | Top |
| Load Type | Roll Thru |
| No. of Doors | 2 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Weight | 450.00 |
