Description

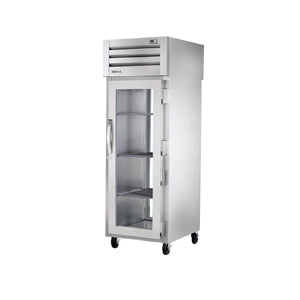

True Refrigeration STG1R-1G-HC Description
The True STG1R-1G-HC SPEC SERIES® reach-in refrigerator has a one-section design constructed of a stainless steel front with aluminum sides. Thermal insulated to retain heat, the stainless steel door has double-pane glass that provides visibility while the self-closing door stays open at 120 degrees. Interior aluminum side walls and back are resistant to corrosion, and the stainless steel floor and ceiling are durable. The interior is insulated with high-density, foamed-in-place polyurethane. Inside, three PVC-coated wire shelves maximize storage space, and the digital temperature control lets users monitor the temperature. LED lighting illuminates the interior for product visibility, and 5-inch castors enable maneuvering.
The top-mounted refrigeration system on the True STG1R-1G-HC reach-in refrigerator is out of reach of unauthorized employees to prevent tampering, and it has a self-contained capillary system that uses R290 hydrocarbon refrigerant to help the cabinet maintain a set temperature from 33 to 38 degrees Fahrenheit. The unit's reverse condensing fan motor changes direction for 20 seconds each time the compressor cycles on. This helps keep the condensing coil clean by blowing away dust, dirt, and debris. To extend the unit's life and help it operate more effectively, routine maintenance should still be performed.
Product Details
- Part of the SPEC SERIES
- Durable stainless steel front with aluminum sides
- Aluminum side walls and back in the interior
- Stainless steel floor and ceiling inside provide durability
- Low-E, double-pane glass is thermal insulated to retain heat
- Stainless steel door has an all-metal door handle and bolt-style door lock
- Door stays open at 120 degrees
- Magnetic door gaskets are removable without tools
- Interior insulated with foamed-in-place, high-density polyurethane
- 3 PVC-coated wire shelves are heavy duty for storage space
- Exterior digital temperature display enables users to monitor temperatures
- 5-in.-dia. plate castors
- LED interior lighting
- Unit is pre-wired at factory
Refrigeration System
- Top-mounted refrigeration system with electronic control
- Self-contained capillary tube system
- Uses R290 hydrocarbon refrigerant
- Temperature range: 33-38 degrees F
- Electronically commutated evaporator and condenser fan motors move a consistent volume of air
- Automatic reverse condensing fan motor cleans the condensing coil
Dimensions & Utilities
- 271⁄2 in. W x 351⁄4 in. D x 841⁄8 in. H
- 3.8 A, 1⁄4 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
True Refrigeration STG1R-1G-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Additional Info | Contact Customer Service for Additional Information |
| Color | Silver |
| Compressor Location | Top |
| Depth (in) | 33.75 |
| Door Type | Glass |
| Doors | Full |
| Evaporator Type | Capillary Tube |
| Height (in) | 77.75 |
| Hertz | 60 |
| Interior Material | Aluminum |
| Sections | 1 |
| Number of Shelves | 3 |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Reach In |
| Voltage | 115 |
| Warranty | 3 year parts & labor; 7 year compressor |
| Width (in) | 27.5 |
| Series | Spec Series® |
| Refrigerant | R290 (Hydrocarbon) |
| No. of Doors | 1 |
| Phase | 1 |
| Rating | Spec |
| Product | Reach-In Refrigerators |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Hinge Configuration | Right |
| Weight | 510.00 |
