Description
True Refrigeration STG2F-4HS-HC Description

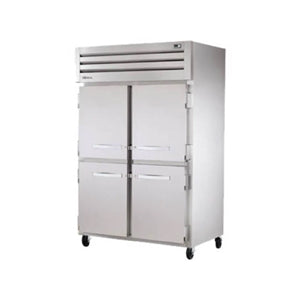

To keep stored items organized and enhance the use of vertical space, this True STG2F-4HS-HC reach-in two section freezer contains six wire shelves in its cabinet. The shelves are split evenly between the two sections and coated with gray PVC to resist corrosion during heavy use. Brightening the interior and resisting impact damage, safety-shielded LEDs are installed inside the unit. It stands 773⁄4 inches high and maintains a temperature of -10 degrees Fahrenheit to preserve the integrity of frozen foods and ice cream. For precise access with reduced energy loss, the unit is designed with four self-closing Dutch doors that have bolt-style locks to secure product from theft or tampering.
Every time the condenser fan motor turns on in this unit, it blows in reverse for 20 seconds to remove excess dust and debris from the coil. When this component is regularly cleaned, it reduces the unit's energy consumption and promotes efficient system operation. It also helps the system keep stored items at the coldest temperatures possible to maintain freshness. Even though this self-cleaning feature doesn’t eliminate the need for routine maintenance procedures, it does increase the lifespan of the unit.,/p>
The True STG2F-4HS-HC two section reach-in freezer has stainless steel doors and front exterior, with aluminum sides. Inside, it's designed with aluminum back and side walls with a stainless steel floor and ceiling. For monitoring and setting adjustments, the unit's temperature control and exterior display are digital. Mounted on cam-lift hinges, the doors have heavy-duty all metal handles and removable magnetic door gaskets that ensure a tight closure. Providing cabinet insulation and structure, the freezer is made with foamed-in-place high-density polyurethane foam.
Product Details
- Part of the SPEC SERIES® line
- 2 section, reach-in unit
- Holding temperature: -10 degrees F
- 4 stainless steel Dutch doors
- Tampering resisted with bolt-style door locks
- Cam-lift hinges
- All-metal door handles are heavy duty
- Digital temperature control and exterior display
- 6 heavy-duty, gray PVC-coated wire shelves
- LED interior lighting is safety shielded
- Positive sealing, self-closing doors with stay-open feature
- Doors and front are stainless steel
- Aluminum exterior sides
- Cabinet interior has aluminum back and side walls
- Stainless steel floor and ceiling
- 5-in.-diameter plate casters (front casters lock)
- 1-piece removable door gaskets are magnetic
- High-density cabinet and doors feature polyurethane foam insulation
Refrigeration System
- Self-contained
- Evaporator is kept out of food zone with top-mounted placement
- Epoxy-coated evaporator
- Time-initiated automatic defrost
- Automatic evaporator fan delay during defrost
- Factory-balanced capillary tube system
- Operates with R290 hydrocarbon refrigerant
- Condenser and evaporator fan motors are ECM for consistent air circulation
- Fan motor reverses for 20 seconds when it turns on to clean dust off coil
Dimensions & Utilities
- 525⁄8 in. W x 333⁄4 in. D x 773⁄4 in. H
- 9.4 A, 11⁄4 HP
- 115 V/60 Hz/1-ph, 9-ft. cord with NEMA 5-15P plug
True Refrigeration STG2F-4HS-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Amps | 9.4 |
| Color | Silver |
| Compressor Location | Top |
| Depth (in) | 35.22 |
| Door Design | Half |
| Door Type | Solid |
| Exterior Construction | Stainless Steel |
| Height (in) | 84.13 |
| Hertz | 60 |
| Interior Construction | Aluminum |
| Sections | 2 |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Reach In |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor/7-year Compressor |
| Width (in) | 52.63 |
| Series | Spec Series® |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Rating | Spec |
| Product | Reach-In Freezers |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Hinge Configuration | Left/Right |
| Weight | 704.00 |
