Description
True Refrigeration STG2FRI-2S Description

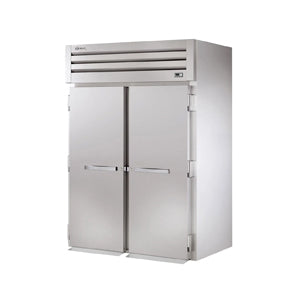

The True STG2FRI-2S two-section freezer has two doors made of stainless steel, which resists corrosion and dents. Its metal handles offer a comfortable grip when opening and bolt locks keep contents safe. The doors are self-closing to prevent cold air from escaping and they stay open past 120 degrees to simplify loading and unloading. There are three cam lift hinges per section to secure the doors to the cabinet. Magnetic gaskets have a one-piece construction and snap into the frame to prevent cold air from leaking out.
With a top-mounted refrigeration system, this roll-in freezer does not suck in as much dirt and debris from the floor as a bottom-mounted unit. Its backguard improves airflow, and its cast iron evaporator fan motors with large fan blades recover temperatures quickly. This unit has a self-contained capillary tube system that holds and controls the flow of R404A refrigerant, which keeps the inside at or around -10 degrees Fahrenheit. To prevent the evaporator coil from frosting, an automatic defrost cycle runs at a set time and stops when a certain temperature is reached.
To keep temperatures cold, this True STG2FRI-2S freezer's walls are foamed with polyurethane insulation. Its exterior sides are aluminum to match the doors. Its interior ceiling and floor are made of stainless steel to resist corrosion and its interior back and walls are made of aluminum to resist dents and scratches. It has one heavy-gauge stainless steel ramp to help roll carts and racks inside, and bumper guards protect the interior walls from damage. Finding product is simple since the interior is illuminated with incandescent lighting.
Product Details
- Exterior aluminum sides match the doors
- Interior walls and back are made of aluminum
- Interior ceiling and floor are made of corrosion-resistant stainless steel
- Polyurethane foam insulates cabinet for temperature retention and structure
- 1 heavy-gauge stainless steel ramp
- Accepts racks measuring 27 in. L x 29 in. D x 66 in. H (sold separately)
- Digital display shows temperature in Fahrenheit or Celsius
- Bumpers guard walls from damage from carts and racks
- Interior is lit with incandescent lighting
2 Doors
- Stainless steel construction resists corrosion and dents
- Bolt locks prevent theft
- Metal handle provides a sturdy grip when opening
- Self-closing to prevent cold air from escaping
- Stays open past 120 degrees to help with loading and unloading
- 3 cam lift door hinges per section secure door to cabinet
- 1-piece magnetic gaskets prevent cold air leaks
Refrigeration System
- Improved airflow with backguard
- Evaporator is coated with epoxy for corrosion resistance
- Self-contained capillary tube system holds and monitors the flow of R404A refrigerant
- Maintained temperature: -10 degrees F
- High-horsepower compressor with extra-large evaporator coil and large condenser ensure food is kept frozen
- Sealed, self-lubricating, cast iron evaporator fan motors with large fan blades recover temperatures quickly
- Top mounted to stay out of the food zone
- Defrost system runs automatically at a set time and stops when the set temperature is reached
- Evaporator fan motor stops during defrost cycle
Dimensions & Utilities
- 68 in. W x 39 in. D x 843⁄4 in. H
- 8 A, 11⁄5 HP
- 115, 208-230 V/60 Hz/1 ph, 9-ft. cord with a NEMA 14-20P plug
True Refrigeration STG2FRI-2S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Amps | 8 |
| Color | Silver |
| Compressor Location | Top |
| Depth (in) | 38.88 |
| Door Design | Full |
| Door Type | Solid |
| Exterior Construction | Stainless Steel |
| Height (in) | 84 |
| Hertz | 60 |
| Interior Construction | Aluminum |
| Sections | 2 |
| Supports | Frame |
| Thermometer Type | Digital |
| Type | Roll In |
| Voltage | 115/208/230 |
| Warranty | 3 years parts & labor/5 year compressor |
| Width (in) | 68 |
| Series | Spec Series® |
| Refrigerant | R404A |
| Phase | 1 |
| Rating | Spec |
| Product | Reach-In Freezers |
| Product Type | Commercial Refrigeration |
| NEMA | L14-20P |
| Hinge Configuration | Left/Right |
| Weight | 690.00 |
