Description

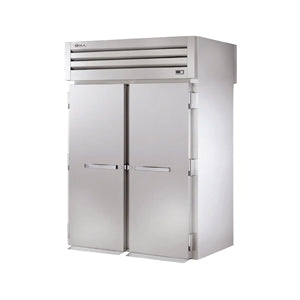

True Refrigeration STG2HRT-2S-2S Description
Since it has a roll-thru design, this True STG2HRT-2S-2S Spec Series® two-section heated cabinet has four ramps—one for each door—that enable carts and racks to be rolled through, connecting the front of house to the back of house. Its stainless steel and aluminum construction resists corrosion and dents, and for structure, its walls are foamed with polyurethane insulation. Interior bumpers protect the walls from dents and scratches caused by racks and carts.
Incandescent lighting brightens the interior, while each of the four stainless steel doors have one-piece magnetic gaskets to prevent warm air from seeping out. All doors close on their own to conserve energy, stay open past 120 degrees, have metal handles, and have bolt-style locks to protect contents. This True STG2HRT-2S-2S roll-thru heated holding cabinet keeps baked and cooked food warm with two stainless steel heating elements that uniformly generate heat, keeping temperatures at a set level between 140 and 180 degrees Fahrenheit. Low-velocity fans evenly distribute warm air around the cabinet, and a top vent can be adjusted to control humidity levels.
Product Details
- Part of the Spec Series
- 4 stainless steel doors have magnetic gaskets to keep warm air inside
- Door locks prevent theft and tampering
- Metal door handles provide a sturdy grip when opening
- 120-degree, stay-open feature facilitates loading and unloading
- Doors close on their own when left open before 120 degrees
- Incandescent lights illuminate interior
- Requires a dedicated sole use circuit
Heater System
- Intended to hold warm cooked and baked food
- Temperature holding range: 140-180 degrees F
- 2 stainless steel heating elements
- Low-velocity fans consistently circulate air around cabinet
- Top vent controls humidity levels
- Color-coded display shows a precise temperature reading
- 12-in. x 20-in. water pan included for additional humidity
Cabinet Construction
- Stainless steel exterior door has matching aluminum sides
- Interior back and walls are made of aluminum with stainless steel floor and ceiling
- Polyurethane foam insulation adds structure
- 4 stainless steel ramps enable racks and carts to be rolled in
- Accepts 27-in. W x 29-in. D x 66-in. H racks (sold separately)
- Interior bumpers guard walls and prevent damage from racks and carts
Dimensions & Utilities
- 68 in. W x 453⁄4 in. D x 843⁄4 in. H
- 4,000 W
- 115, 208-240 V/60 Hz/1 ph, NEMA 14-20P plug
True Refrigeration STG2HRT-2S-2S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Application | Heat Only |
| Construction | Stainless/Aluminum |
| Controls | Digital |
| Depth (in) | 37.5 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 83.75 |
| Hertz | 60 |
| kW | 4 |
| Pan Capacity | 2 Racks |
| Sections | 2 |
| Size | Full Height |
| Slide Type | Universal |
| Type | Insulated |
| Voltage | 208/230 |
| Warranty | 3 years Parts & Labor |
| Width (in) | 68 |
| Series | SPEC SERIES® |
| Control Location | Top |
| Load Type | Roll Thru |
| No. of Doors | 4 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equi |
