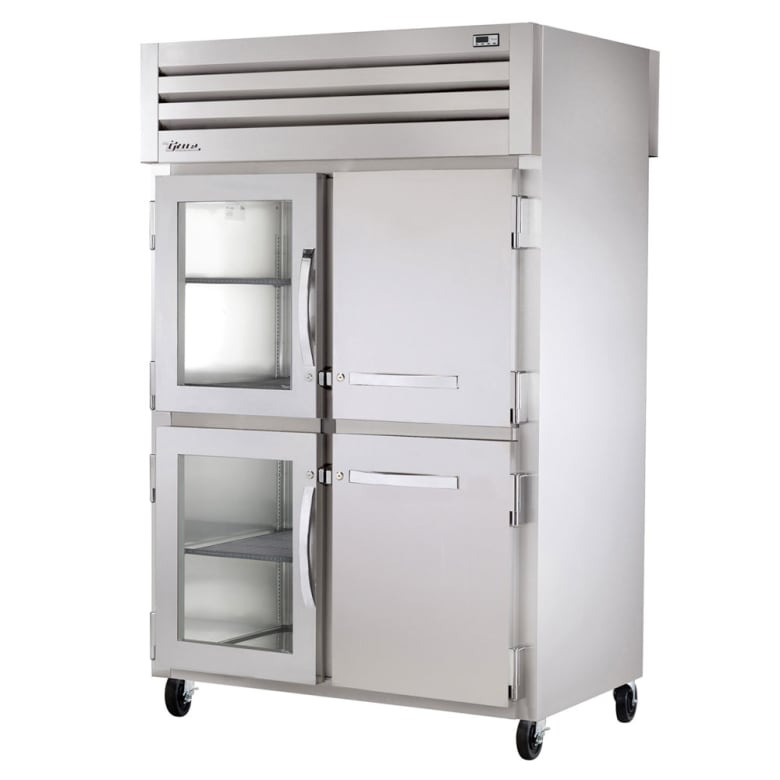

True Refrigeration STG2RPT-2HG/2HS-2S-HC Description
The refrigeration system in the True STG2RPT-2HG/2HS-2S-HC two-section pass-thru refrigerator is top mounted, meaning it operates far from dirt and debris on the floor. Because the evaporator is out of the food zone, this placement maximizes storage space, though components are hard to reach for maintenance. Eco-friendly R290 hydrocarbon refrigerant is used to keep a set temperature from 33 to 38 degrees Fahrenheit.
When the unit's compressor turns on, the condensing fan motor blows air in reverse toward the condensing coil. This self-cleaning mechanism helps remove debris from the coil automatically, enabling it to operate more without using as much energy. Users should continue to implement preventive maintenance for the coil to confirm it's performing correctly.
Front and rear doors on the refrigerator create a pass-thru design for flexibility from the back of the house to the front. The front has two thermal-insulated, double-pane glass half doors and two stainless steel half doors that enable users to access the refrigerator's two sections in smaller segments for reduced cold air leaks. These doors self-close to retain cold air, stay open past 120 degrees, and lock to secure stored items.
A PVC coating on the six wire shelves provides corrosion resistance, and gaps in the wire shelves promote even air circulation around the stored product. Insulation is foamed in place in the refrigerator to retain cold air and enhance structural stability. Castors on this True STG2RPT-2HG/2HS-2S-HC two-section reach-in refrigerator provide mobility for cleaning underneath, and the front castor set locks to keep the unit in place when needed.
Product Details
- 6 wire shelves resist corrosion with a PVC coating
- LED interior lighting enhances item visibility
- Aluminum interior back wall and sides are strong and corrosion resistant
- Stainless steel interior ceiling and floor simplifies cleaning
- Exterior front is stainless steel with matching aluminum sides
- Polyurethane insulation is foamed in place to retain cold air
- 5-in. castors have a locking front set
- Part of the Spec Series®
Pass-thru Doors
- Front has 2 glass half doors and 2 stainless steel half doors
- Rear has 2 stainless steel full doors
- Self-close to keep cold air around stored items
- Stay open past 120 degrees so users can stock the cabinet
- Bolt-style locks reduce theft and tampering risks
- All-metal handles withstand high-volume use
- 1-piece, magnetic door gaskets are removable without tools
Refrigeration System
- Temperature holding range: 33-38 degrees F
- External temperature displays in Fahrenheit or Celsius
- Fan motors are efficient, reducing heat production and energy consumption
- Compressor start up turns on reverse condensing fan motor technology for 20 seconds
- Uses R290 hydrocarbon refrigerant
- Top mounted to prevent dirt and debris on the floor from getting sucked in
- Evaporator resists corrosion with an epoxy coating
Dimensions & Utilities
- 525⁄8 in. W x 391⁄2 in. D x 841⁄8 in. H
- 5.9 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
