Description

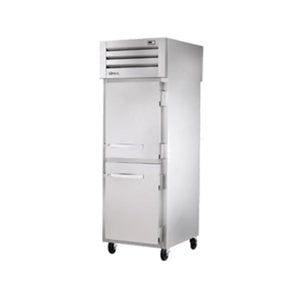

True Refrigeration STR1FPT-2HS-2HS Description
Half doors on the front and back of the True STR1FPT-2HS-2HS Spec Series® single-section freezer create a pass-thru design for access from either side, connecting the front of the house with the back of the house. Each solid door is made of stainless steel, self-closing before 120 degrees and staying open past. These doors have locks to secure stored items. For product organization, the unit includes three adjustable chrome shelves, while the interior is illuminated by LED lighting. This freezer is made of stainless steel to resist corrosion, provide strength, and simplify cleaning.
This True STR1FPT-2HS-2HS one-section pass-thru freezer maintains -10 degrees Fahrenheit, which operators can monitor on the exterior display. Its top-mounted refrigeration system maximizes storage space in the cabinet, though the components can be difficult to access. Fan motors in the unit are electronically commutated, so they operate efficiently while reducing heat production and energy consumption.
Product Details
- Part of the Spec Series
- 3 chrome, adjustable shelves
- Durable, rust-resistant stainless steel interior and exterior
- LED lighting increases cabinet visibility
- 2 solid half doors on the front and back provide pass-thru access
- Self-closing door retains cold air
- Stay-open feature keeps the doors open past 120 degrees
- Bolt-style door locks reduce the risk of theft and tampering
- Foamed-in-place polyurethane insulation prevents cold air from leaking
- 5-in. castors have a locking front set
Self-contained Refrigeration System
- Operating temperature: -10 degrees F
- External temperature display reads in Fahrenheit or Celsius
- Uses R404A refrigerant
- Electronically commutated fan motors reduce heat production and energy consumption
- Top mounted to prevent dirt and debris from being pulled inside the components
- Automatic, time-initiated, temperature-terminated defrost cycles
Dimensions & Utilities
- 271⁄2 in. W x 397⁄16 in. D x 841⁄8 in. H
- 8.7 A, 3⁄4 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
True Refrigeration STR1FPT-2HS-2HS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Amps | 8.7 |
| Color | Silver |
| Compressor Location | Top |
| Depth (in) | 39.44 |
| Door Design | Half |
| Door Type | Solid |
| Exterior Construction | Stainless Steel |
| Height (in) | 84.13 |
| Hertz | 60 |
| Interior Construction | Stainless Steel |
| Sections | 1 |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Pass Thru |
| Voltage | 115 |
| Warranty | 3 years parts & labor/5 year compressor |
| Width (in) | 27.5 |
| Series | Spec Series® |
| Refrigerant | R404A |
| Phase | 1 |
| Rating | Spec |
| Product | Reach-In Freezers |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Hinge Configuration | Right |
| Weight | 410.00 |
