Description
True Refrigeration STR1FRI-1S Description

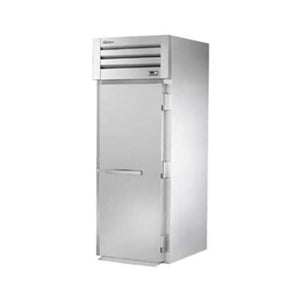

The True STR1FRI-1S Spec Series® single-section roll-in freezer accepts a 27-inch-by-29-inch-by-66-inch rack, which can be rolled in and out of the cabinet on the ramp. Bumpers protect the cabinet interior from damage caused by the rack, while LED lighting increases cabinet visibility. Solid and self-closing, the door stays open past 120 degrees so users can load and unload racks without the door getting in the way. Made of stainless steel, this unit is strong, rust resistant, and simplifies cleaning. Cabinet insulation is foamed in place to provide structural stability and retain cold air.
Using R404A refrigerant, the temperature in the True STR1FRI-1S one-section roll-in freezer stays at -10 degrees Fahrenheit. Operators can monitor temperatures on the exterior display, which can be set to show in Fahrenheit or Celsius. The refrigeration system is mounted in the top of the cabinet, increasing interior space and preventing components from pulling in dust and dirt from the kitchen floor.
Product Details
- Part of the Spec Series
- Accommodates (1) 27-in. W x 29-in. D x 66-in. H rack
- Stainless steel ramp simplifies loading and unloading racks into the cabinet
- Interior bumpers protect walls from scratches and dents caused by racks
- LED lighting provides visibility in the cabinet
- Durable stainless steel interior and exterior resist corrosion and simplify cleanup
- 1 solid, stainless steel door self-closes to trap cold air
- Door stays open past 120 degrees for stocking and cleaning
- Bolt-style door lock prevents unauthorized tampering
- Foamed-in-place polyurethane insulation
- 5-in. castors including a locking front set
Self-contained Refrigeration System
- Operating temperature: -10 degrees F
- Exterior temperature display in Fahrenheit or Celsius
- Cools with R404A refrigerant
- Electronically commutated fan motors lower heat production and save energy
- Top-mounted placement protects components from dirt and debris on the floor
- Time-initiated, temperature-terminated defrosting runs automatically
Dimensions & Utilities
- 35 in. W x 39 in. D x 84 in. H
- 12 A, 3⁄4 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
True Refrigeration STR1FRI-1S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Amps | 12 |
| Color | Silver |
| Compressor Location | Top |
| Depth (in) | 38.88 |
| Door Design | Full |
| Door Type | Solid |
| Exterior Construction | Stainless Steel |
| Height (in) | 84 |
| Hertz | 60 |
| Interior Construction | Stainless Steel |
| Sections | 1 |
| Supports | Frame |
| Thermometer Type | Digital |
| Type | Roll In |
| Voltage | 115 |
| Warranty | 3 years parts & labor/5 year compressor |
| Width (in) | 35 |
| Series | Spec Series® |
| Refrigerant | R404A |
| Phase | 1 |
| Rating | Spec |
| Product | Reach-In Freezers |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Hinge Configuration | Right |
| Weight | 410.00 |
