Description

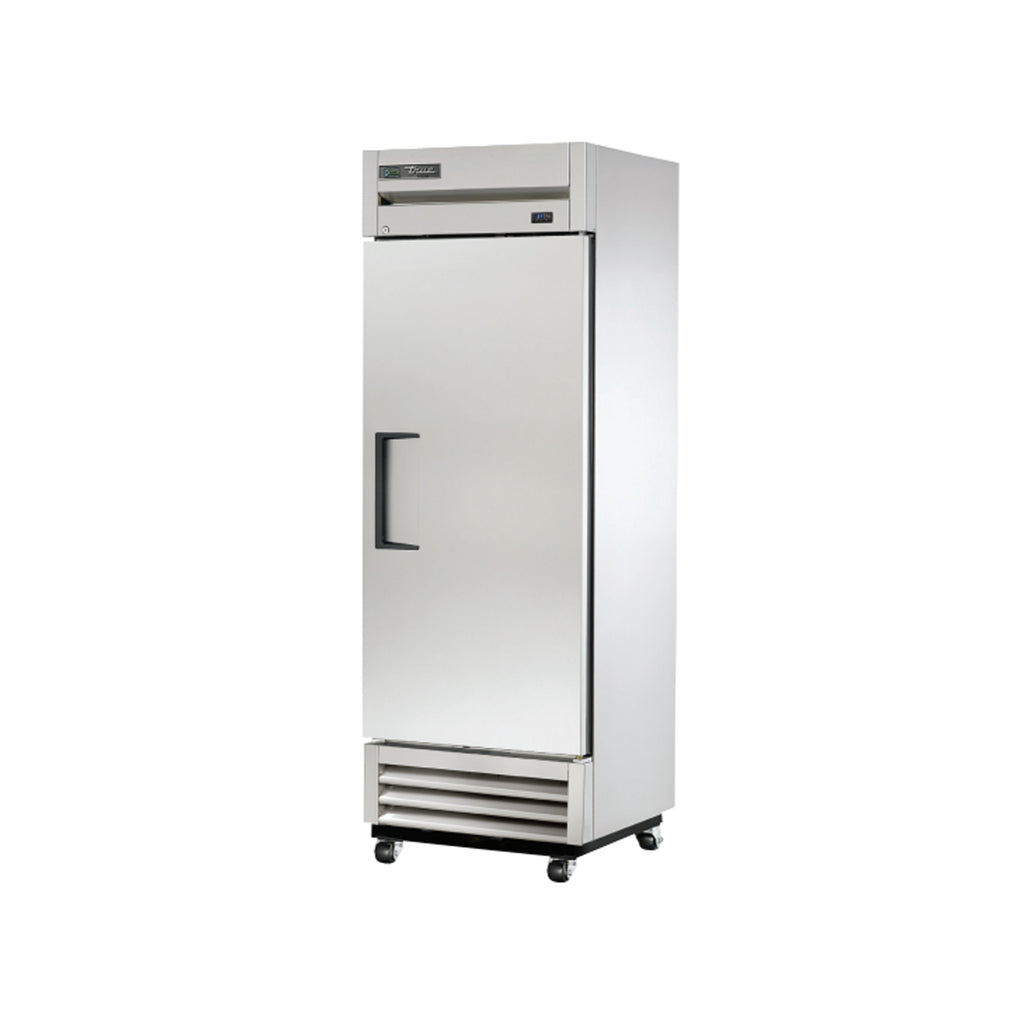

True Refrigeration T-19F-HC Description
The three shelves in the True T-19F-HC one-section reach-in freezer are PVC coated to resist corrosion and are made of wire so air can flow freely around stored items. Operators can adjust the shelves to best accommodate whatever products they are storing. LED lighting enhances visibility in the cabinet, so users can quickly find what they are looking for. Its interior has an aluminum liner that prevents rust, and its stainless steel floor can be cleaned with a swipe since it has crevice-free coved corners.
Because it is mounted in the bottom, the refrigeration system in this True T-19F-HC single-section reach-in freezer runs in the coolest area of the kitchen. Sometimes particles on the floor may be sucked into the unit, so a bottom-mounted design is not a good option for bakeries that use a lot of flour. The internal temperature stays at -10 degrees Fahrenheit and displays on an external screen. Operating in reverse mode for 20 seconds when it turns on, the condensing fan motor removes dirt, debris, and dust from the condenser coil. Because this component is so integral to system function, cleaning it regularly ensures operation is reliable and efficient. Also helping to maintain cold and consistent storage temperatures, this self-cleaning will reduce energy consumption. Even though the reversing motor lengthens the life of the unit, it doesn't completely replace routine preventative maintenance.
Product Details
- Right-hinged door opens on the left
- 3 wire shelves are PVC coated for corrosion resistance
- Shelves are adjustable in 1⁄2-in. increments
- LED interior lights enhance visibility
- Clear-coated aluminum interior liner resists corrosion and bending
- Stainless steel floor is made with coved corners to eliminate hard-to-clean crevices
- Corrosion-resistant exterior with aluminum sides, stainless steel front, and GalFan-coated steel back
- Foamed-in-place insulation prevents cold air leaks
- Stainless steel door exterior with an aluminum interior liner
- Self-closing door keeps cold air inside the cabinet
- 12-in. handle has a recessed design to save aisle space
- (4) 21⁄2-in. castors have locks on the front set
Self-contained Refrigeration System
- Maintained temperature: -10 degrees F
- External temperature display
- Uses R290 hydrocarbon refrigerant
- Evaporator and condenser fan motors are electrically commutated to move a consistent volume of air and reduce energy use
- Reversing condenser coil fan motor cleaning
- Corrosion-resistant epoxy coating on the evaporator adds durability
- Bottom mounted to operate in the coolest kitchen space
Dimensions & Utilities
- Shelves: 227⁄8 in. W x 181⁄4 in. D
- Overall: 27 in. W x 241⁄2 in. D x 781⁄2 in. H
True Refrigeration T-19F-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Also Known As | T-19F, TRUE T-19F, 890T19F, TRUT19F, T19F, 675-214 |
| Amps | 3.7 |
| Color | Silver |
| Compressor Location | Bottom |
| Depth (in) | 24.5 |
| Door Design | Full |
| Door Type | Solid |
| Exterior Construction | Stainless Steel |
| Height (in) | 78.5 |
| Hertz | 60 |
| Interior Construction | Aluminum |
| Sections | 1 |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Reach In |
| Voltage | 115 |
| Warranty | 3 years parts & labor/7 year compressor |
| Width (in) | 27 |
| Series | T Series |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Rating | Better |
| Product | Reach-In Freezers |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Hinge Configuration | Right |
| Weight | 265.00 |
