Description

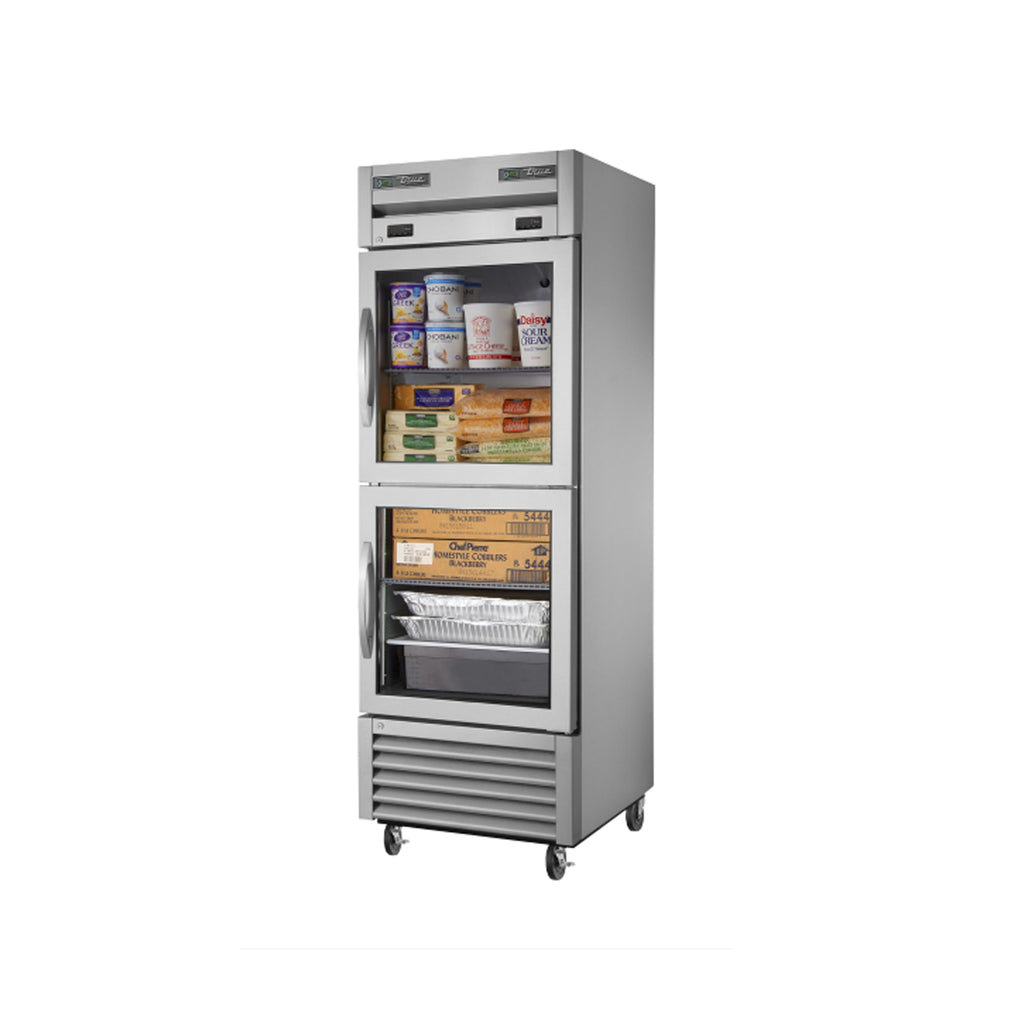

True Refrigeration T-23DT-G-HC~FGD01 Description
Ideal for use in fast-paced, compact kitchens, the True T-23DT-G-HC~FGD01 one-section refrigerator/freezer functions as both freezer and refrigerator. Using two independent, self-contained capillary systems, the refrigerator portion maintains temperatures at 33 to 38 degrees Fahrenheit while the freezer holds product at -10 degrees Fahrenheit. Each half door is made of double-paned, thermal glass for excellent chill retention, and its stainless steel front resists dents, scratches, and rust. So that operators can wheel it away for maintenance or relocation, this unit is mounted on 4-inch castors.
To offer a clear view of the interior and ease product retrieval, the True T-23DT-G-HC~FGD01 reach-in refrigerator/freezer is equipped with LED lighting. Operators can store product on three wire shelves coated in PVC to ensure strength and longevity. This unit is insulated with foamed-in-place polyurethane and cools with eco-friendly R290 hydrocarbon refrigerant.
The fan motor reverses direction for 20 seconds after the compressor starts, blowing dust and debris off the condensing coil. This self-cleaning feature increases the unit's lifespan and helps keep stored product cold. Although the coil is cleaned automatically, routine maintenance is still recommended.
Product Details
- 1 section
- Refrigerator/freezer combo
- Reach-in model
- LED lighting illuminates interior
- 3 adjustable shelves made of PVC-coated wire
- Clear-coated aluminum interior with stainless steel floor
- Aluminum sides and stainless steel front resist scratching and denting
- 2 double-paned, thermal glass half doors
- 1-piece, magnetic door gaskets
- 4-in. castors facilitate transportation
- Foamed-in-place polyurethane insulation retains cold air
- 2 independent, self-contained capillary tube systems
- Reverse condensing fan motor blows excess dirt from the condensing coil
- R290 hydrocarbon refrigerant minimizes environmental impact
- Refrigerator temperature holding range: 33-38 degrees F
- Freezer portion holds product at -10 degrees F
Dimensions & Utilities
- 27 in. W x 293⁄4 in. D x 783⁄8 in. H
- 6.3 A, 1⁄10 HP (freezer), 11⁄2 HP (refrigerator)
- 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-15P plug
True Refrigeration T-23DT-G-HC~FGD01 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Access | Door |
| Color | Silver |
| Compressor Location | Bottom |
| Cubic Feet | 19 |
| Depth (in) | 31.13 |
| Door Design | Half |
| Door Type | Glass |
| Height (in) | 83.38 |
| Hertz | 60 |
| Interior Material | Aluminum |
| Sections | 1 |
| Shelving Type | Wire |
| Supports | Casters |
| Thermometer Type | Digital |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 7-year Compressor |
| Width (in) | 27 |
| Series | T Series |
| Phase | 1 |
| Product | Refrigerator Freezers |
| Made in USA | Yes |
| Made in USA | Yes |
| Product Type | Commercial Refrigeration |
| Hinge Configuration | Left |
| Weight | 380.00 |
