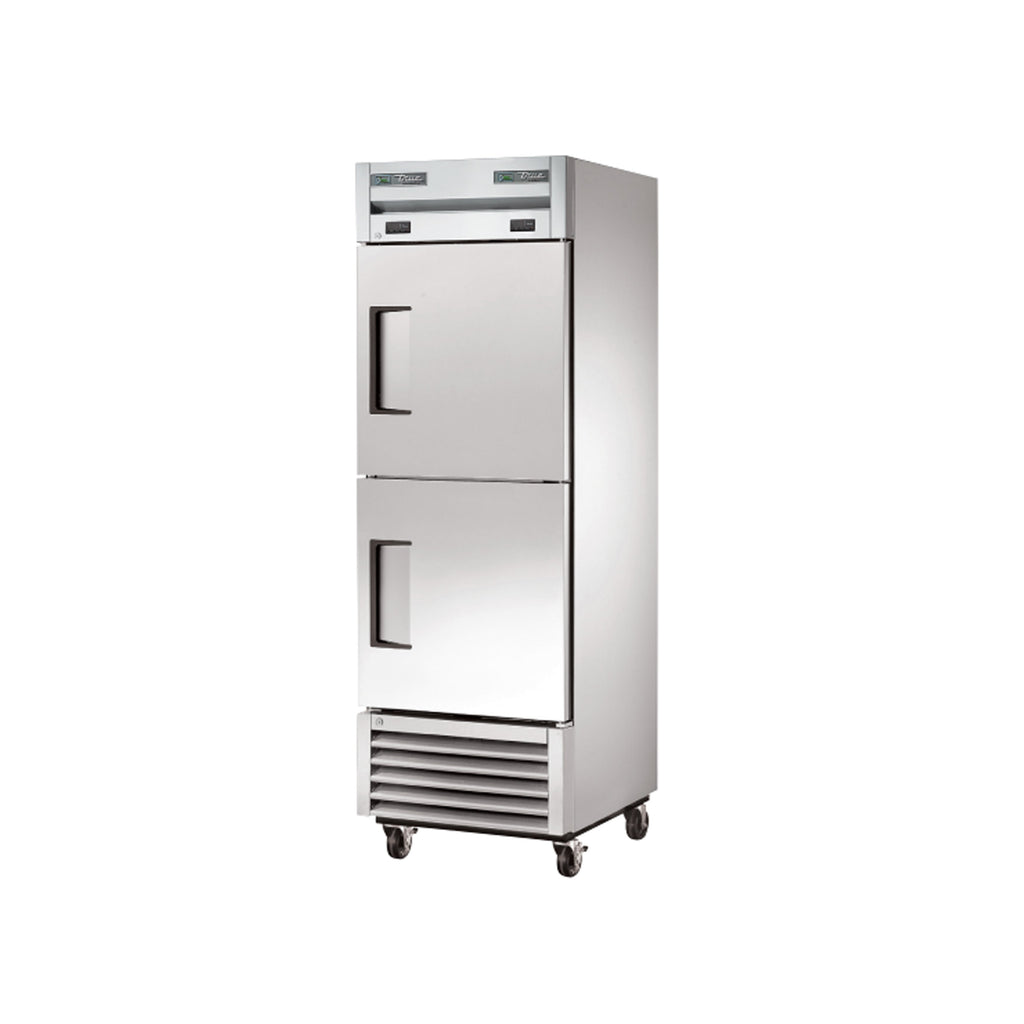

True T-23DT-HC, Commercial 27" Commercial Reach-In Refrigerator Freezer Solid Doors

This True T-23DT-HC dual-temperature refrigerator freezer is ideal for establishments that need both units and have a small footprint to fill. While the lower freezer section maintains -10 degrees Fahrenheit, the refrigerated section on top maintains a temperature range from 33 to 38 degrees Fahrenheit. These temperatures are controlled by R290 hydrocarbon refrigerant through a capillary tube system, and air is evenly distributed by condenser and evaporator fan motors.

Blowing off excess dust and debris, the condensing fan motor reverses for 20 seconds upon compressor start up to clean the condensing coil. A clean coil operates using less energy and provides an accurate product temperature. To ensure maximum effectiveness, routine preventative maintenance should still be performed.

Each interior section of the T-23DT-HC refrigerator freezer is lined with clear-coat aluminum. Both floors are made of stainless steel with coved corners, and the entire unit is NSF/ANSI Standard 7 compliant for holding open foods. To provide visibility, each section has LED interior lights, while product is stored on three adjustable, PVC-coated shelves. Both doors are hinged on the right, so they open on the left, and there are two solid, right-hinged doors.

Product Details

• 2 solid, right-hinged half doors
• Stainless steel door exterior
• Aluminum door liners are made of the same clear-coated aluminum as cabinet liner
• Torsion-type closure system prevents doors from being inadvertently left open
• Door locks protect contents while equipment is left unattended
• Recessed door handles measure 12 in. long and are foamed in place with a sheet metal interlock for permanent attachment
• Magnetic door gaskets are constructed of one piece and removable without tools
• Exterior is built with a stainless steel front for durability and corrosion resistance
• Cabinet interior is lined with clear-coat aluminum
• Stainless steel floor has coved corners to simplify cleaning
• Cabinet is insulated with foamed-in-place polyurethane
• Black, powder-coated steel frame is welded for durability
• 4-in. stem castors are fitted to frame rail and the front pair lock
• Freezer frame and door are fitted with low-wattage heater to prevent condensation
• 3 gray PVC-coated shelves hold product
• Shelves are adjustable on support pilasters in ¹⁄₂-in. increments
• LED interior lights provide visibility

Self-contained Refrigera

tion Systems

• Dual-temperature unit with refrigerator top section and freezer bottom section
• Two self-contained capillary tube systems maintain each section's temperature
• Refrigerator temperature range: 33-38 degrees F
• Freezer operating temperature: -10 degrees F
• Exterior temperature displays indicate the holding temperature of each section
• Uses R290 hydrocarbon refrigerant
• Electronically commutated fan motors move a consistent volume of air through the cabinet to evenly cool compartments
• Freezer defrosts automatically with a time-initiated, temperature-terminated system
• Evaporators are epoxy coated for corrosion protection

Dimensions & Utilities

• Shelves: 22⁷⁄₈ in. W x 23¹⁄₄ in. D
• Overall: 27 in. W x 30¹⁄₃ in. D x 83³⁄₈ in. H
• 4.1 A, ¹⁄₁₀ HP refrigerator, ¹⁄₄ HP freezer
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

True Refrigeration T-23DT-HC Specifications
