Description
True Refrigeration T-23FG-HC~FGD01 Description

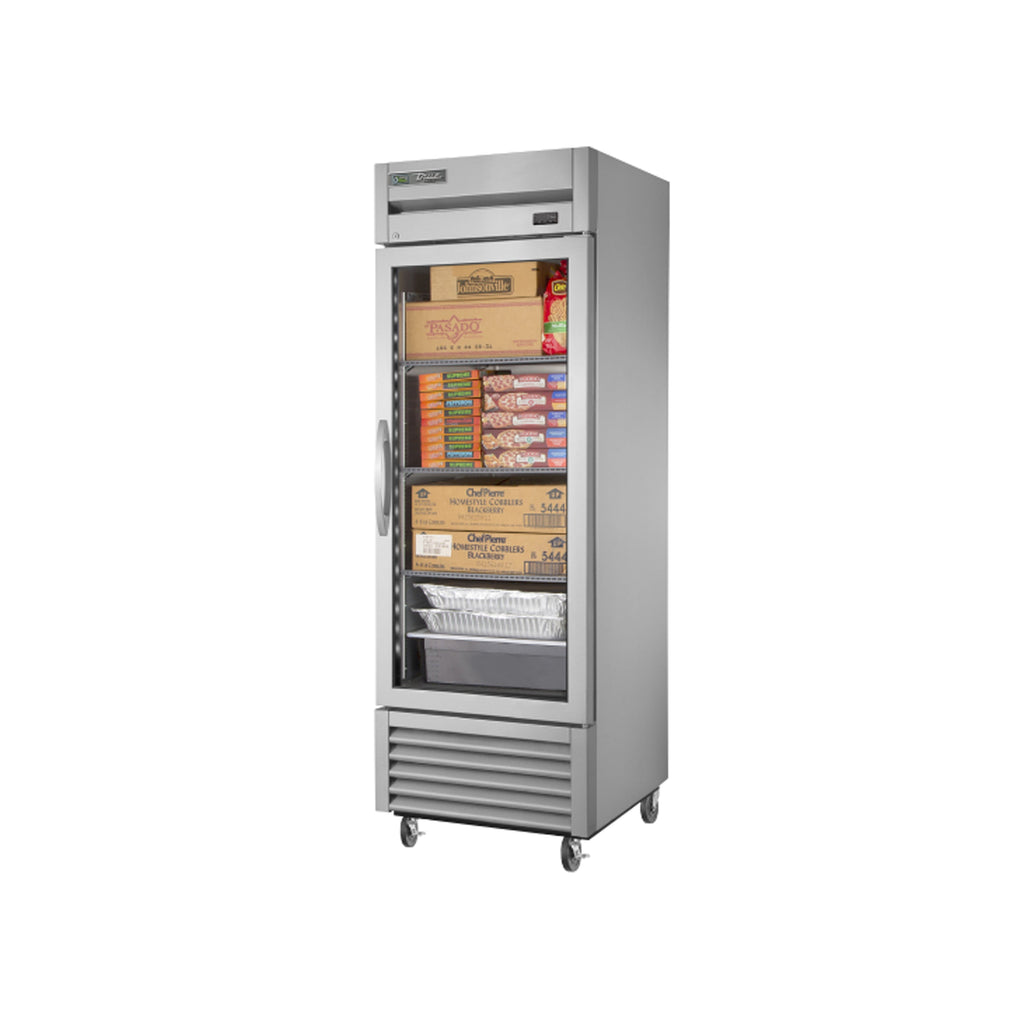

This True T-23FG-HC~FGD01 reach-in freezer maintains -10 degrees Fahrenheit with R290 hydrocarbon refrigerant, which is controlled by a capillary tube system. Large evaporator and condenser fans push high volumes of cold air through the cabinet to consistently cool products, while rear guards keep product out of the way of airflow. An automatic defrost system turns on at a specific time and shuts off at a specific temperature.
This unit's reverse condensing fan motor technology helps clean off buildup from a condensing coil. Over time, dirt, dust, and debris can inhibit coil operation, and this 20-second blowing mechanism can help eliminate damaging collection for improved operation. Despite this mechanism's efficiency, users should continue to practice preventative maintenance on the condensing coil.
This reach-in includes three PVC-coated shelves that are adjustable in 1⁄2-inch increments along cabinet pilasters to accommodate various product sizes. Resisting stains and scratches, the interior of the True T-23FG-HC~FGD01 one-section freezer is finished with a clear coat over aluminum, and stainless steel floors have coved corners to simplify cleanup since debris does not get trapped. To open on the right, the glass door is left hinged.
Product Details
- 1 left-hinged glass door opens on the right
- Door lock protects valuable products
- 15-in. extruded aluminum handle provides interior access
- 1-piece door gasket snaps in magnetically and can be removed without tools
- Stainless steel front and aluminum top, back, and sides
- Cabinet interior is finished with clear coat over aluminum
- Interior floor is made of stainless steel with coved corners
- Foamed-in-place polyurethane insulation retains cold air
- Black powder-coated frame rail is built for a long service life
- 4-in. castors are fitted to rail for mobility
- 3 wear-resistant, PVC-coated shelves adjust in 1⁄2-in. increments
- LED lights illuminate the interior
- Airflow guards prevent product from obstructing airflow
Refrigeration System
- Operating temperature: -10 degrees F
- Exterior-mounted temperature dial displays interior temperature
- Epoxy-coated evaporator is corrosion resistant
- Capillary tube system controls refrigerant flow
- Uses R290 hydrocarbon refrigerant
- Large evaporator and condenser fan motors consistently move air in the cabinet
- Condensing fan motor blows in a reverse direction for 20 seconds upon start up
- Bottom-mount condensing unit is accessible
- Defrost system initiates automatically on a timer and terminates when it detects the proper temperatures
Dimensions & Utilities
- Shelves: 227⁄8 in. W x 231⁄4 in. D
- Overall: 27 in. W x 311⁄4 in. D x 833⁄8 in. H
- 6.2 A, 3⁄4 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
True Refrigeration T-23FG-HC~FGD01 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Amps | 6.2 |
| Color | Silver |
| Compressor Location | Bottom |
| Depth (in) | 31.25 |
| Door Design | Full |
| Door Type | Glass |
| Exterior Construction | Stainless Steel |
| Height (in) | 83.38 |
| Hertz | 60 |
| Interior Construction | Aluminum |
| Sections | 1 |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Reach In |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor/7-year Compressor |
| Width (in) | 27 |
| Series | T Series |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Rating | Better |
| Product | Reach-In Freezers |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Hinge Configuration | Left |
| Weight | 330.00 |
