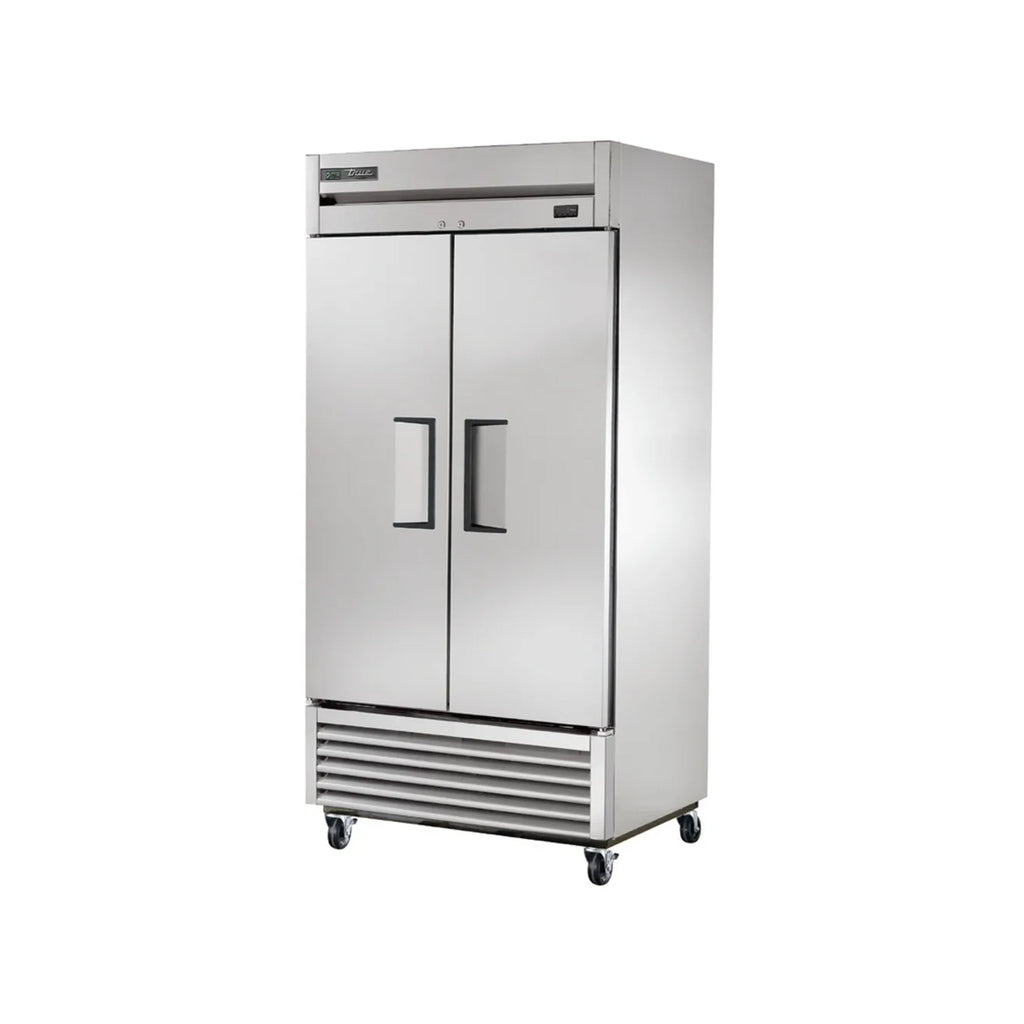

True T-35F-HC, Commercial 40" Reach-In Freezer Solid Doors 1 Section

The True T-35F-HC reach-in freezer maintains an average temperature of -10 degrees Fahrenheit, which is visible on the external digital display. Condenser and evaporator fan motors create a consistent air volume, and the evaporator is coated in epoxy to resist corrosion. Accessing the refrigeration system is convenient since it is mounted on the bottom of the cabinet, while an automatic defrost feature starts based on time and stops when the unit reaches a certain temperature.

When implemented alongside routine maintenance, the reverse condensing fan motor ensures the unit runs efficiently. It operates in reverse for 20 seconds each time the compressor starts up, blowing dirt and debris away from the condensing coil. By keeping the coil clean, the unit operates with improved interior temperatures and less energy.

Cold air is retained by polyurethane insulation, as well as the magnetic gaskets around the doors. The cabinet can be accessed through the stainless steel doors with 12-inch recessed handles, and the exterior of the cabinet is stainless steel and aluminum for strength. To simplify cleaning, the interior floor has coved corners while product sits on six PVC-coated shelves that are adjustable, accommodating a variety of items. For internal visibility, the True T-35F-HC two-section freezer has LED interior lights.

Product Details

• Stainless steel and aluminum exterior withstands heavy use
• Clear-coat aluminum interior liner
• Coved corners on the stainless steel floor prevent hard-to-clean messes
• Foamed-in-place polyurethane insulation retains cold air
• Powder-coated steel frame rail resists corrosion
• Interior aluminum liner on the stainless steel doors
• 12-in. recessed handles provide interior access
• Removable magnetic gaskets
• 6 PVC-coated shelves are adjustable
• LED interior lights highlight products

Self-contained Refrigeration System

• Maintained temperature: -10 degrees F
• Digital temperature display enables monitoring
• Capillary tube system uses R290 hydrocarbon refrigerant
• Condenser and evaporator fan motors move a consistent volume of air
• Condensing fan motor blows dirt and debris off the condensing coil
• Bottom-mount system eases servicing
• Epoxy-coated evaporator resists corrosion
• When ideal temperature is reached, automatic defrost system turns off after time-initiated start
• Start of defrost cycle turns the evaporator fan motor off

Dimensions & Utilities

• Shelves: 17¹⁄₂ in. W x 23³⁄₈ in. D
• Overall: 39¹⁄₂ in. W x 29¹⁄₂ in. D x 83³⁄₈ in. H
• 9.6 A, 1 HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
