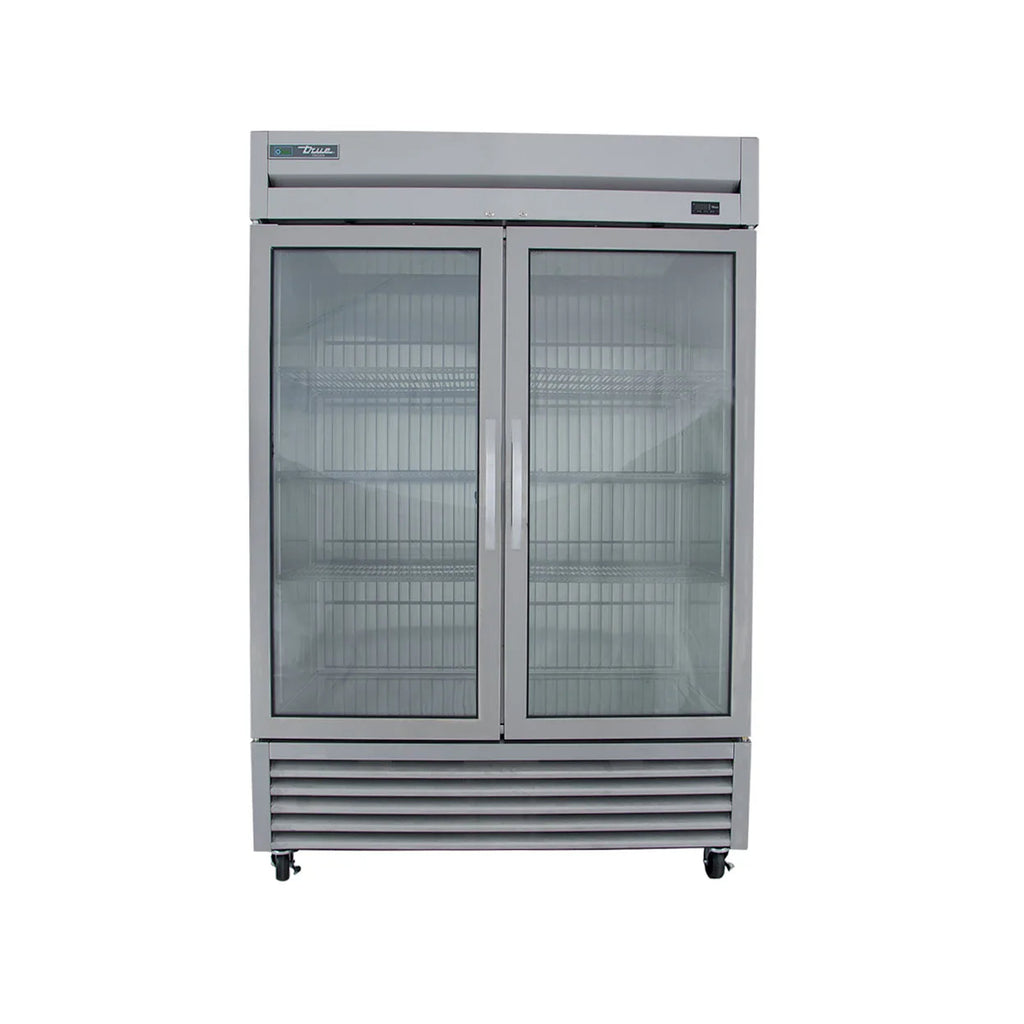

True Refrigeration T-49FG-HC~FGD01 Description
The True T-49FG-HC~FGD01 glass door freezer maintains a steady temperature of -10 degrees Fahrenheit, an ideal temperature for frozen food, and the capillary tube system controls the flow of R290 hydrocarbon refrigerant. Evaporator and condenser fan motors provide quick temperature recovery and ensure all product is chilled evenly. When the condensing fan motor in this unit starts up, it runs in its reverse mode for 20 seconds, knocking debris, dirt, and dust off the condenser coil. Because this component is integral to system function, cleaning it regularly promotes reliable and efficient operation. This self-cleaning also helps to maintain consistent and cold storage temperatures in the cabinet. Despite this reversing feature improving operation and prolonging the life of the unit, it doesn't replace all routine preventative maintenance procedures. Its refrigeration system is mounted on the bottom of the cabinet, so it is accessible for maintenance.
The cabinet is insulated with polyurethane foam for cold air retention, and the True T-49FG-HC~FGD01 two-section freezer has six PVC-coated wire shelves that can be adjusted in 1⁄2-inch increments. Its doors are made of triple-pane glass and close on their own to conserve cold air. Magnetic gaskets snap into the door frame to prevent cold air leaks while the interior is brightened with LED lights. Movement is provided with 4-inch stem castors, which have locks on the front set for stability.
Product Details
- Cabinet is insulated with polyurethane for structure
- Doors are made with triple-pane glass to prevent heat transfer
- Self-closing doors reduce cold air loss
- Magnetic door gaskets form a positive seal and are removable without tools
- Energy-efficient LED lights illuminate cabinet interior
- Heavy-duty, welded steel frame is powder-coated black for corrosion prevention
- Stainless steel front with anodized aluminum ends, top, and back
- Aluminum interior has a clear coat for protection
- Stainless steel floor with coved corners to ease cleanup
- 4-in. stem castors provide mobility
- 6 PVC-coated wires shelves adjust in 1⁄2-in. increments
- Rear airflow guards prevent held products from disrupting optimal airflow
Refrigeration System
- Self-contained capillary tube system controls the flow of R290 hydrocarbon refrigerant, which is more eco-friendly than traditional options
- Fan motors move a consistent air volume to ensure the cabinet is evenly cooled
- Reversing compressor fan motor keeps dust off condenser coil
- Condensing unit is bottom mounted to ease cleaning and maintenance
- Defrost system initiates automatically on a timer and terminates when system has reached the proper temperature
- Operating temperature: -10 degrees F
- Exterior temperature display
- Epoxy-coated evaporator is protected from damage
Dimensions & Utilities
- Shelves: 249⁄16 in. W x 223⁄8 in. D
- Overall: 541⁄8 in. W x 311⁄8 in. D x 833⁄8 in. H
- 11 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-20P plug
True Refrigeration T-49FG-HC~FGD01 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Also Known As | T49FG, T-49FG, TRUE T-49FG, TRUT49FG, 890T49FG, 675-256, T-49FG-LD |
| Amps | 9.5 |
| Color | Silver |
| Compressor Location | Bottom |
| Depth (in) | 31.13 |
| Door Design | Full |
| Door Type | Glass |
| Exterior Construction | Stainless Steel |
| Height (in) | 83.38 |
| Hertz | 60 |
| Interior Construction | Aluminum |
| Sections | 2 |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Reach In |
| Voltage | 115 |
| Warranty | 3 years parts & labor/7 year compressor |
| Width (in) | 54.13 |
| Series | T Series |
| Refrigerant | R290 (Hydrocarbon) |
| Phase | 1 |
| Rating | Better |
| Product | Reach-In Freezers |
| Product Type | Commercial Refrigeration |
| NEMA | 5-20P |
| Hinge Configuration | Left/Right |
| Weight | 650.00 |
