Description
True Refrigeration TBB-24-72G-HC-LD Description

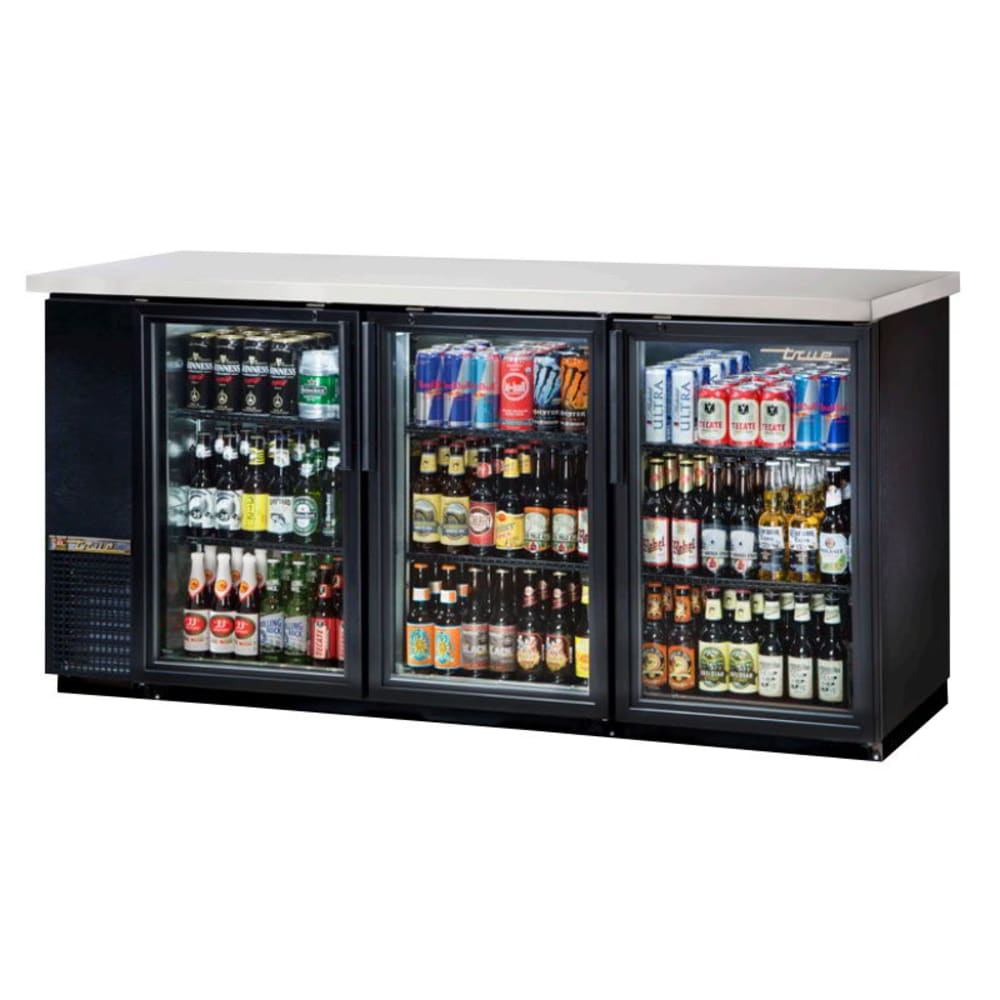

The True TBB-24-72G-HC-LD three-section bar refrigerator has three glass doors that can be used to merchandise products in customer-facing applications. LED lights shine on product to enhance visibility as it sits on six adjustable PVC-coated shelves. This unit can accommodate 105 six-packs of 12-ounce cans or three half-barrel kegs when the shelves are removed. Surfaces in the cabinet are stainless steel and steel coated to resist rusting. To prevent damage when loading product, a door threshold protector is built into the unit.
In addition to a black laminate vinyl exterior, this unit has a stainless steel countertop that can be used as a work station or a place to hold the register. Structure is added by the steel frame rail, and cold air stays inside due to foamed-in-place polyurethane insulation.
To maintain a clean condensing coil surface, the condensing fan motor blows air at the coil for 20 seconds when the unit's compressor is turned on. This consistent cleaning helps remove unwanted buildup, permitting the coil to work efficiently; it can keep products cool for longer periods with less energy usage. Though this method is effective, users should continue to carry out preventive maintenance on the coil and other components. A capillary tube system sends R290 hydrocarbon refrigerant through the True TBB-24-72G-HC-LD three-section back bar cooler so that it maintains a user-set temperature between 33 and 38 degrees Fahrenheit. For cleaning or servicing, the condenser can be reached by sliding it out from behind the grille.
Product Details
- Can accommodate (105) 6-packs of 12-oz. cans or 3 half-barrel kegs
- 6 PVC-coated wire shelves are adjustable in 1⁄2-in. increments
- Capillary tube system uses R290 hydrocarbon refrigerant
- Temperature holding range: 33-38 degrees F
- Consistent amount of air is produced by the condenser and evaporator fan motors
- Reverse condensing fan motor technology turns on when compressor starts up
- Epoxy-coated, corrosion-resistant evaporator
- Front grille comes out to provide access to the refrigeration system
- Products are visible with LED interior lights
Heavy-duty Construction
- Resists chipping and peeling with its laminated black vinyl exterior
- Interior floor is stainless steel for quick cleanup
- Door threshold protector reduces the risk of damage from loading and unloading product
- High-density polyurethane insulation retains cold air
- Structure is added through the steel frame rail
- Reduce the risk of cold air leaking out with magnetic gaskets
- 3 swing doors each have a 12-in. extruded aluminum handle
- Glass doors enable users to see product without releasing cold air
- Prevent tampering with door locks
Dimensions & Utilities
- Right and left shelves: 19 in. W x 161⁄4 in. D
- Center shelves: 195⁄8 in. W x 161⁄4 in. D
- Overall: 731⁄8 in. W x 267⁄8 in. D x 355⁄8 in. H
- 2.7 A, 1⁄4 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
True Refrigeration TBB-24-72G-HC-LD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Base | Frame |
| Color | Black |
| Compressor Location | Left |
| Depth (in) | 26.88 |
| Door Design | Swing |
| Door Type | Glass |
| Height (in) | 35.63 |
| Hertz | 60 |
| Number of Levels | 3 |
| Special Features | Door Locks |
| Special Features | LED Lighting |
| Thermometer Type | Digital |
| Voltage | 115 |
| Warranty | 3 year parts & labor; 7 year compressor |
| Width (in) | 73.13 |
| Series | TBB Series |
| Refrigerant | R290 (Hydrocarbon) |
| No. of Doors | 3 |
| Phase | 1 |
| Rating | Better |
| Product | Back Bar Coolers |
| Product Type | Commercial Refrigeration |
| Weight | 410.00 |
