Description

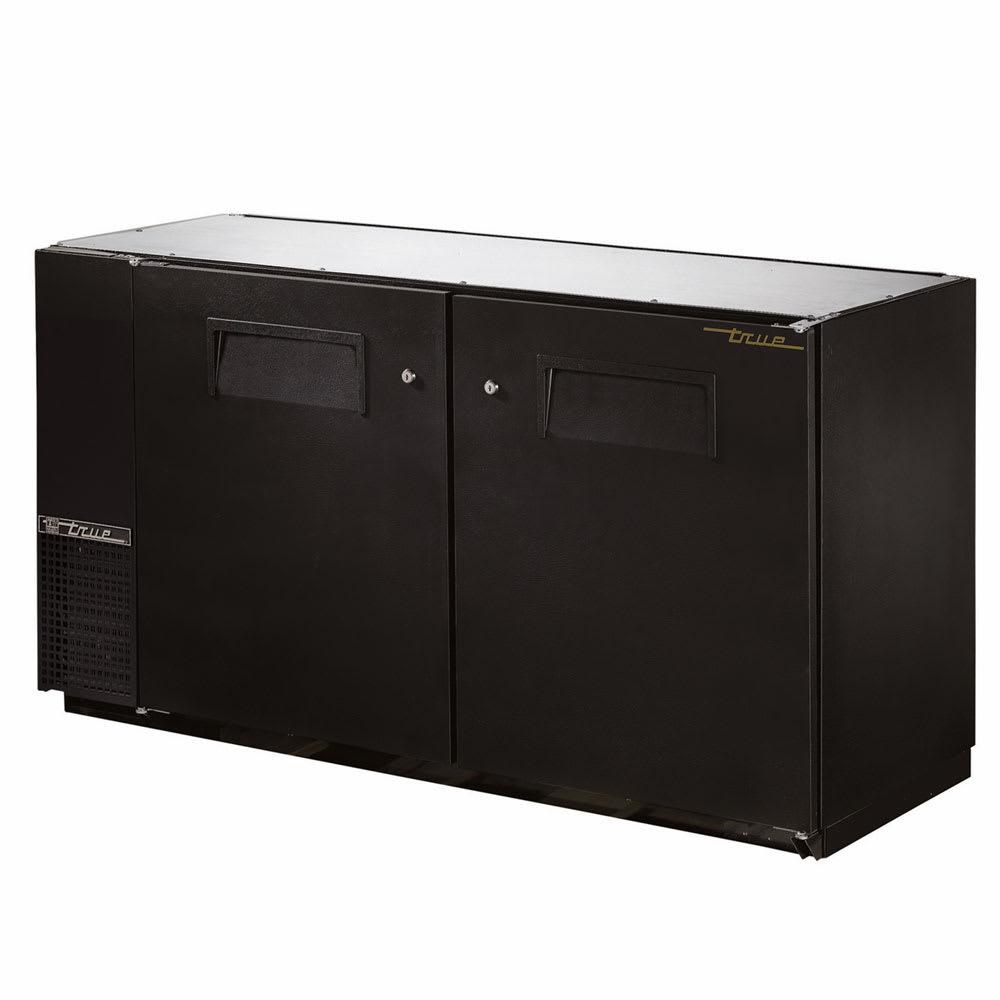

True Refrigeration TBB-24GAL-60-HC Description
The True TBB-24GAL-60-HC bar refrigerator has a self-contained capillary tube system that uses R290 hydrocarbon refrigerant to maintain a set temperature from 33 to 38 degrees Fahrenheit. This unit accepts three half barrel kegs or 72 six-packs of 12-ounce cans. Product sits on four adjustable shelves and is made visible with LED interior lights. Made of galvanized steel, the interior is resistant to dents, and its stainless steel floor can be cleaned quickly.
The exterior has an aluminum rear and a black laminate vinyl coating that resists scratches and stains. Its steel frame and foamed-in-place polyurethane insulation add structure, while a door threshold protector prevents damage when loading kegs in the cabinet. The True TBB-24GAL-60-HC bar refrigerator has two doors with 12-inch recessed handles and removable magnetic gaskets that prevent cold air from escaping.
When the compressor starts up, the condensing fan motor directs air toward the condensing coil for 20 seconds, removing buildup of dirt and dust from the condensing coil. This self-cleaning mechanism encourages the coil to work more efficiently, using less energy while keeping products cool. Designed to work with preventive maintenane, this feature can incrase the unit's overall lifespan.
Product Details
- Holds (72) 6-packs of 12-oz. cans or 3 half-barrel kegs
- 4 black, PVC-coated wire shelves
- Black laminated vinyl exterior hides scratches and stains
- Stainless steel interior floor facilitates cleaning
- Interior galvanized steel walls resist scratches
- 2 doors have 12-in. recessed handles
- Removable
- 1-piece magnetic gaskets around the doors prevent cold-air leaks
- Door threshold protector helps prevent dents
- Foamed-in-place insulation retains cold air
- Steel frame rail adds structure
- LED interior lights provide visibility
Side-mount Refrigeration System
- Epoxy-coated evaporator resists corrosion
- Self-contained capillary tube system uses R290 hydrocarbon refrigerant
- Temperature holding range: 33-38 degrees F
- Condenser and evaporator fan motors move a consistent amount of air
- 20-second reverse condensing fan motor technology removes debris from condensing coil
- Accessible slide-out condensing unit
Dimensions & Utilities
- Shelves: 233⁄4 in. W x 18 in. D
- Overall: 597⁄8 in. W x 243⁄4 in. D x 341⁄4 in. H
- 2.7 A, 1⁄4 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
True Refrigeration TBB-24GAL-60-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Base | Frame |
| Color | Black |
| Compressor Location | Left |
| Depth (in) | 24.75 |
| Door Design | Swing |
| Door Type | Solid |
| Height (in) | 34.25 |
| Hertz | 60 |
| Number of Levels | 3 |
| Special Features | Door Locks |
| Special Features | LED Lighting |
| Thermometer Type | Digital |
| Voltage | 115 |
| Warranty | 3 years parts & labor/7 year compressor |
| Width (in) | 59.88 |
| Series | TBB Series |
| Refrigerant | R290 (Hydrocarbon) |
| No. of Doors | 2 |
| Phase | 1 |
| Rating | Better |
| Product | Back Bar Coolers |
| Product Type | Commercial Refrigeration |
| Weight | 320.00 |
