Description
True Refrigeration TBB-24GAL-60G-S-HC-LD Description

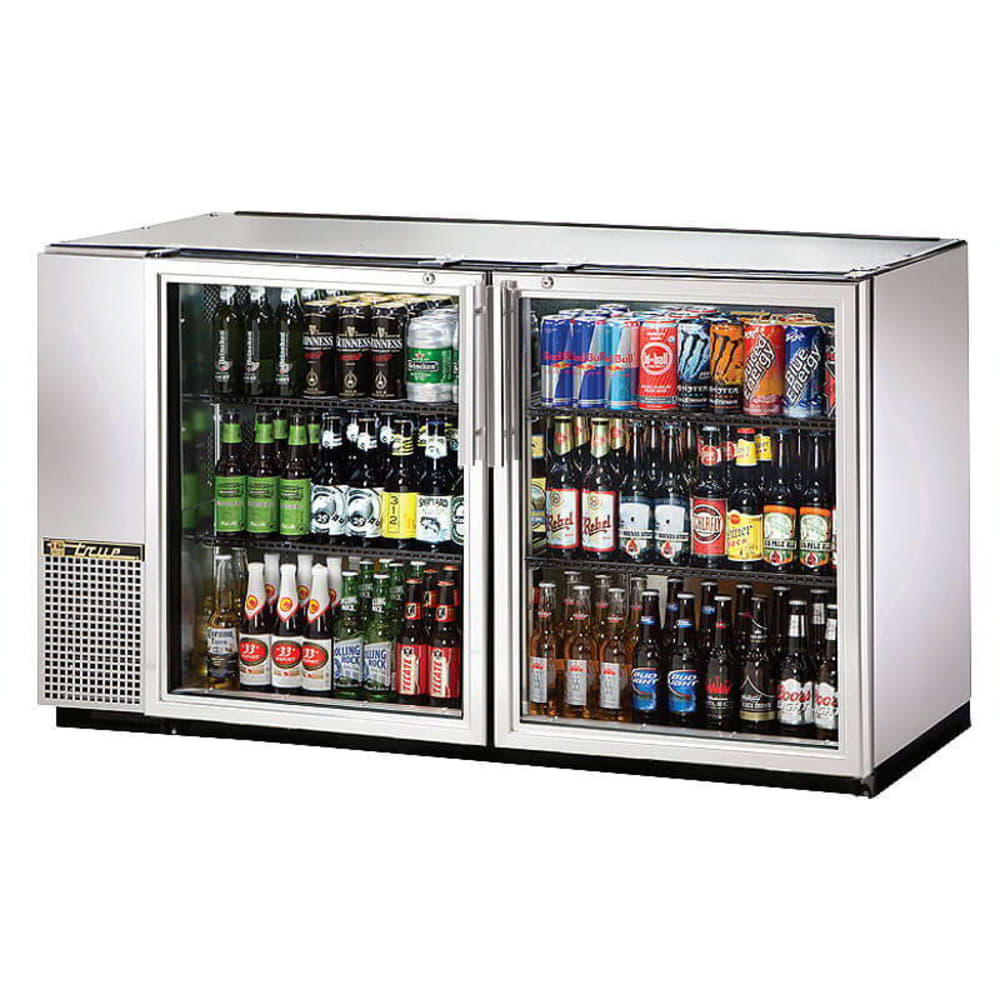

The True TBB-24GAL-60G-S-HC-LD back bar cooler is durable due to its galvanized stainless steel top and stainless steel front and sides. Dual-paned, low-e glass doors offer product visibility and temperature retention, both featuring a 12-inch-long handle that is recessed to avoid sticking into the aisle. Magnetic gaskets snap into each door frame to prevent cold air from leaking out, and built-in locks prevent theft and tampering. Inside the cabinet, four PVC-coated wire shelves hold bottles and cans.
This True TBB-24GAL-60G-S-HC-LD back bar cooler uses R290 hydrocarbon refrigerant and a self-contained capillary tube system to keep the interior temperature at a set level between 33 and 38 degrees Fahrenheit. Its condenser slides out for convenient access during maintenance and cleanup. Coated in epoxy, the evaporator is resistant to corrosion. To consistently distribute air, the condenser and evaporator fan motors are electronically commutated, producing less heat than other motors.
Designed to improve overall condensing coil efficiency to reduce energy use, the condensing fan motor blows air in an opposite direction for 20 seconds when the compressor starts up. This helps remove buildup of dirt and dust. A clean coil managed with consistent preventive maintenance can keep products cool for longer periods, and it can also increase the unit's usable lifespan.
Product Details
- Holds (72) 6-packs of 12-oz. cans or 3 half-barrel kegs
- 4 black, PVC-coated wire shelves, each with 4 chrome-plated shelf clips
- LED lights require less maintenance than incandescent lights
- 2 low-e, dual-pane thermal glass doors keep warm air out
- 12-in.-long recessed door handles do not stick out into the aisle
- Magnetic gaskets snap into the door frame to prevent cold-air leaks
- Door locks minimize theft and tampering
Cabinet Construction
- Stainless steel front and sides with aluminum back
- Galvanized stainless steel top is resistant to rust and corrosion
- 1⁄2-in.-thick stainless steel floor and heavy-gauge galvanized steel walls
- Threshold protector helps reduce scratches in the cabinet interior from loading and unloading
- High-density polyurethane insulation is foamed in place
- Frame rail is black powder coated to resist corrosion
Refrigeration System
- Temperature holding range: 33-38 degrees F
- Uses R290 hydrocarbon refrigerant and capillary tube system for cooling
- Condenser is accessible behind the front plate and slides out for cleaning and maintenance
- Electronically commutated condenser and evaporator fan motors efficiently circulate air
- Fan motor blows in an opposite direction for 20 seconds to eliminate debris from condensing coil's surface
- Evaporator is coated with epoxy to resist corrosion
Dimensions & Utilities
- Shelves: 233⁄4 in. W x 18 in. D
- Overall: 597⁄8 in. W x 265⁄8 in. D x 341⁄4 in. H
- 2.7 A, 1⁄4 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
True Refrigeration TBB-24GAL-60G-S-HC-LD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Base | Frame |
| Color | Silver |
| Compressor Location | Left |
| Depth (in) | 26.63 |
| Door Design | Swing |
| Door Type | Glass |
| Height (in) | 34.25 |
| Hertz | 60 |
| Number of Levels | 3 |
| Special Features | Door Locks |
| Special Features | LED Lighting |
| Thermometer Type | Digital |
| Voltage | 115 |
| Warranty | 3 years parts & labor/7 year compressor |
| Width (in) | 59.88 |
| Series | TBB Series |
| Refrigerant | R290 (Hydrocarbon) |
| No. of Doors | 2 |
| Phase | 1 |
| Rating | Better |
| Product | Back Bar Coolers |
| Product Type | Commercial Refrigeration |
| Weight | 340.00 |
