Description
True Refrigeration TBB-24GAL-72-S-HC Description

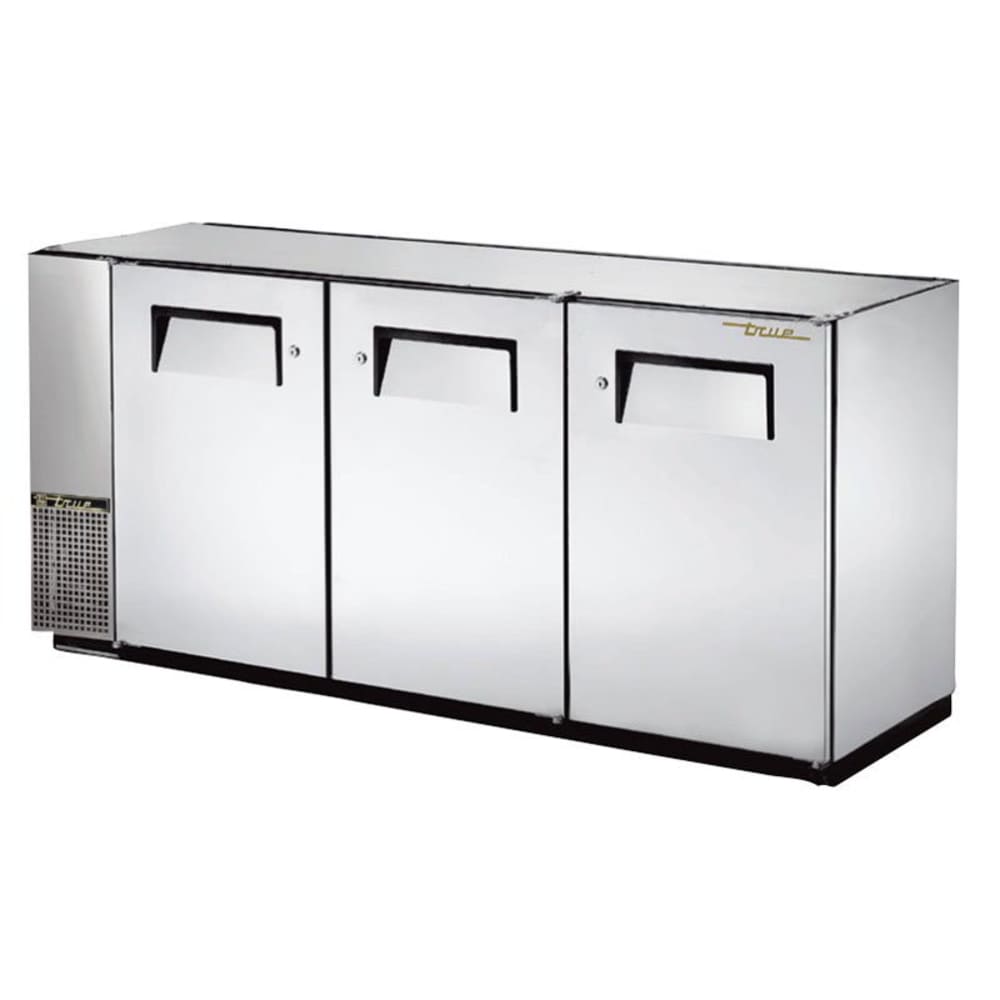

This True TBB-24GAL-72-S-HC three-section back bar cooler's refrigeration system ensures cabinet temperatures stay at precise settings between 33 and 38 degrees Fahrenheit. Its self-contained capillary tube system uses R290 hydrocarbon refrigerant and controls the flow to maintain cool temperatures. Even airflow is provided by the fan motors moving a consistent amount of air throughout the cabinet. The condensing unit is accessible behind the front grille.
Each time the compressor turns on, the condensing fan motor blows in reverse for 20 seconds to clean off debris from the condensing coil. A consistently clean coil can operate more efficiently, keeping products cool with less energy use. It can also help increase the unit's overall lifespan. Though this automatic mechanism is effective, it should work alongside preventive maintenance to ensure the coil is working correctly over time.
This back bar cooler is designed to hold three half-barrel kegs or 84 six-packs of 12-ounce cans. The unit has stainless steel front and sides with a matching aluminum back to withstand heavy use. The interior floor is made of stainless steel for quick cleanup, and its interior walls are constructed of heavy-gauge galvanized steel. The True TBB-24GAL-72-S-HC bar refrigerator gains structure from foamed-in-place polyurethane insulation.
Product Details
- Accepts (84) 6-packs of 12-oz. cans or 3 half-barrel kegs
- Kegs will fit inside the cabinet when shelves are removed
- Stainless steel exterior with matching aluminum back is strong and bend resistant
- Galvanized steel top is designed to slide under existing counters
- Stainless steel interior floor and galvanized steel walls
- Damage from loading and unloading product is resisted by the door threshold protector
- Insulated with polyurethane foam for structure
- Welded steel frame rail is black powder coated to resist corrosion
- 3 stainless steel doors with galvanized steel liner
- 12-in.-long door handles are recessed to save aisle space
- Magnetic door gaskets seal cold air inside
- Door locks prevent theft and tampering
- 4 black, PVC-coated wire shelves adjustable in 1⁄2-in. increments
- LED interior lighting is safety shielded
Refrigeration System
- Electronically commutated condenser and evaporator fan motors consistently circulate air
- Condensing coil debris buildup is removed with automatic condensing fan motor mechanism
- Condensing unit slides out for maintenance
- Epoxy-coated evaporator resists corrosion
- Self-contained capillary tube system meters R290 hydrocarbon refrigerant
- Temperature holding range: 33-38 degrees F
Dimensions & Utilities
- 2 left and center shelves: 40 in. W x 18 in. D
- 2 right shelves: 193⁄8 in. W x 18 in. D
- Overall: 717⁄8 in. W x 243⁄4 in. D x 341⁄4 in. H
- 2.7 A, 1⁄4 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
True Refrigeration TBB-24GAL-72-S-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Base | Frame |
| Color | Silver |
| Compressor Location | Left |
| Depth (in) | 24.75 |
| Door Design | Swing |
| Door Type | Solid |
| Height (in) | 34.25 |
| Hertz | 60 |
| Number of Levels | 3 |
| Special Features | Door Locks |
| Special Features | LED Lighting |
| Thermometer Type | Digital |
| Voltage | 115 |
| Warranty | 3 years parts & labor/7 year compressor |
| Width (in) | 71.88 |
| Series | TBB Series |
| Refrigerant | R290 (Hydrocarbon) |
| No. of Doors | 3 |
| Phase | 1 |
| Rating | Better |
| Product | Back Bar Coolers |
| Product Type | Commercial Refrigeration |
| Weight | 405.00 |
