Description
True Refrigeration TFP-48-18M-D-2 Description

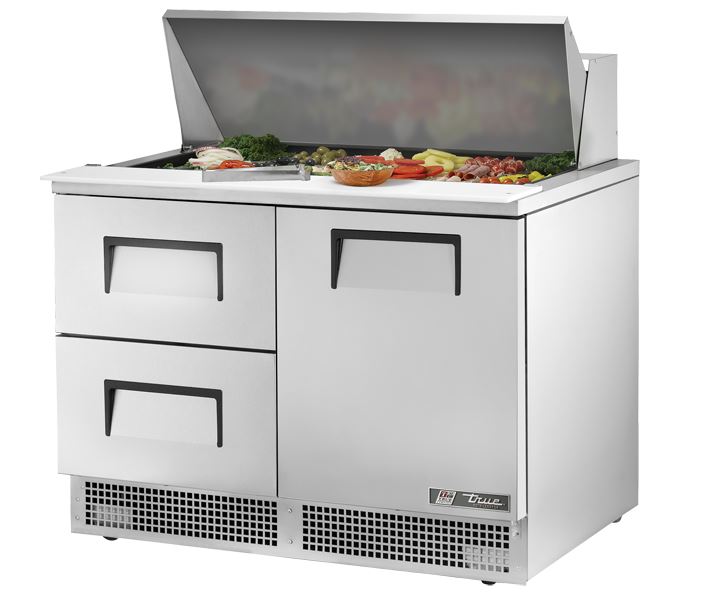

This True TFP-48-18M-D-2 prep table includes a cabinet section with a solid door in addition to two drawer compartments, and inside the door section are two PVC-coated wire shelves that can be adjusted in 1⁄2-inch increments. Each of the stainless steel drawers accommodate a full size food pan in addition to three ninth-size pans, and the drawers move on a rollers-and-slides system to ensure smooth operation.
The top of this refrigerated prep table can accommodate several food pan combinations, though it includes standard 18 sixth-size pans. Contents of those pans are held at a set temperature between 33 and 41 degrees Fahrenheit while a stainless steel, foam-insulated lid can be closed over the pans when they are not needed to maintain energy efficiency and keep contents fresh. High-density polyurethane foam insulates the cabinet, and magnetic gaskets seal the drawers. A dense, polyethylene cutting board runs the 48-inch length of the TFP-48-18M-D-2 prep table to provide a sanitary work surface. Castors help the unit move for cleaning, and two of the castors lock for stability.
Product Details
- Capillary tube system uses R134A refrigerant
- Temperature holding range: 33-41 degrees F
- Condensing unit can be slid from the cabinet's rear to give technicians component access
- Electronic controls
- Wire shelves adjust in 1⁄2-in. increments
- Each shelf is coated in PVC for heavy use
- Castors enable movement
Cabinet Construction
- Cabinet exterior is finished with a stainless steel top, front, and ends
- Interior of cabinet is made of a clear-coated aluminum liner and a stainless steel floor with coved corners
- Foamed-in-place polyurethane insulates the cabinet
- Drawers are built with stainless steel facings, liners, and frames
- 12-in. recessed handles are permanently attached
- 1-piece gaskets fit door and drawers and are removable without tools for cleaning
- Each drawer can hold 1 full-size pan and (3) 1⁄9-size pans
Prep Area
- Includes (18) 1⁄6-size polycarbonate food pans measuring 67⁄8 in. L x 61⁄4 in. W x 4 in. D
- Accommodates different combinations of pan sizes with sold-separately adapters
- Insulated lid maintains temperatures when closed and prevents condensation
- Width of unit is fitted with an 8-in.-deep white polyethylene cutting board
Dimensions & Utilities
- Shelves: 211⁄5 in. W x 20 in. D
- Overall: 481⁄8 in. W x 331⁄2 in. D x 461⁄2 in. H
- 2.9 A, 1⁄5 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
True Refrigeration TFP-48-18M-D-2 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Cutting Board Depth (in) | 8 |
| Depth (in) | 33.5 |
| Door Type | Solid |
| Front Access | Door/Drawer |
| Height (in) | 46.5 |
| Hertz | 60 |
| Number of Drawers | 2 |
| Sections | 2 |
| Type | Mega Top |
| Use | Sandwich/Salad |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Compressor |
| Width (in) | 48.13 |
| Series | TFP Series |
| Refrigerant | R-134a |
| No. of Doors | 1 |
| Phase | 1 |
| Rating | Better |
| Product | Prep Tables |
| Product Type | Commercial Refrigeration |
| Hinge Configuration | Left |
| Includes | Food Pans |
| Max Pan Depth (in) | 4 |
| Weight | 480.00 |
