Description

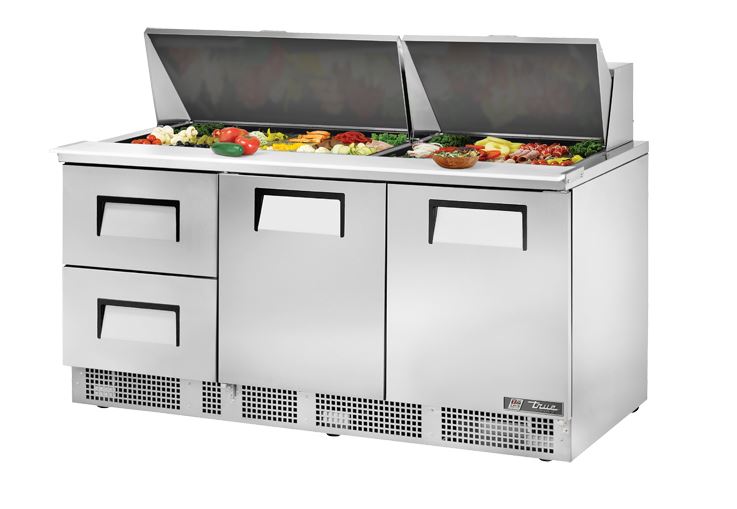

True Refrigeration TFP-72-30M-D-2 Description
The True TFP-72-30M-D-2 food prep table includes 30 clear polycarbonate pans that hold ingredients to prepare sandwiches and salads, while the white polyethylene cutting board that runs the full length of the table can be removed for cleaning and sanitizing. Each holding one full-size food pan, this model has two drawers, and two doors with four adjustable shelves are located in the door sections. For comfort the doors and drawers have 12-inch-long recessed handles, and 21⁄2-inch-diameter castors are attached to the base for transportation.
The forced-air refrigeration system in the True TFP-72-30M-D-2 prep table is powered by an efficient evaporator fan with large fan blades. To prevent corrosion, the evaporator is epoxy coated, and R134A refrigerant is used to cool the air to a set range of 33 to 41 degrees Fahrenheit. When service is needed, access to the condenser's components is available from the back of the unit. Resisting dents and corrosion, this unit is made of stainless steel and aluminum, and its walls are foamed with polyurethane insulation for structure and temperature retention.
Product Details
- Stainless steel exterior has a GalFan-coated steel back
- Interior liner is made with clear-coated aluminum
- Drawer faces, frames, slides, and rollers are constructed of durable stainless steel
- All interior corners are coved to simplify cleaning
- Stainless steel hood and lid are insulated
- Cabinet, doors, and drawer faces are insulated with high-density polyurethane
- 8-in deep, full-length cutting board is made of white polyethylene
- 2 drawers and 2 doors provide cabinet access
- Each drawer and door have a 12-in.-wide recessed handle
- Magnetic door and drawer gaskets are removable in 1 piece without tools for cleaning
- Each drawer can hold 1 full-size pan and 3 ninth-size pans (sold separately)
- Solid state electronic controls located on the back of the table
- 4 PVC-coated wire shelves can be adjusted in 1⁄2-in. increments
- Includes 30 sixth-size polycarbonate food pans
- 21⁄2-in.-diameter castors provide mobility
Refrigeration System
- Temperature holding range: 33-41 degrees F
- Capillary tube refrigeration uses R134A refrigerant
- Forced-air design uses large fan blades and an oversized evaporator
- Condensing unit components are accessible from the back of the unit
- Epoxy-coated evaporator is corrosion resistant
Dimensions & Utilities
- Pan size: 6
- ⁄
- -in. L x 6
- ⁄4-in. W x 4-in. D
- Overall: 721⁄8 in. W x 331⁄2 in. D x 461⁄2 in. H 5.1 A, 1⁄3 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
True Refrigeration TFP-72-30M-D-2 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Cutting Board Depth (in) | 8 |
| Depth (in) | 33.5 |
| Door Type | Solid |
| Front Access | Door/Drawer |
| Height (in) | 46.5 |
| Hertz | 60 |
| Number of Drawers | 2 |
| Sections | 3 |
| Type | Mega Top |
| Use | Sandwich/Salad |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Compressor |
| Width (in) | 72.13 |
| Series | TFP Series |
| Refrigerant | R-134a |
| No. of Doors | 2 |
| Phase | 1 |
| Rating | Better |
| Product | Prep Tables |
| Product Type | Commercial Refrigeration |
| Hinge Configuration | Right |
| Includes | Food Pans |
| Max Pan Depth (in) | 4 |
| Weight | 635.00 |
